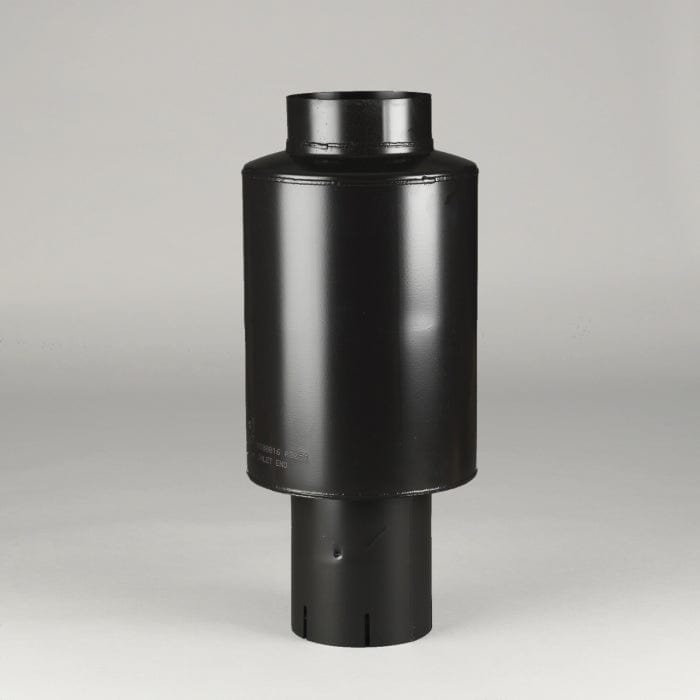

Spark Arrestor - Donaldson M100016
Spark Arrestor - Donaldson M100016
Regular price
£344.64
Regular price
Sale price
£344.64
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson M100016
Spark Arrestor| Inlet Diameter | 6.04 inch (153.39 mm) |
| Outlet Diameter | 6.04 inch (153.39 mm) |
| Body Diameter Maximum | 10.08 inch (256 mm) |
| Body Length | 13.28 inch (337.3 mm) |
| Overall Length | 23.48 inch (596.4 mm) |
Share
Collapsible content
Specifications
Attributes
- Inlet Diameter: 153.39 mm (6.04 inch)
- Outlet Diameter: 153.39 mm (6.04 inch)
- Body Diameter Maximum: 256 mm (10.08 inch)
- Body Length: 337.3 mm (13.28 inch)
- Overall Length: 596.4 mm (23.48 inch)
Packaged Dimensions
- Packaged Length: 0.264 m (10.55 inch)
- Packaged Width: 0.264 m (10.55 inch)
- Packaged Height: 0.656 m (26.25 inch)
- Packaged Weight: 9.035 kg (19.90 lb)
- Packaged Volume: 0.047 m3 (1.69 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 125850-09
- HTS Code: 8708923500
- UPC Code: 742330005385
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| A P PARTS | 3696 | |
| AGCO | T0909022H | |
| APE INDUSTRI AB | 3696 | |
| ATLAS COPCO | 1619631802 | |
| CLAAS | 24008800 | |
| CLARK | 1517514 | |
| CLARK,J.L. | 1517514 | |
| COMPAIR | 78283 | |
| CRANE CARRIER | 2100169 | |
| CUB CADET | 507036R1 | |
| CUB CADET | 4507036R1 | |
| DAF | 1698636 | |
| DETROIT DIESEL | DPM100016 | |
| DRESSER | 4507036R | |
| ENMTP CPG | 7404783 | |
| FURUKAWA | 4507036R | |
| HAVAM | HD2265 | |
| HITACHI | 503393 | |
| HURRICANE COMPRESSOR | 2236206001 | |
| INGERSOLL RAND | 54764105 | |
| INTERNATIONAL | DCM100016 | |
| INTERNATIONAL | 4507036R | |
| IVECO | 24008800 | |
| KENWORTH | D45000248 | |
| KENWORTH | FCM100016 | |
| LEROI | 78283 | |
| LIEBHERR | 7404783 | |
| MACK | 2ME384P2 | |
| MACK | 2ME38482 | |
| MORBARK | 29323048 | |
| NACCO MATERIALS | S00976760055 | |
| NATIONAL OILWELL | 90691505 | |
| NATIONAL OILWELL | 123674 | |
| NELSON | 49160A | |
| PACCAR | 1698636 | |
| RENAULT VI | 24008800 | |
| RENAULT VI | 0024008800 | |
| RIKER | SA6009 | |
| SCHRAMM | 24270006 | |
| STEMCO | 2622060 | |
| STEMCO | 2621065 | |
| SULLAIR | 02250158064 | |
| SULLAIR | 250024779 | |
| SULLIVAN PALATEK | 050170900012 | |
| SULLIVAN PALATEK | P501709012 | |
| SULLIVAN PALATEK | 501709012 | |
| SULLIVAN PALATEK | 50170900012 | |
| SULLIVAN PALATEK | 0501709012 | |
| TEREX | 09214205 | |
| TEREX | 9214205 | |
| TESSI TRUCK EXHAUST INC | D150009 | |
| UPTIME PARTS | A2370001001 | |
| VERMEER | 163621530 | |
| VME | 9214205 | |
| WALGAHN-MOTORENTECHN | 810321 | |
| WALGAHN-MOTORENTECHN | 00810321 | |
| WALKER MANUFACTURING | 22774 | |
| WALKER MANUFACTURING | 22005 |
