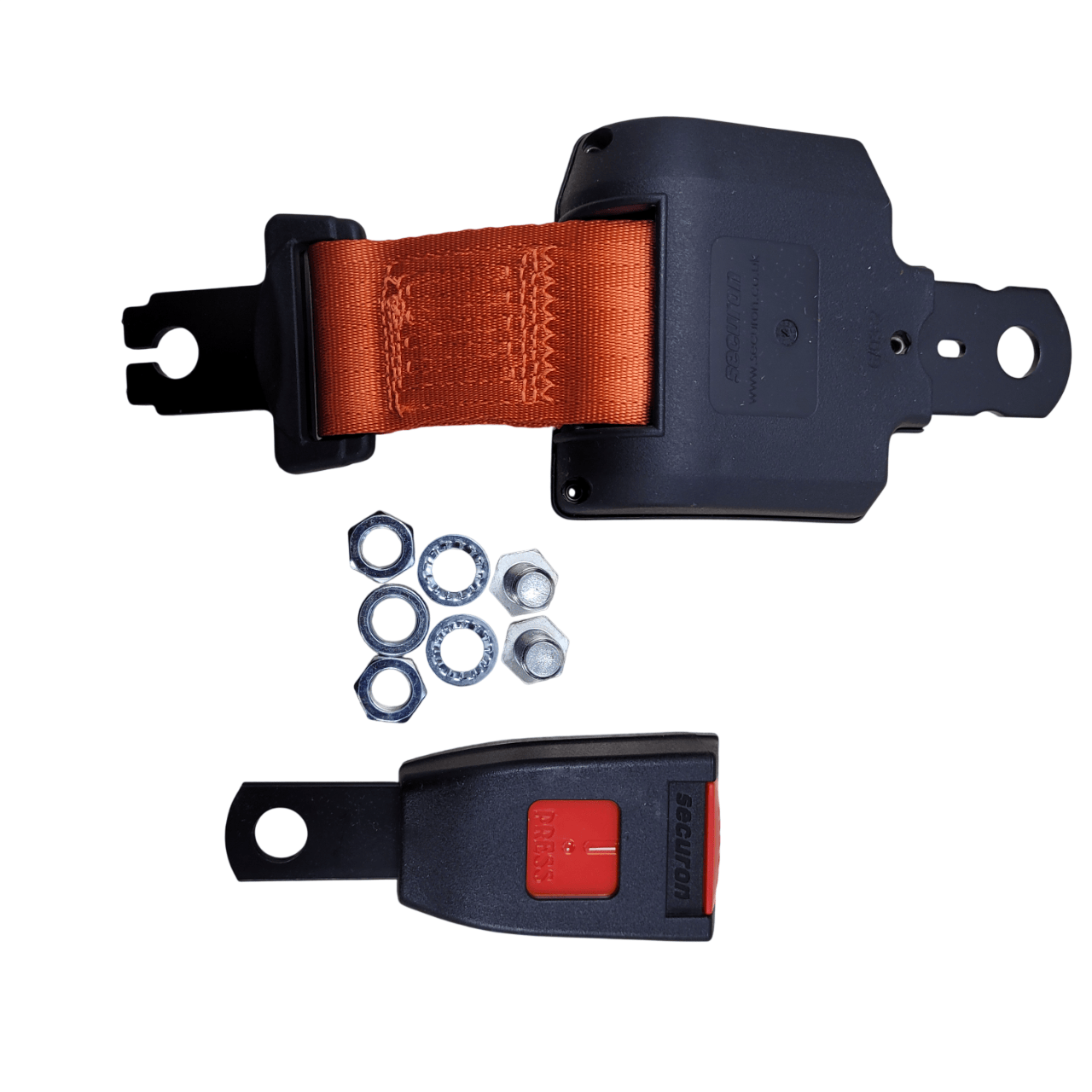

Securon Seat Belt - 143TA7594

Brand - SECURON
Complete/part - Complete
Sort - 2-point
Type - 2-point type 1
Type of retractor - Automatic locking retractor
Housing of the retractor - Closed
Mounting of the retractor - Retractor type A
Length of the retractor L1 (mm) - 92
Width of the retractor W1 (mm) - 94
Height of the retractor H1 (mm) - 57
Diameter mounting hole of the first retractor D2 (mm) - 12
Length of the belt L2 (fully rolled out) (mm) - 1095
Width of the belt W2 (mm) - 47
Colour - Orange
Type of tongue - Tongue type B
Outside length of the tongue L3 (mm) - 40
Outside width of the tongue W3 (mm) - 31.5
Thickness of the tongue T1 (mm) - 3
Inside length of the tongue L4 (mm) - 20.5
Inside width of the tongue W4 (mm) - 3.5
Inside diameter of the tongue D6 (mm) - 13
Type of buckle - Push release
Release system of the buckle - Top and side release
Mounting of the Buckle - Buckle type A1
Length of the buckle L5 (mm) - 117
Diameter of the mounting hole of the buckle D7 (mm) - 13
Hardware present - YES
Support present - NO
Bush present - YES
Number of bushings - 1
Outer diameter of bush 1 D8 (mm) - 19
Inner diameter of bush 1 D9 (mm) - 11.4
Length of bush 1 L7 (mm) - 7
Airbag present - NO
Seat belt buckle tensioner present - NO
E-approved - YES
Weight (kg) - 0.827
