• Donaldson Reducer, 3.5-3 In (89-76 Mm) Od-Id - Donaldson P206325
1 1

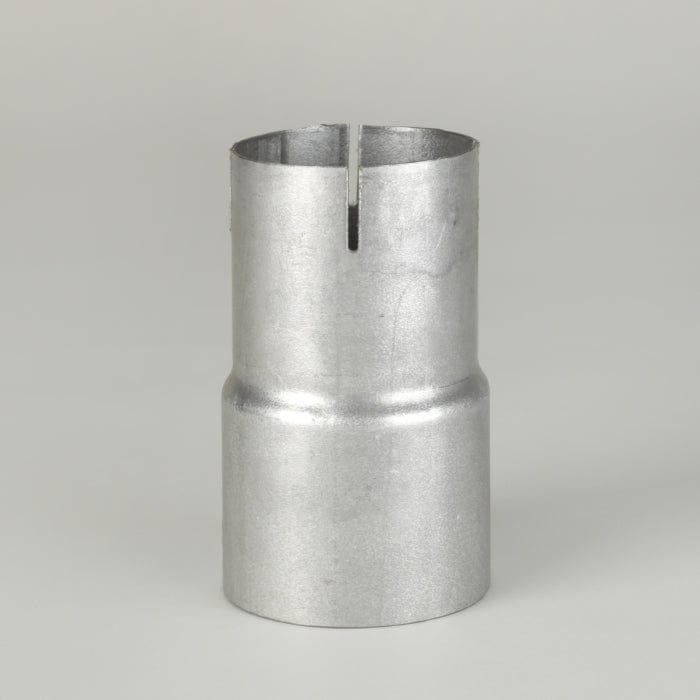

Reducer, 3.5-3 In (89-76 Mm) Od-Id - Donaldson P206325

Reducer, 3.5-3 In (89-76 Mm) Od-Id - Donaldson P206325

£40.48
£40.48
Sale Sold out
Shipping calculated at checkout.

Donaldson P206325

Reducer, 3.5-3 In (89-76 Mm) Od-Id
View full details

Specifications

Attributes

  • Outer Diameter: 89 mm (3.50 inch)
  • Inner Diameter: 75.82 mm (2.99 inch)
  • Length: 152.4 mm (6.00 inch)
  • Connection: OD-ID

Packaged Dimensions

  • Packaged Length: 0.085 m (3.40 inch)
  • Packaged Width: 0.085 m (3.40 inch)
  • Packaged Height: 0.173 m (6.90 inch)
  • Packaged Weight: 0.477 kg (1.05 lb)
  • Packaged Volume: 0.001 m3 (0.05 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 125850-08
  • HTS Code: 7307998099
  • UPC Code: 742330028377

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
A P PARTS 9333
BLOUNT 842964800
CASE/CASE IH NP206325
CATERPILLAR 842964800
CUMMINS 11000487
DYNAFLEX 373530
DYNAFLEX 373530AZ
GRADALL VA601343
HEAVY DUTY MFG 29353
HEAVY DUTY MFG 29353A
INGERSOLL RAND RM43927623
INGERSOLL RAND 43927623
INTERNATIONAL DCP206325
JOHN DEERE 842964800
MORBARK 29323761
NELSON 89184A
PETTIBONE LL847410
RIKER OR353
STEMCO 2550157
TIMBERJACK 842954800
TIMBERJACK 842964800
TRACKMOBILE 1060073
TRUCKEX 9333
WALKER MANUFACTURING 41980
