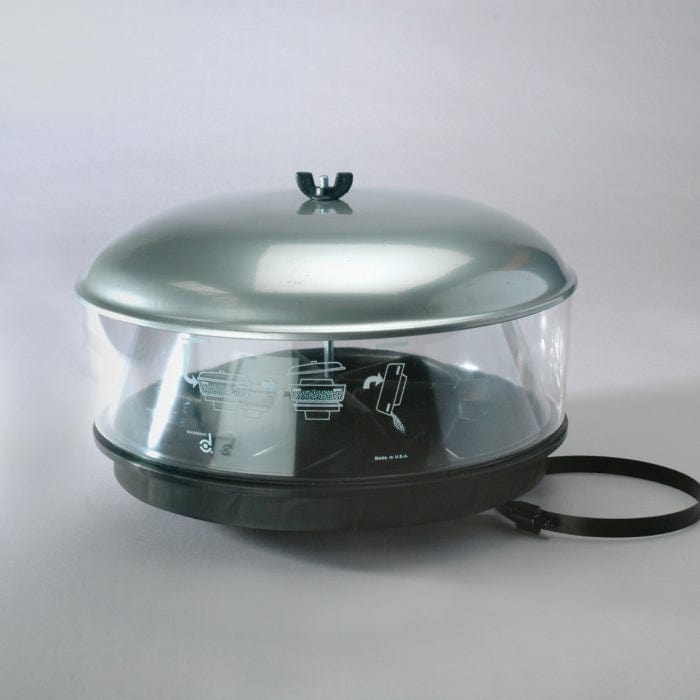

Pre-Cleaner, Full View - Donaldson H002223
Pre-Cleaner, Full View - Donaldson H002223
Regular price
£221.74
Regular price
Sale price
£221.74
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson H002223
Pre-Cleaner, Full View| Height | 10.16 inch (258.1 mm) |
| Body Diameter Maximum | 16.24 inch (412.49 mm) |
| Outlet ID | 6.03 inch (153.16 mm) |
| Efficiency | 75 |
| Efficiency Test Std | ISO 5011, SAE J726 |
| Rated Flow HR | 1300 cfm (36.8 m³/min) |
| Restriction LR | 0.98 inch H2O (25 mm H2O) |
| Restriction HR | 2.99 inch H2O (76 mm H2O) |
Share
Collapsible content
Specifications
Attributes
- Height: 258.1 mm (10.16 inch)
- Body Diameter Maximum: 412.49 mm (16.24 inch)
- Outlet ID: 153.16 mm (6.03 inch)
- Efficiency: 75
- Efficiency Test Std: ISO 5011
- SAE J726:
- Rated Flow HR: 36.8 m³/min (1300 cfm)
- Restriction LR: 25 mm H2O (0.98 inch H2O)
- Restriction HR: 76 mm H2O (2.99 inch H2O)
Packaged Dimensions
- Packaged Length: 1.39 FT
- Packaged Width: 1.39 FT
- Packaged Height: 1.03 FT
- Packaged Weight: 5.098 kg (11.23 lb)
- Packaged Volume: 0.056 m3 (2.00 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-04
- HTS Code: 8421197000
- UPC Code: 742330111079
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AG CHEM EQUIPMENT | 144078 | |
| AGCO | 586467M91 | |
| AGCO | 07721111 | |
| ARDCO | ENE0198 | |
| AUSTOFT | 133299 | |
| BAUER | N02217 | |
| BELL | 290230 | |
| CAMECO | 0060027777 | |
| CAMECO | 006004203 | |
| CAMECO | 0060042031J | |
| CAMECO | 0060042031 | |
| CASE/CASE IH | 928623C1 | |
| CASE/CASE IH | 1849300 | |
| CASE/CASE IH | 151849300 | |
| CASE/CASE IH | 133299 | |
| CATERPILLAR | 1501713 | |
| CATERPILLAR | 2S5651 | |
| CATERPILLAR | 481156 | |
| CHAMPION ROAD | 10882 | |
| CHAMPION ROAD | 43332 | |
| CHARDONNET | 7400038800 | |
| CLARK | 3652973 | |
| CRANE CARRIER | 102A46 | |
| CUB CADET | 762298C91 | |
| DART | PBH000388 | |
| DEMAG | M1849300 | |
| DEUTZ | 3725463 | |
| DEUTZ | 7721111 | |
| DEUTZ | 586467M91 | |
| DEUTZ | 07721111 | |
| DEZZI | 350079 | |
| DRESSER | TA2325 | |
| DRESSER | 928623C1 | |
| DRESSER | 98926 | |
| EIMCO | 69037356 | |
| EIMCO | 108087 | |
| EIMCO | 64803801 | |
| EUCLID | 3150709 | |
| EUCLID | M3150709 | |
| FARMHAND | 75231 | |
| FIAT | 76014653 | |
| FIAT | 151849300 | |
| FIAT | 1849300 | |
| FIAT | 70658307 | |
| FMC | 2236398 | |
| FREIGHTLINER | 9044799 | |
| FURUKAWA | 4614919H1 | |
| FURUKAWA | 928623C1 | |
| GRADALL | 86983525 | |
| HAVAM | HD9390 | |
| HAWKER SIDDELEY | 38207934 | |
| HITACHI | 72211032 | |
| HITACHI | 76014653 | |
| HYSTER | 1506832 | |
| INGERSOLL RAND | 88231030 | |
| INGERSOLL RAND | 519006781 | |
| INGERSOLL RAND | 51900678 | |
| INGERSOLL RAND | N02217 | |
| JOHN DEERE | AT252979 | |
| JOHN DEERE | F060988 | |
| KAELBLE | 3400008500 | |
| KAWASAKI | 4273070100 | |
| KAWASAKI | 4273070070 | |
| KERSHAW | 116818 | |
| KHD | 3725463 | |
| KOEHRING | 5735006 | |
| KOEHRING | 4206208 | |
| KOEHRING | 853522004 | |
| KOMATSU | 21N0131330 | |
| KOMATSU | 41K1311110 | |
| KOMATSU | 98926 | |
| KOMATSU | TA2325 | |
| KOMATSU | M1849300 | |
| LETOURNEAU | 4065585 | |
| LEYLAND-DAF (LDV) | ACU5804 | |
| LISTER PETTER | 38207934 | |
| LOESING | 020258 | |
| LOESING | 20258 | |
| MASSEY FERGUSON | 586467M91 | |
| MCCORMICK | 928623C1 | |
| MERCEDES-BENZ | A0000908401 | |
| MI-JACK | 33160002 | |
| MI-JACK | 43161003 | |
| MORBARK | 29321215 | |
| MORBARK | 29321332 | |
| MULTI PART | ACU5804 | |
| NACCO MATERIALS | 1506832 | |
| NEW HOLLAND | 70658307 | |
| NEW HOLLAND | 151849300 | |
| ORENSTEIN & KOPPEL | 0727356 | |
| ORENSTEIN & KOPPEL | 727356 | |
| PERKINS | H0022223 | |
| PERKINS | 13000550 | |
| PERKINS | CV12327 | |
| PETERBILT | PBH002223 | |
| ROVER | ACU5804 | |
| SANDVIK | 69037356 | |
| SDMO | 3181601080104 | |
| TAMROCK | 69037356 | |
| TEREX | 15306427 | |
| TEREX | 0727356 | |
| TIM | 2S5651 | |
| TIMBERJACK | F060988 | |
| UNIPART | ACU5804 | |
| UP LIFTING VERTICAL S.A. | 5490091001 | |
| VME | 9034382 | |
| VOLVO | 49044799 | |
| WALGAHN-MOTORENTECHN | 00810178 | |
| WALGAHN-MOTORENTECHN | 810178 | |
| WESTERN STAR TRUCK | 049044799 | |
| WESTERN STAR TRUCK | 9044799 |
