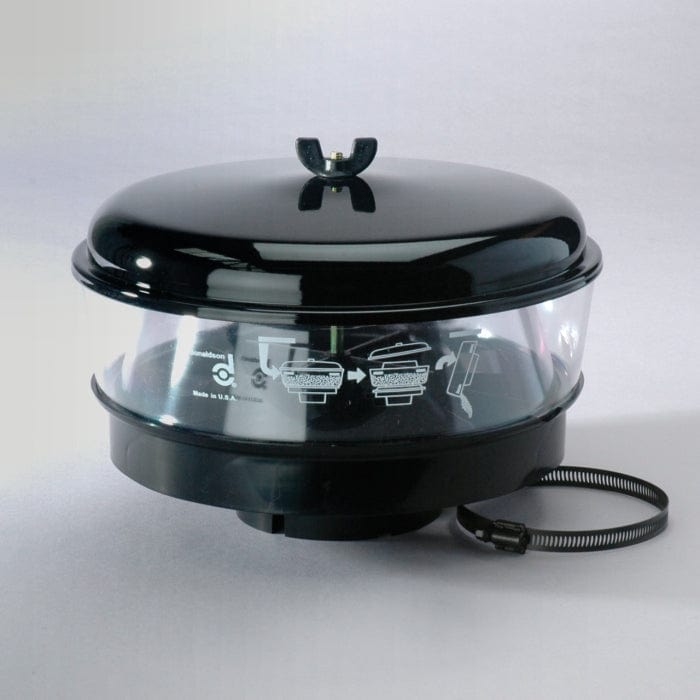

Pre-Cleaner, Full View - Donaldson H002044
Pre-Cleaner, Full View - Donaldson H002044
Regular price
£113.55
Regular price
Sale price
£113.55
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson H002044
Pre-Cleaner, Full View| Height | 8.03 inch (203.96 mm) |
| Body Diameter Maximum | 12.06 inch (306.32 mm) |
| Outlet ID | 4.53 inch (115.1 mm) |
| Efficiency | 75 |
| Efficiency Test Std | ISO 5011, SAE J726 |
| Rated Flow HR | 699 cfm (19.8 m³/min) |
| Restriction LR | 0.98 inch H2O (25 mm H2O) |
| Restriction HR | 2.99 inch H2O (76 mm H2O) |
Share
Collapsible content
Specifications
Attributes
- Height: 203.96 mm (8.03 inch)
- Body Diameter Maximum: 306.32 mm (12.06 inch)
- Outlet ID: 115.1 mm (4.53 inch)
- Efficiency: 75
- Efficiency Test Std: ISO 5011
- SAE J726:
- Rated Flow HR: 19.8 m³/min (699 cfm)
- Restriction LR: 25 mm H2O (0.98 inch H2O)
- Restriction HR: 76 mm H2O (2.99 inch H2O)
Packaged Dimensions
- Packaged Length: 1.04 FT
- Packaged Width: 1.04 FT
- Packaged Height: 0.81 FT
- Packaged Weight: 2.402 kg (5.29 lb)
- Packaged Volume: 0.025 m3 (0.88 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-05
- HTS Code: 8421197000
- UPC Code: 742330003411
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AGCO | K1004030H | |
| ASTRA | 28439 | |
| ATLAS COPCO | 1613913500 | |
| BARKO HYDRAULICS | 53501456SUB | |
| BAUER | N02252 | |
| CAMECO | 60035421 | |
| CAMECO | 810483000 | |
| CAMECO | 0060035421J | |
| CAMECO | 0060035421 | |
| CAMECO | 00635421SUB | |
| CAMECO | 00635421 | |
| CASE/CASE IH | L011824 | |
| CHARDONNET | 7400022700 | |
| CLAAS | 24551106 | |
| CLARK | 1911723SUB | |
| CLARK | 514279SUB | |
| COMPAIR | 527294 | |
| COMPAIR | AU1907 | |
| DEUTZ | 11802400002 | |
| DEUTZ | 011802400002 | |
| EIMCO | 64108319 | |
| ENMTP CPG | 5106087 | |
| HANOMAG TRAKTOREN | 2981674M91 | |
| HAVAM | HD9324 | |
| HYSTER | 1455856 | |
| INGERSOLL RAND | 59608729SUB | |
| INGERSOLL RAND | 59608729 | |
| INGERSOLL RAND | N02252 | |
| IVECO | 24551106 | |
| JOHN DEERE | 810483000J | |
| JOHN DEERE | 810483000 | |
| KOEHRING | 4203252SUB | |
| KOEHRING | 4203920SUB | |
| KOMATSU | 527294 | |
| LIEBHERR | 5106087 | |
| LOESING | 20248 | |
| LOESING | 020248 | |
| MACK | 2191H002044 | |
| MACK | 2MD1104SUB | |
| MACK | 2MD1104 | |
| NACCO MATERIALS | 1455856 | |
| NACCO MATERIALS | 580002726 | |
| RENAULT VI | 0024551106 | |
| RENAULT VI | 24551106 | |
| ROTORCOMP | N02252 | |
| SANDVIK | 64108319 | |
| TAMROCK | 64108319 | |
| TEREX | 527294 | |
| TIMBERJACK | 810483000SUB | |
| TIMBERJACK | 810483000 | |
| VOLVO | 59608726 | |
| VOLVO | 59608729 | |
| VOLVO CONSTRUCTION EQUIPMENT | 20002272270 | |
| WALGAHN-MOTORENTECHN | 00810161 | |
| WALGAHN-MOTORENTECHN | 810161 | |
| WAUKESHA | 158640SUB |
