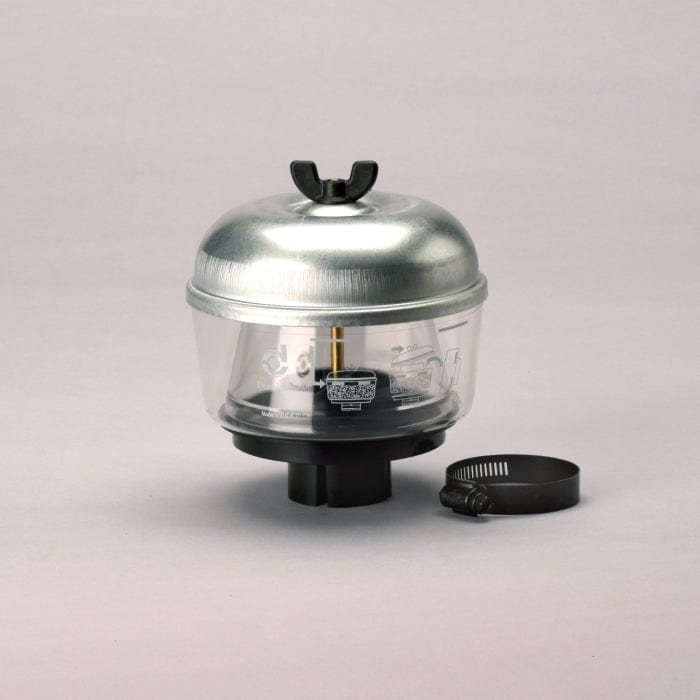

Pre-Cleaner, Full View - Donaldson H002042
Pre-Cleaner, Full View - Donaldson H002042
Regular price
£48.32
Regular price
Sale price
£48.32
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson H002042
Pre-Cleaner, Full View| Height | 5.60 inch (142.2 mm) |
| Body Diameter Maximum | 5.58 inch (141.7 mm) |
| Outlet ID | 1.75 inch (44.4 mm) |
| Efficiency | 75 |
| Efficiency Test Std | ISO 5011, SAE J726 |
| Rated Flow HR | 81 cfm (2.3 m³/min) |
| Restriction LR | 0.98 inch H2O (25 mm H2O) |
| Restriction HR | 2.99 inch H2O (76 mm H2O) |
Share
Collapsible content
Specifications
Attributes
- Height: 142.2 mm (5.60 inch)
- Body Diameter Maximum: 141.7 mm (5.58 inch)
- Outlet ID: 44.4 mm (1.75 inch)
- Efficiency: 75
- Efficiency Test Std: ISO 5011
- SAE J726:
- Rated Flow HR: 2.3 m³/min (81 cfm)
- Restriction LR: 25 mm H2O (0.98 inch H2O)
- Restriction HR: 76 mm H2O (2.99 inch H2O)
Packaged Dimensions
- Packaged Length: 0.150 m (6.00 inch)
- Packaged Width: 0.150 m (6.00 inch)
- Packaged Height: 0.170 m (6.80 inch)
- Packaged Weight: 0.486 kg (1.07 lb)
- Packaged Volume: 0.004 m3 (0.14 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-06
- HTS Code: 8421197000
- UPC Code: 742330003398
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| ARIENS | 05037600 | |
| ATLAS COPCO | 1310095982 | |
| ATLAS COPCO | 1310095982SUB | |
| BOBCAT | 6645229 | |
| BOBCAT | 6645229SUB | |
| BURKEEN | 6645229SUB | |
| CARRIER TRANSICOLD | 300001200 | |
| CARRIER TRANSICOLD | 300001200SUB | |
| CARRIER TRANSICOLD | 305033400 | |
| CASE/CASE IH | D020605 | |
| CASE/CASE IH | D20605 | |
| CASE/CASE IH | 303772A1 | |
| CATERPILLAR | 3607855 | |
| CHARDONNET | 7400021500 | |
| CLARK | 1758910 | |
| CLARK | 1758910SUB | |
| COMPAIR | 1700A61960 | |
| DYNAPAC | 499186 | |
| GENIE | 740455 | |
| HAVAM | HD2042 | |
| HAVAM | HD9310 | |
| JOHN DEERE | CHAM65885 | |
| LOESING | 20246 | |
| LOESING | 020246 | |
| ONAN | 01400632SUB | |
| TORO | 1002138 | |
| WALGAHN-MOTORENTECHN | 00810159 | |
| WALGAHN-MOTORENTECHN | 810159 | |
| WALKER MANUFACTURING | 70261 | |
| WALKER MANUFACTURING | 7024SUB | |
| WAUKESHA | 50816BSUB |
