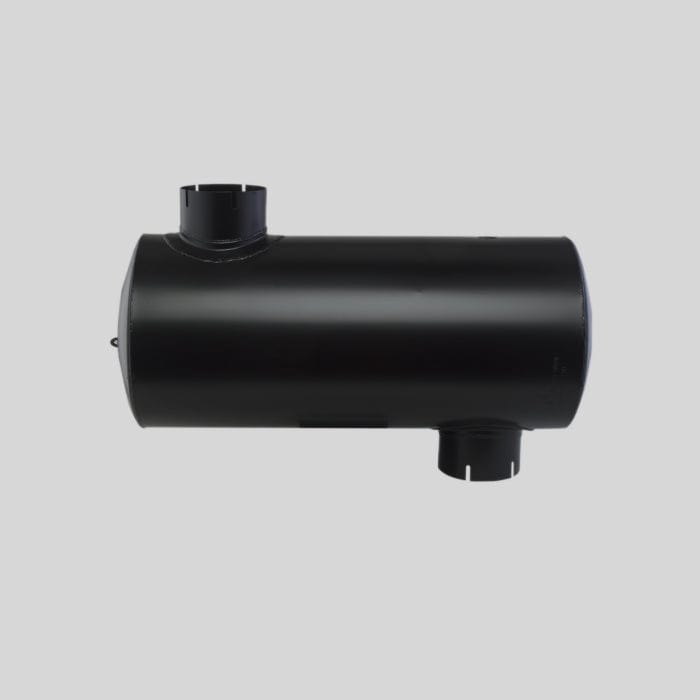

Muffler, Round Style 6 - Donaldson M120751
Muffler, Round Style 6 - Donaldson M120751
Regular price
£522.44
Regular price
Sale price
£522.44
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson M120751
Muffler, Round Style 6| Inlet Diameter | 5.03 inch (127.64 mm) |
| Outlet Diameter | 5.03 inch (127.64 mm) |
| Body Diameter Maximum | 11.84 inch (300.74 mm) |
| Body Length | 25.50 inch (647.7 mm) |
| Overall Length | 29.14 inch (740.16 mm) |
| Rated Flow LR | 1762 cfm (49.9 m³/min) |
| Rated Flow MR | 2447 cfm (69.3 m³/min) |
| Rated Flow HR | 3097 cfm (87.7 m³/min) |
| Back Pressure Low-Range | 0.98 inch Hg (25 mm Hg) |
| Back Pressure Mid-Range | 2.01 inch Hg (51 mm Hg) |
| Back Pressure High-Range | 2.99 inch Hg (76 mm Hg) |
| Attenuation LR | 12 dBA |
| Attenuation HR | 18 dBA |
| Inlet Clock Position | 6:00 |
| Outlet Clock Position | 12:00 |
| Style | Style 6 |
Share
Collapsible content
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| CMI | 96207 | |
| GRADALL | 80683303 | |
| NELSON | 201579N |
