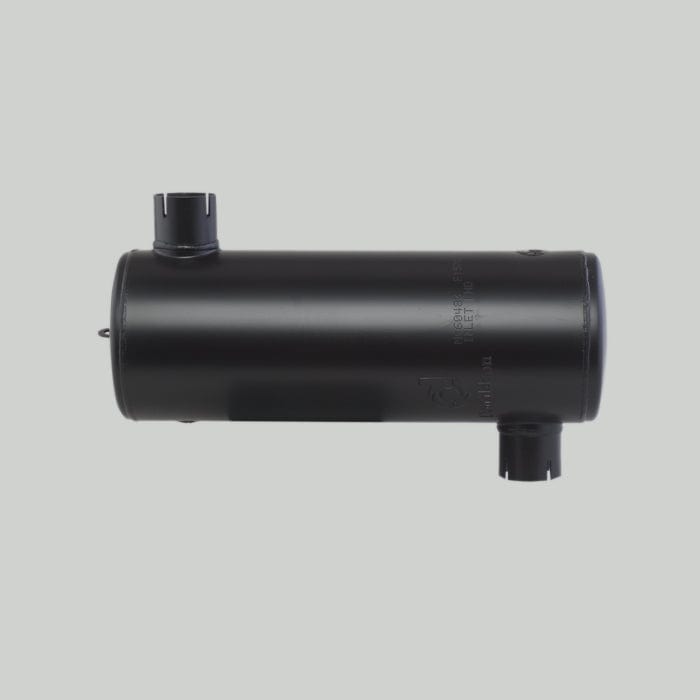

Muffler, Round Style 6 - Donaldson M060483
Muffler, Round Style 6 - Donaldson M060483
Regular price
£213.64
Regular price
Sale price
£213.64
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson M060483
Muffler, Round Style 6| Inlet Diameter | 2.02 inch (51.31 mm) |
| Outlet Diameter | 2.02 inch (51.31 mm) |
| Body Diameter Maximum | 5.98 inch (152 mm) |
| Body Length | 15.98 inch (406 mm) |
| Overall Length | 17.26 inch (438.4 mm) |
| Rated Flow LR | 283 cfm (8 m³/min) |
| Rated Flow MR | 392 cfm (11.1 m³/min) |
| Rated Flow HR | 392 cfm (11.1 m³/min) |
| Back Pressure Low-Range | 0.98 inch Hg (25 mm Hg) |
| Back Pressure Mid-Range | 2.01 inch Hg (51 mm Hg) |
| Back Pressure High-Range | 2.99 inch Hg (76 mm Hg) |
| Attenuation LR | 12 dBA |
| Attenuation HR | 18 dBA |
| Inlet Clock Position | 6:00 |
| Outlet Clock Position | 12:00 |
| Style | Style 6 |
Share
Collapsible content
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| ARROW SPECIALTY | M060482 | |
| NELSON | 201554N | |
| PRINCETON DELIVERY SYSTEMS | 505110 | |
| PRINCETON DELIVERY SYSTEMS | 518110 |
