Muffler, Round Style 5 - Donaldson M085207
Muffler, Round Style 5 - Donaldson M085207
Regular price
£230.00
Regular price
Sale price
£230.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

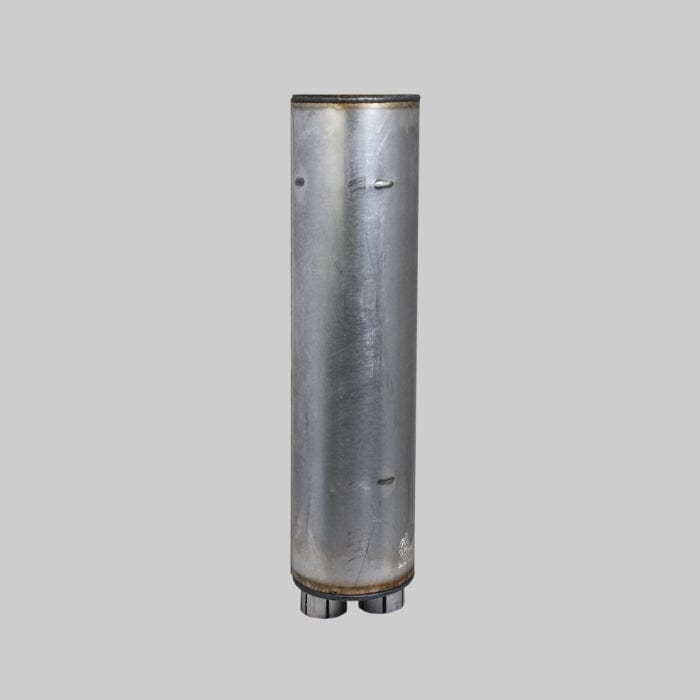

Donaldson M085207
Muffler, Round Style 5| Inlet Diameter | 3.02 inch (76.66 mm) |
| Outlet Diameter | 3.02 inch (76.66 mm) |
| Body Diameter Maximum | 8.46 inch (214.88 mm) |
| Body Length | 22.00 inch (558.8 mm) |
| Overall Length | 23.50 inch (596.9 mm) |
| Rated Flow LR | 629 cfm (17.8 m³/min) |
| Rated Flow MR | 886 cfm (25.1 m³/min) |
| Rated Flow HR | 1088 cfm (30.8 m³/min) |
| Back Pressure Low-Range | 0.98 inch Hg (25 mm Hg) |
| Back Pressure Mid-Range | 2.01 inch Hg (51 mm Hg) |
| Back Pressure High-Range | 2.99 inch Hg (76 mm Hg) |
| Attenuation LR | 15 dBA |
| Attenuation HR | 20 dBA |
| Inlet Clock Position | 6:00 |
| Outlet Clock Position | 12:00 |
| Style | Style 5 |
Share
Collapsible content
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| BARKO HYDRAULICS | 53505476 | |
| CMI | 4013174000 | |
| CMI | 004013174000 | |
| CMI | 4013140000 | |
| CMI | 004013140000 | |
| CMI | 413174 | |
| CRANE CARRIER | 2100150 | |
| DYNAFLEX | 88300218 | |
| GETMAN | 595182 | |
| HEAVY DUTY MFG | 31243 | |
| INGERSOLL RAND | 13145271 | |
| INTERNATIONAL | DCM085207 | |
| LULL | P532697 | |
| LULL | P32697 | |
| PETTIBONE | LL847413 | |
| PETTIBONE | LPP32697 | |
| STEMCO | 1909230 | |
| STEMCO | 1909218 | |
| STEMCO | 1901305 | |
| SULLIVAN PALATEK | 501878533 | |
| SULLIVAN PALATEK | 050187850033 | |
| SULLIVAN PALATEK | P501878533 | |
| SULLIVAN PALATEK | 0501878533 | |
| TAYLOR | 2403184 | |
| VERMEER | 145777001 | |
| WALKER MANUFACTURING | 22637 |
