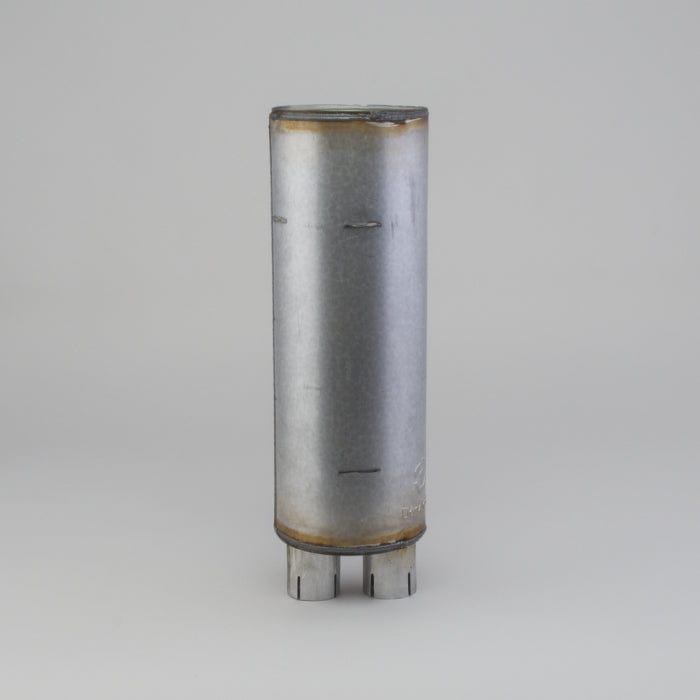

Muffler, Round Style 5 - Donaldson M060250
Muffler, Round Style 5 - Donaldson M060250
Regular price
£206.40
Regular price
Sale price
£206.40
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson M060250
Muffler, Round Style 5| Inlet Diameter | 2.02 inch (51.31 mm) |
| Outlet Diameter | 2.02 inch (51.31 mm) |
| Body Diameter Maximum | 5.97 inch (151.6 mm) |
| Body Length | 16.40 inch (416.6 mm) |
| Overall Length | 19.40 inch (492.8 mm) |
| Rated Flow LR | 297 cfm (8.4 m³/min) |
| Rated Flow MR | 420 cfm (11.9 m³/min) |
| Rated Flow HR | 512 cfm (14.5 m³/min) |
| Back Pressure Low-Range | 0.98 inch Hg (25 mm Hg) |
| Back Pressure Mid-Range | 2.01 inch Hg (51 mm Hg) |
| Back Pressure High-Range | 2.99 inch Hg (76 mm Hg) |
| Attenuation LR | 15 dBA |
| Attenuation HR | 20 dBA |
| Inlet Clock Position | 6:00 |
| Outlet Clock Position | 12:00 |
| Style | Style 5 |
Share
Collapsible content
Specifications
Attributes
- Inlet Diameter: 51.31 mm (2.02 inch)
- Outlet Diameter: 51.31 mm (2.02 inch)
- Body Diameter Maximum: 151.6 mm (5.97 inch)
- Body Length: 416.6 mm (16.40 inch)
- Overall Length: 492.8 mm (19.40 inch)
- Rated Flow LR: 8.4 m³/min (297 cfm)
- Rated Flow MR: 11.9 m³/min (420 cfm)
- Rated Flow HR: 14.5 m³/min (512 cfm)
- Back Pressure Low-Range: 25 mm Hg (0.98 inch Hg)
- Back Pressure Mid-Range: 51 mm Hg (2.01 inch Hg)
- Back Pressure High-Range: 76 mm Hg (2.99 inch Hg)
- Attenuation LR: 15 dBA
- Attenuation HR: 20 dBA
- Inlet Clock Position: 6
- Outlet Clock Position: 12
- Style: Style 5
Packaged Dimensions
- Packaged Length: 0.624 m (24.96 inch)
- Packaged Width: 0.168 m (6.70 inch)
- Packaged Height: 0.165 m (6.60 inch)
- Packaged Weight: 3.655 kg (8.05 lb)
- Packaged Volume: 0.018 m3 (0.64 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 125850-09
- HTS Code: 8708923500
- UPC Code: 742330004616
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| DYNAFLEX | DP51654 | |
| DYNAFLEX | DP51654Q | |
| EAGLE PICHER | 63510 | |
| FORD | 9575M060250 | |
| GENERAC | A8891 | |
| HEAVY DUTY MFG | 31241 | |
| INTERNATIONAL | DCM060250 | |
| TYMCO | 22362 | |
| WEIDEMANN | 5559060250 |
