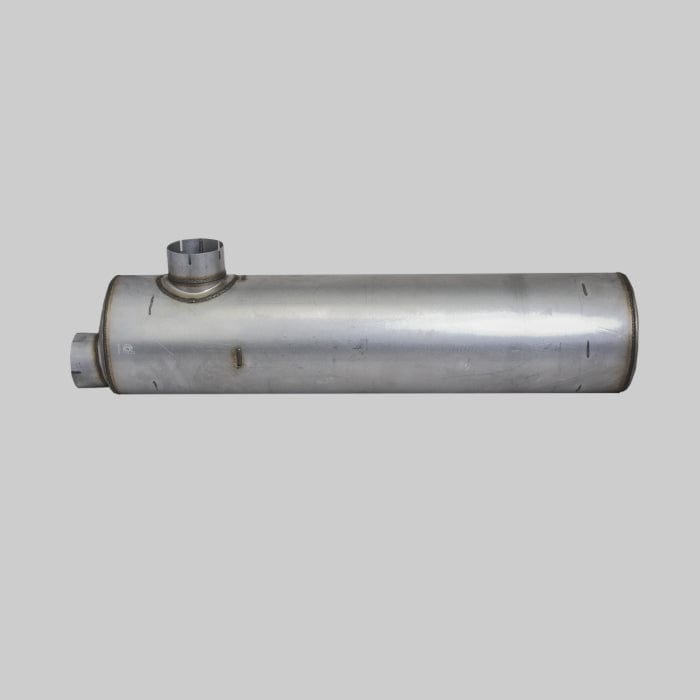

Muffler, Round Style 4 - Donaldson M110014

Attributes

• Inlet Diameter: 127.64 mm (5.03 inch)
• Outlet Diameter: 127.64 mm (5.03 inch)
• Body Diameter Maximum: 281.4 mm (11.08 inch)
• Body Length: 1168.4 mm (46.00 inch)
• Overall Length: 1314.4 mm (51.75 inch)
• Rated Flow LR: 40.2 m³/min (1420 cfm)
• Rated Flow MR: 56.9 m³/min (2009 cfm)
• Rated Flow HR: 69.7 m³/min (2461 cfm)
• Back Pressure Low-Range: 25 mm Hg (0.98 inch Hg)
• Back Pressure Mid-Range: 51 mm Hg (2.01 inch Hg)
• Back Pressure High-Range: 76 mm Hg (2.99 inch Hg)
• Attenuation LR: 15 dBA
• Attenuation HR: 20 dBA
• Inlet Clock Position: 6
• Outlet Clock Position: 12
• Style: Style 4

Packaged Dimensions

• Packaged Length: 1.381 m (55.25 inch)
• Packaged Width: 0.388 m (15.50 inch)
• Packaged Height: 0.294 m (11.75 inch)
• Packaged Weight: 22.518 kg (49.60 lb)
• Packaged Volume: 0.163 m3 (5.82 ft3)

Other Information

• Country of Origin: United States
• NMFC Code: 125850-06
• HTS Code: 8708923500
• UPC Code: 742330005668
