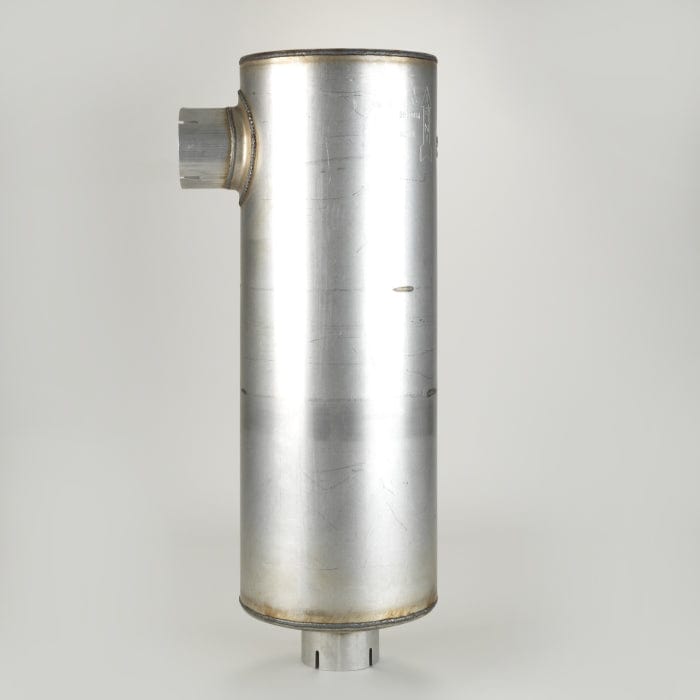

Muffler, Round Style 3 - Donaldson M100146

Attributes

• Inlet Diameter: 102 mm (4.02 inch)
• Outlet Diameter: 102 mm (4.02 inch)
• Body Diameter Maximum: 254 mm (10.00 inch)
• Body Length: 711 mm (27.99 inch)
• Overall Length: 813 mm (32.01 inch)
• Rated Flow LR: 21.9 m³/min (773 cfm)
• Rated Flow MR: 31 m³/min (1095 cfm)
• Rated Flow HR: 38 m³/min (1342 cfm)
• Back Pressure Low-Range: 25 mm Hg (0.98 inch Hg)
• Back Pressure Mid-Range: 51 mm Hg (2.01 inch Hg)
• Back Pressure High-Range: 76 mm Hg (2.99 inch Hg)
• Attenuation LR: 15 dBA
• Attenuation HR: 20 dBA
• Inlet Clock Position: 6
• Outlet Clock Position: 9
• Style: Style 3

Packaged Dimensions

• Packaged Length: 0.881 m (35.25 inch)
• Packaged Width: 0.350 m (14.00 inch)
• Packaged Height: 0.275 m (11.00 inch)
• Packaged Weight: 12.701 kg (27.98 lb)
• Packaged Volume: 0.088 m3 (3.14 ft3)

Other Information

• Country of Origin: United States
• NMFC Code: 125850-08
• HTS Code: 8708923500
• UPC Code: 742330005453
