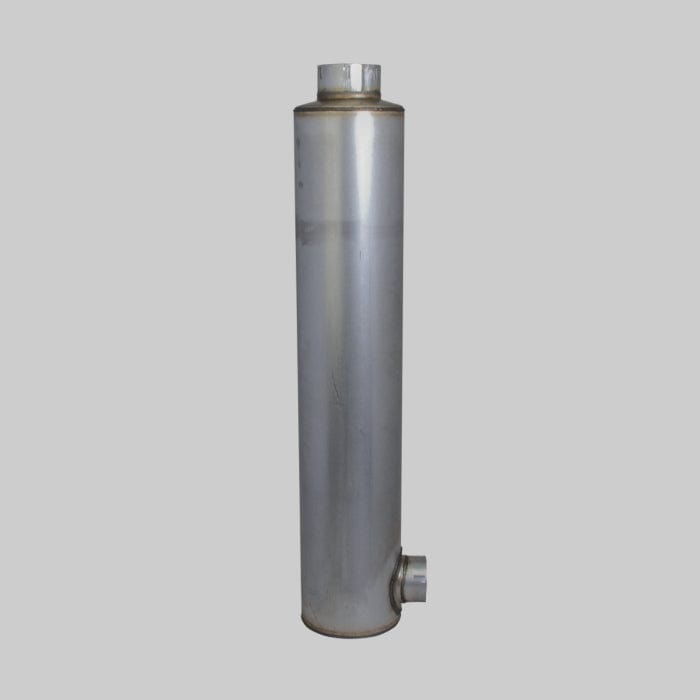

Muffler, Round Style 3 - Donaldson M090823

Attributes

• Inlet Diameter: 102.11 mm (4.02 inch)
• Outlet Diameter: 127.64 mm (5.03 inch)
• Body Diameter Maximum: 228.6 mm (9.00 inch)
• Body Length: 1125.5 mm (44.31 inch)
• Overall Length: 1219.2 mm (48.00 inch)
• Rated Flow LR: 38.1 m³/min (1345 cfm)
• Rated Flow MR: 53.8 m³/min (1900 cfm)
• Rated Flow HR: 65.9 m³/min (2327 cfm)
• Back Pressure Low-Range: 25 mm Hg (0.98 inch Hg)
• Back Pressure Mid-Range: 51 mm Hg (2.01 inch Hg)
• Back Pressure High-Range: 76 mm Hg (2.99 inch Hg)
• Attenuation LR: 15 dBA
• Attenuation HR: 20 dBA
• Inlet Clock Position: 6
• Style: Style 3

Packaged Dimensions

• Packaged Length: 1.219 m (48.75 inch)
• Packaged Width: 0.310 m (12.38 inch)
• Packaged Height: 0.247 m (9.88 inch)
• Packaged Weight: 13.983 kg (30.80 lb)
• Packaged Volume: 0.097 m3 (3.45 ft3)

Other Information

• Country of Origin: United States
• NMFC Code: 125850-08
• HTS Code: 8708923500
• UPC Code: 742330005378
