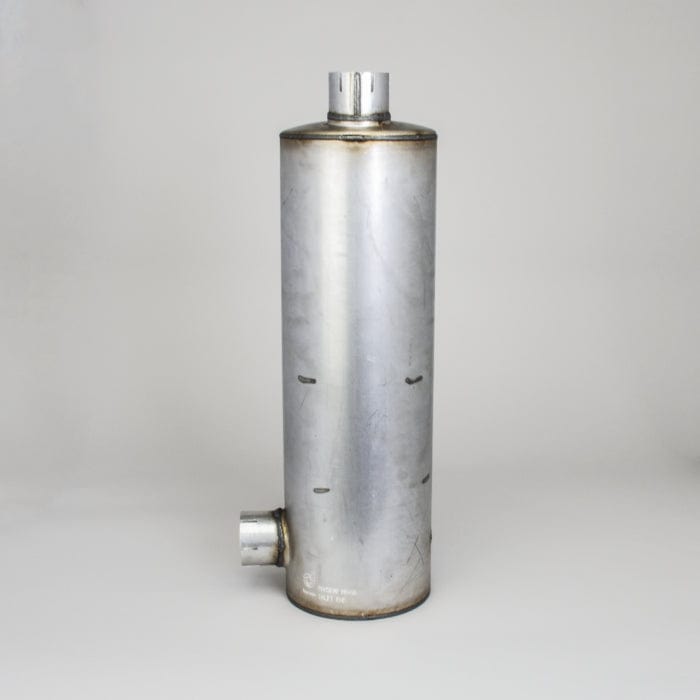

Muffler, Round Style 3 - Donaldson M085090
Muffler, Round Style 3 - Donaldson M085090
Regular price
£267.50
Regular price
Sale price
£267.50
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson M085090
Muffler, Round Style 3| Inlet Diameter | 3.02 inch (76.66 mm) |
| Outlet Diameter | 3.02 inch (76.6 mm) |
| Body Diameter Maximum | 8.46 inch (215 mm) |
| Body Length | 26.25 inch (666.8 mm) |
| Overall Length | 29.50 inch (749.3 mm) |
| Rated Flow LR | 466 cfm (13.2 m³/min) |
| Rated Flow MR | 657 cfm (18.6 m³/min) |
| Rated Flow HR | 802 cfm (22.7 m³/min) |
| Back Pressure Low-Range | 0.98 inch Hg (25 mm Hg) |
| Back Pressure Mid-Range | 2.01 inch Hg (51 mm Hg) |
| Back Pressure High-Range | 2.99 inch Hg (76 mm Hg) |
| Attenuation LR | 15 dBA |
| Attenuation HR | 20 dBA |
| Inlet Clock Position | 3:00 |
| Outlet Clock Position | 6:00 |
| Style | Style 3 |
Share
Collapsible content
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| A P PARTS | 3626 | |
| A P PARTS | 3626Q | |
| AP EXHAUST PRODUCTS INC | 3626 | |
| ASTEC UNDERGROUND | 304605097 | |
| B R LEE INDUSTRIES | 36790 | |
| BADGER | 76080439 | |
| BARKO HYDRAULICS | 53501016 | |
| BRODERSON | 060094217 | |
| BRODERSON | 60094217 | |
| CAMECO | 5538023 | |
| CAMECO | 550038023 | |
| CAMECO | 0550038023 | |
| CAMECO | 05538023 | |
| CATERPILLAR | 0980240 | |
| CATERPILLAR | 980240 | |
| CETCO INCORPORATED | 1243327H1 | |
| CHAMPION ROAD | 205996 | |
| CHARDONNET | 7408509000 | |
| CMI | 4002980000 | |
| CMI | 400298000 | |
| CMI | 413224 | |
| DRESSER | 1243327H1 | |
| DYNAFLEX | 88H300102 | |
| DYNAFLEX | 88H300192 | |
| FORD | 9575M085090 | |
| FREIGHTLINER | DNM085090 | |
| GENERAC | OD8473R | |
| GENERAC | OD8473 | |
| GENERAC | 0D8473 | |
| GRADALL | 1755012 | |
| GROVE | 7642000029 | |
| HAVAM | 00008223 | |
| HAVAM | 8223 | |
| HEAVY DUTY MFG | 31102 | |
| INGERSOLL RAND | 35576271 | |
| INGERSOLL RAND | 50901719 | |
| INGERSOLL RAND | 59189100 | |
| INGERSOLL RAND | 22320253 | |
| INTERNATIONAL | DCM085090 | |
| ISUZU | X14152005 | |
| KOEHRING | 125695 | |
| KOHLER | 253237 | |
| KOMATSU | 1243327H1 | |
| LEROI | 783181 | |
| LEROI | 78318 | |
| LEROI | GD1755012 | |
| MORBARK | 29323072 | |
| NELSON | 86192M | |
| OSHKOSH | P109398 | |
| OSHKOSH | 3HS880 | |
| P & H | 27Q686 | |
| PANDROL JACKSON | 2511251 | |
| PETTIBONE | R02318076 | |
| PETTIBONE | 44045 | |
| PETTIBONE | 0RO23180076 | |
| PETTIBONE | 53501016 | |
| RAYGO | 0980240 | |
| RAYGO | 1207032A | |
| RAYGO | 980240 | |
| RAYGO | 1207032 | |
| ROSCO | 36790 | |
| SELLICK EQPT LTD | 190699 | |
| STEMCO | 1901332 | |
| TAYLOR | 1007537 | |
| VERMEER | 116370001 | |
| VERMEER | 1163700011 | |
| WALDON | 414714 | |
| WALGAHN-MOTORENTECHN | 00810300 | |
| WALGAHN-MOTORENTECHN | 810300 | |
| WALKER MANUFACTURING | 22767 |
