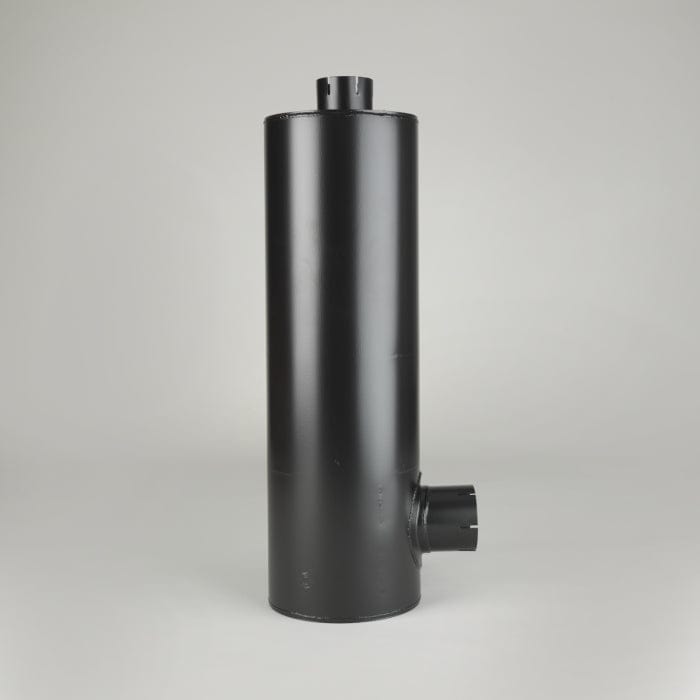

Muffler, Round Style 3 - Donaldson M085084

Attributes

• Inlet Diameter: 89 mm (3.50 inch)
• Outlet Diameter: 89.28 mm (3.51 inch)
• Body Diameter Maximum: 215.14 mm (8.47 inch)
• Body Length: 685.8 mm (27.00 inch)
• Overall Length: 749.3 mm (29.50 inch)
• Rated Flow LR: 13.1 m³/min (463 cfm)
• Rated Flow MR: 18.5 m³/min (653 cfm)
• Rated Flow HR: 22.7 m³/min (802 cfm)
• Back Pressure Low-Range: 25 mm Hg (0.98 inch Hg)
• Back Pressure Mid-Range: 51 mm Hg (2.01 inch Hg)
• Back Pressure High-Range: 76 mm Hg (2.99 inch Hg)
• Attenuation LR: 15 dBA
• Attenuation HR: 20 dBA
• Inlet Clock Position: 3
• Outlet Clock Position: 6
• Style: Style 3

Packaged Dimensions

• Packaged Length: 0.781 m (31.25 inch)
• Packaged Width: 0.299 m (11.94 inch)
• Packaged Height: 0.220 m (8.81 inch)
• Packaged Weight: 9.693 kg (21.35 lb)
• Packaged Volume: 0.053 m3 (1.90 ft3)

Other Information

• Country of Origin: United States
• NMFC Code: 125850-07
• HTS Code: 8708923500
• UPC Code: 742330004920
