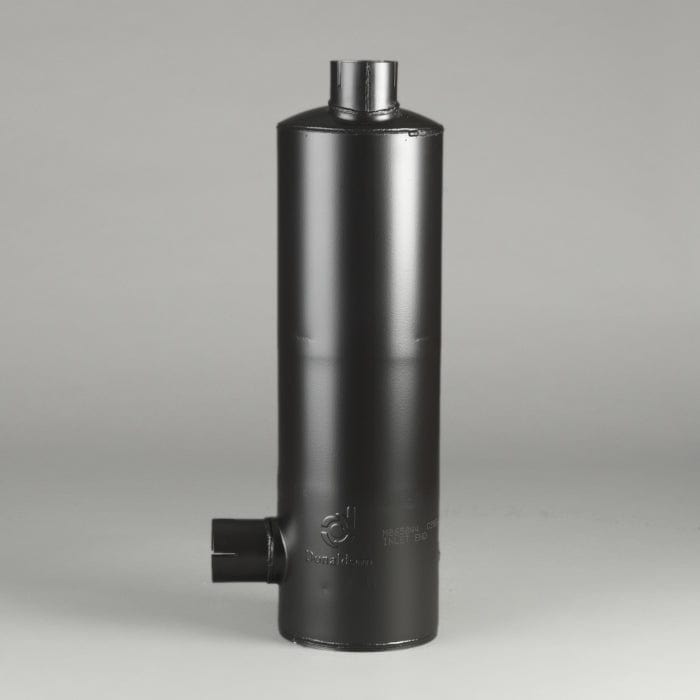

Muffler, Round Style 3 - Donaldson M065044
Muffler, Round Style 3 - Donaldson M065044
Regular price
£275.38
Regular price
Sale price
£275.38
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson M065044
Muffler, Round Style 3| Inlet Diameter | 2.51 inch (63.88 mm) |
| Outlet Diameter | 2.51 inch (63.88 mm) |
| Body Diameter Maximum | 6.61 inch (168 mm) |
| Body Length | 20.63 inch (524.13 mm) |
| Overall Length | 23.50 inch (596.9 mm) |
| Rated Flow LR | 325 cfm (9.2 m³/min) |
| Rated Flow MR | 459 cfm (13 m³/min) |
| Rated Flow HR | 565 cfm (16 m³/min) |
| Back Pressure Low-Range | 0.98 inch Hg (25 mm Hg) |
| Back Pressure Mid-Range | 2.01 inch Hg (51 mm Hg) |
| Back Pressure High-Range | 2.99 inch Hg (76 mm Hg) |
| Attenuation LR | 15 dBA |
| Attenuation HR | 20 dBA |
| Inlet Clock Position | 6:00 |
| Outlet Clock Position | 9:00 |
| Style | Style 3 |
Share
Collapsible content
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| A P PARTS | 3925 | |
| AG CHEM EQUIPMENT | 34818 | |
| AGCO | WR34818 | |
| AHLMANN | 4197837A | |
| ALLMAND BROS | ME421M | |
| AP EXHAUST PRODUCTS INC | 3925 | |
| B R LEE INDUSTRIES | 34074 | |
| BOMBARDIER | 114646800 | |
| CASE/CASE IH | 20007402 | |
| CASE/CASE IH | 153612123 | |
| CASE/CASE IH | 3612123 | |
| CASE/CASE IH | 920007402 | |
| CATERPILLAR | 9N8198 | |
| CEDARAPIDS | 4571000114 | |
| CEDARAPIDS | 457100114 | |
| CHARDONNET | 7406504400 | |
| CLARK,J.L. | 10043224X | |
| CLARK,J.L. | E100154 | |
| CMI | 23570049 | |
| CMI | 4002935000 | |
| COMPAIR | CZ78312 | |
| COMPAIR | 78312 | |
| DYNAFLEX | 884250191 | |
| DYNAFLEX | 88H250191 | |
| FIAT | 3612123 | |
| FIAT | 153612123 | |
| FIAT | 20007402 | |
| FORD | 9575M065044 | |
| GENERAC | C1341 | |
| GETMAN | 605323 | |
| GRIMMER SCHMIDT | 1036808 | |
| GRIMMER SCHMIDT | 60026 | |
| GROVE | 7642000075 | |
| HAY & FORAGE | 1X39440007 | |
| HBM-NOBAS | 477000005 | |
| HEAVY DUTY MFG | 31081 | |
| HERKULES (TELSNIG) | 400005007 | |
| HOBART | EB6010 | |
| HURRICANE COMPRESSOR | 60026 | |
| HYDREMA | 10001352 | |
| INGERSOLL RAND | 36323277 | |
| INGERSOLL RAND | 22320220 | |
| INTERNATIONAL | DCM065044 | |
| ISUZU | X14152022 | |
| JLG | 10135094 | |
| JOY | 50187850015 | |
| KOHLER | 324207 | |
| KRAMER | M3612123 | |
| KUT KWIK | 21136 | |
| KUT KWIK | M065072 | |
| LEROI | 78312 | |
| LOESING | 020147 | |
| LOESING | 20147 | |
| LULL | 37700X | |
| MANITOWOC | 7642000075 | |
| MARINE TRAVELIFT, INC. | 602616 | |
| MORBARK | 29323084 | |
| NELSON | 86191M | |
| NEW HOLLAND | 153612123 | |
| NEW HOLLAND | 20007402 | |
| OMNIQUIP PARTS WORLD WIDE | 10135094 | |
| PERKINS | 13000243 | |
| PETTIBONE | 53501063 | |
| PETTIBONE | LL847429 | |
| PRINOTH | 11464680044 | |
| RAYGO | 9N8198 | |
| STEMCO | 1901335 | |
| SULLIVAN PALATEK | 50187850015 | |
| SULLIVAN PALATEK | 501878515 | |
| TRUCKEX | 3925 | |
| TYMCO | 12855 | |
| VERMEER | 960570011 | |
| VERMEER | 96057001 | |
| WALGAHN-MOTORENTECHN | 810274 | |
| WALGAHN-MOTORENTECHN | 00810274 | |
| WALKER MANUFACTURING | 22770 | |
| WILMAR | 34818 |
