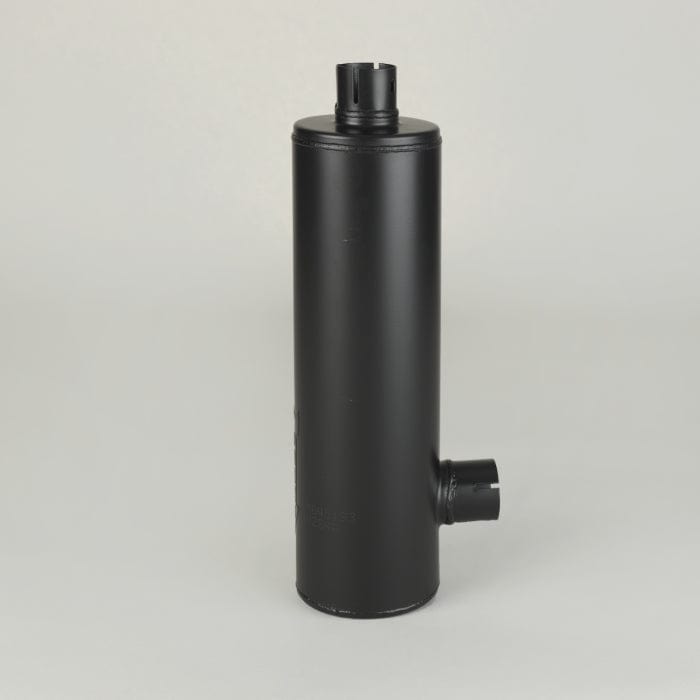

Muffler, Round Style 3 - Donaldson M045193

Attributes

• Inlet Diameter: 41.78 mm (1.64 inch)
• Outlet Diameter: 41 mm (1.61 inch)
• Body Diameter Maximum: 111 mm (4.37 inch)
• Body Length: 350 mm (13.78 inch)
• Overall Length: 400 mm (15.75 inch)
• Rated Flow LR: 3.6 m³/min (127 cfm)
• Rated Flow MR: 5.1 m³/min (180 cfm)
• Rated Flow HR: 6.2 m³/min (219 cfm)
• Back Pressure Low-Range: 25 mm Hg (0.98 inch Hg)
• Back Pressure Mid-Range: 51 mm Hg (2.01 inch Hg)
• Back Pressure High-Range: 76 mm Hg (2.99 inch Hg)
• Attenuation LR: 12 dBA
• Attenuation HR: 18 dBA
• Inlet Clock Position: 12
• Style: Style 3

Packaged Dimensions

• Packaged Length: 0.169 m (6.75 inch)
• Packaged Width: 0.131 m (5.25 inch)
• Packaged Height: 0.406 m (16.25 inch)
• Packaged Weight: 2.088 kg (4.60 lb)
• Packaged Volume: 0.009 m3 (0.33 ft3)

Other Information

• Country of Origin: United States
• NMFC Code: 125850-08
• HTS Code: 8708923500
• UPC Code: 742330004470
