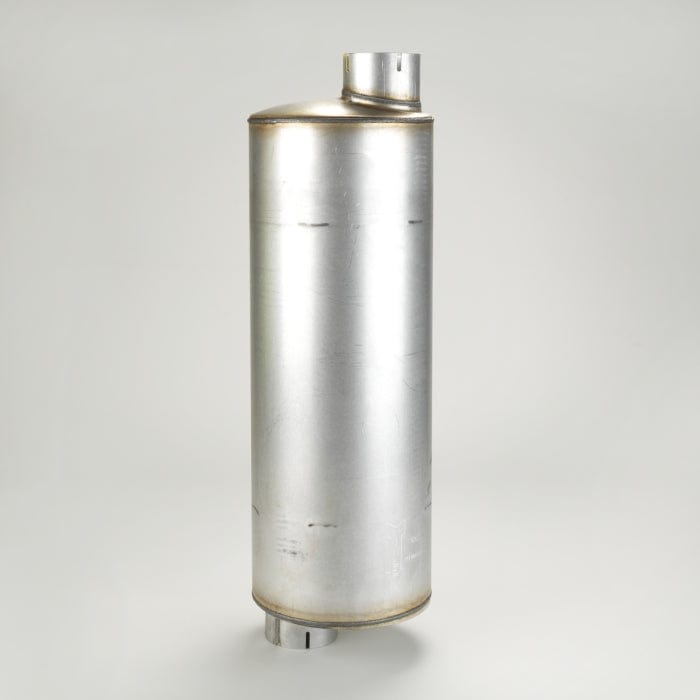

Muffler, Round Style 2 - Donaldson M100048
Muffler, Round Style 2 - Donaldson M100048
Regular price
£363.36
Regular price
Sale price
£363.36
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson M100048
Muffler, Round Style 2| Inlet Diameter | 4.02 inch (102.11 mm) |
| Outlet Diameter | 4.02 inch (102.11 mm) |
| Body Diameter Maximum | 10.08 inch (256 mm) |
| Body Length | 27.12 inch (688.8 mm) |
| Overall Length | 33.50 inch (850.9 mm) |
| Rated Flow LR | 982 cfm (27.8 m³/min) |
| Rated Flow MR | 1391 cfm (39.4 m³/min) |
| Rated Flow HR | 1702 cfm (48.2 m³/min) |
| Back Pressure Low-Range | 0.98 inch Hg (25 mm Hg) |
| Back Pressure Mid-Range | 2.01 inch Hg (51 mm Hg) |
| Back Pressure High-Range | 2.99 inch Hg (76 mm Hg) |
| Attenuation LR | 15 dBA |
| Attenuation HR | 20 dBA |
| Inlet Clock Position | 6:00 |
| Outlet Clock Position | 12:00 |
| Style | Style 2 |
Share
Collapsible content
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| A P PARTS | 3669 | |
| A P PARTS | 3669Q | |
| AG CHEM EQUIPMENT | WR37235 | |
| AGCO | WR37235 | |
| AMERICAN AUGERS | 48BM5123 | |
| AP EXHAUST PRODUCTS INC | 3669 | |
| APE INDUSTRI AB | 3669 | |
| ARDCO | ENE0004 | |
| ASTEC UNDERGROUND | 306245207 | |
| BADGER | 78103131 | |
| BARBER-GREENE | 29H77 | |
| CASE/CASE IH | S505881 | |
| CENTURY II | 27Q334 | |
| CENTURY II | 27Z1115 | |
| CHARDONNET | 7410004800 | |
| CHRYSLER | 2907822 | |
| CLARK | 1513792 | |
| CLARK | 2907822 | |
| CLARK | 6002355 | |
| CRANE CARRIER | 21042 | |
| CRANE CARRIER | 21092 | |
| CUB CADET | 549472C1 | |
| CUB CADET | 762783C91 | |
| DART | MTM100048 | |
| DITCH WITCH | 196332A | |
| DRESSER | 101877 | |
| DROTT | 505881 | |
| EAGLE TRUCK PRODUCTS | E206 | |
| FMC | 2236408 | |
| FMC | 2672159 | |
| FORD | D3HS5230GA | |
| FORD | C1555230BD | |
| FORD | 446583 | |
| FORD | C1TT5230DB | |
| FORD | C5TS5230A | |
| FORD | C7TZ5230A | |
| GALION | D101877 | |
| GEHL | 41889 | |
| GEHL | 041889 | |
| GINAF | OG0000017213 | |
| GROVE | 7642000009 | |
| GROVE | 764200009 | |
| GROVE | SKC852117 | |
| GROVE | 7642800000 | |
| HEAVY DUTY MFG | 30015 | |
| HEAVY DUTY MFG | 31031 | |
| INGERSOLL RAND | 90600424 | |
| INGERSOLL RAND | 22320246 | |
| INSLEY | 520340 | |
| INTERNATIONAL | DCM100048 | |
| JLG | 3220049 | |
| KOEHRING | 125656 | |
| KOEHRING | 420C4361 | |
| KOMATSU | 101877 | |
| KOMATSU | 108936 | |
| LOESING | 22038 | |
| LOESING | 022038 | |
| MANITOWOC | 7642000009 | |
| MANITOWOC | 5369770 | |
| MI-JACK | 33170033 | |
| MINNPAR | M6002355 | |
| NELSON | 86168M | |
| NEOPART | GH0201001 | |
| NEOPLAN | EH0201001 | |
| NEOPLAN | GH0201001 | |
| P & H | 27Q334 | |
| P & H | 27Z1115 | |
| PACCAR | 0561649 | |
| PACCAR | 561649 | |
| PETTIBONE | 0RO23180090 | |
| PETTIBONE | ORA23180090 | |
| PETTIBONE | LL847160 | |
| RIKER | 10024 | |
| RIKER | 10915 | |
| RIKER | HD6017 | |
| SANDVIK | 04710300 | |
| SICARD | 00561649 | |
| SICARD | 561649 | |
| STEMCO | 1909887 | |
| SULLIVAN PALATEK | 050187850027 | |
| SULLIVAN PALATEK | 501878507 | |
| SULLIVAN PALATEK | 501878527 | |
| TAMROCK | 4710300 | |
| TAMROCK | 04710300 | |
| TEREX | 125672 | |
| TEREX | 27Q334 | |
| TOWMOTOR | 680401 | |
| VERMEER | 283389001 | |
| VERMEER | 238744001 | |
| VERMEER | 2387440011 | |
| VOLVO | G695424 | |
| WALGAHN-MOTORENTECHN | 00810325 | |
| WALGAHN-MOTORENTECHN | 810325 | |
| WALKER MANUFACTURING | 21833 | |
| WHITE | 027076545 |
