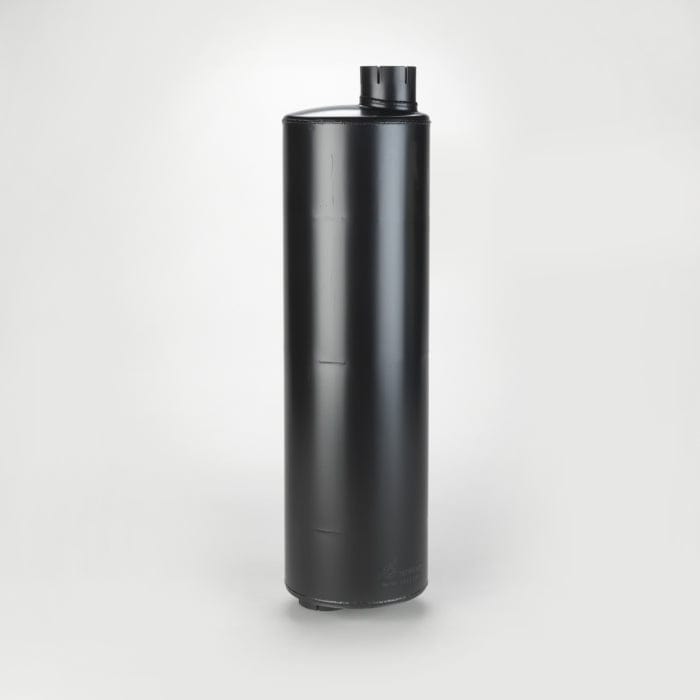

Muffler, Round Style 2 - Donaldson M085078

Attributes

• Inlet Diameter: 76.66 mm (3.02 inch)
• Outlet Diameter: 76.66 mm (3.02 inch)
• Body Diameter Maximum: 214.88 mm (8.46 inch)
• Body Length: 698.5 mm (27.50 inch)
• Overall Length: 812.8 mm (32.00 inch)
• Rated Flow LR: 15.8 m³/min (558 cfm)
• Rated Flow MR: 22.3 m³/min (788 cfm)
• Rated Flow HR: 27.3 m³/min (964 cfm)
• Back Pressure Low-Range: 25 mm Hg (0.98 inch Hg)
• Back Pressure Mid-Range: 51 mm Hg (2.01 inch Hg)
• Back Pressure High-Range: 76 mm Hg (2.99 inch Hg)
• Attenuation LR: 18 dBA
• Attenuation HR: 22 dBA
• Inlet Clock Position: 6
• Outlet Clock Position: 12
• Style: Style 2

Packaged Dimensions

• Packaged Length: 0.881 m (35.25 inch)
• Packaged Width: 0.219 m (8.75 inch)
• Packaged Height: 0.219 m (8.75 inch)
• Packaged Weight: 9.716 kg (21.40 lb)
• Packaged Volume: 0.044 m3 (1.56 ft3)

Other Information

• Country of Origin: United States
• NMFC Code: 125850-09
• HTS Code: 8708923500
• UPC Code: 742330004906
