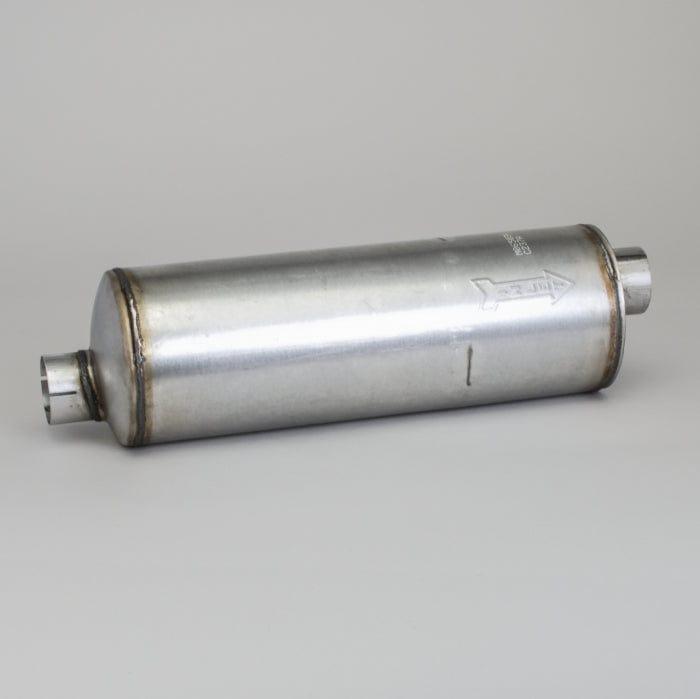

Muffler, Round Style 2 - Donaldson M065034

Attributes

• Inlet Diameter: 63.88 mm (2.51 inch)
• Outlet Diameter: 63.88 mm (2.51 inch)
• Body Diameter Maximum: 168 mm (6.61 inch)
• Body Length: 465.1 mm (18.31 inch)
• Overall Length: 584.2 mm (23.00 inch)
• Rated Flow LR: 11.6 m³/min (410 cfm)
• Rated Flow MR: 16.4 m³/min (579 cfm)
• Rated Flow HR: 20.1 m³/min (710 cfm)
• Back Pressure Low-Range: 25 mm Hg (0.98 inch Hg)
• Back Pressure Mid-Range: 51 mm Hg (2.01 inch Hg)
• Back Pressure High-Range: 76 mm Hg (2.99 inch Hg)
• Attenuation LR: 15 dBA
• Attenuation HR: 20 dBA
• Inlet Clock Position: 6
• Outlet Clock Position: 12
• Style: Style 2

Packaged Dimensions

• Packaged Length: 0.620 m (24.80 inch)
• Packaged Width: 0.200 m (8.00 inch)
• Packaged Height: 0.190 m (7.60 inch)
• Packaged Weight: 4.447 kg (9.80 lb)
• Packaged Volume: 0.024 m3 (0.87 ft3)

Other Information

• Country of Origin: United States
• NMFC Code: 125850-09
• HTS Code: 8708923500
• UPC Code: 742330004647
