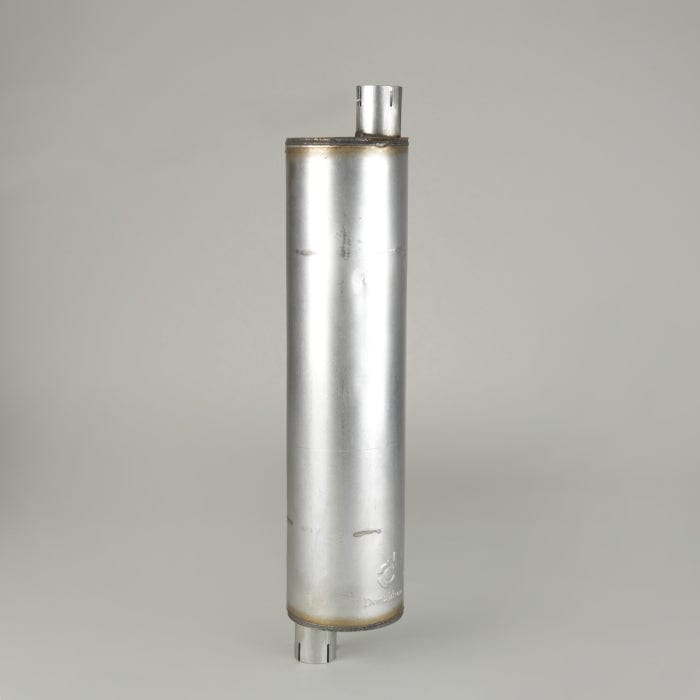

Muffler, Round Style 2 - Donaldson M060232

Attributes

• Inlet Diameter: 51.31 mm (2.02 inch)
• Outlet Diameter: 51.31 mm (2.02 inch)
• Body Diameter Maximum: 152 mm (5.98 inch)
• Body Length: 610 mm (24.02 inch)
• Overall Length: 736.6 mm (29.00 inch)
• Rated Flow LR: 8.4 m³/min (297 cfm)
• Rated Flow MR: 11.9 m³/min (420 cfm)
• Rated Flow HR: 14.6 m³/min (516 cfm)
• Back Pressure Low-Range: 25 mm Hg (0.98 inch Hg)
• Back Pressure Mid-Range: 51 mm Hg (2.01 inch Hg)
• Back Pressure High-Range: 76 mm Hg (2.99 inch Hg)
• Attenuation LR: 15 dBA
• Attenuation HR: 20 dBA
• Inlet Clock Position: 6
• Outlet Clock Position: 12
• Style: Style 2

Packaged Dimensions

• Packaged Length: 0.925 m (37.00 inch)
• Packaged Width: 0.169 m (6.75 inch)
• Packaged Height: 0.163 m (6.50 inch)
• Packaged Weight: 4.608 kg (10.15 lb)
• Packaged Volume: 0.026 m3 (0.94 ft3)

Other Information

• Country of Origin: United States
• NMFC Code: 125850-08
• HTS Code: 8708923500
• UPC Code: 742330004586
