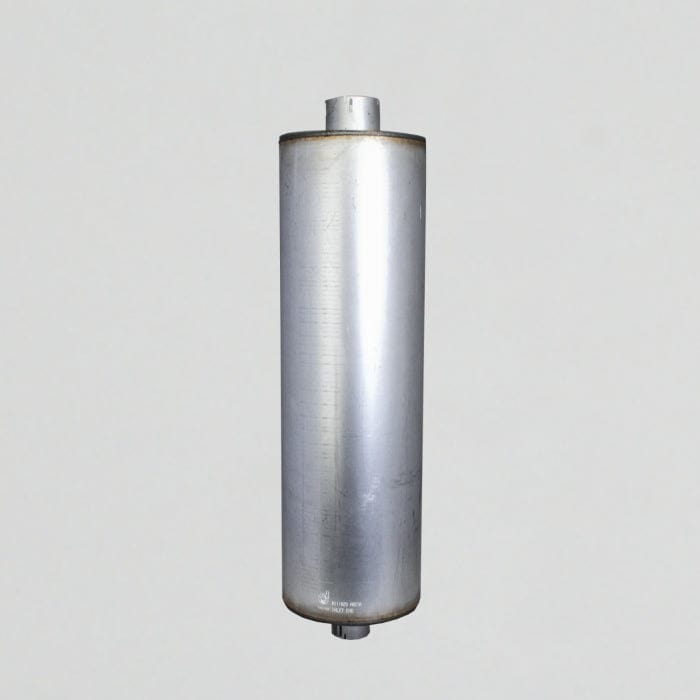

Muffler, Round Style 1 - Donaldson M111029
Muffler, Round Style 1 - Donaldson M111029
Regular price
£364.08
Regular price
Sale price
£364.08
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson M111029
Muffler, Round Style 1| Inlet Diameter | 3.02 inch (76.66 mm) |
| Outlet Diameter | 4.02 inch (102.11 mm) |
| Body Diameter Maximum | 11.08 inch (281.4 mm) |
| Body Length | 36.00 inch (914.4 mm) |
| Overall Length | 42.00 inch (1066.8 mm) |
| Rated Flow LR | 1264 cfm (35.8 m³/min) |
| Rated Flow MR | 1790 cfm (50.7 m³/min) |
| Rated Flow HR | 2193 cfm (62.1 m³/min) |
| Back Pressure Low-Range | 0.98 inch Hg (25 mm Hg) |
| Back Pressure Mid-Range | 2.01 inch Hg (51 mm Hg) |
| Back Pressure High-Range | 2.99 inch Hg (76 mm Hg) |
| Attenuation LR | 13 dBA |
| Attenuation HR | 19 dBA |
| Style | Style 1 |
Share
Collapsible content
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| FREIGHTLINER | 0419131004 | |
| FREIGHTLINER | 418334002 | |
| FREIGHTLINER | 419131004 | |
| FREIGHTLINER | 419131007 | |
| MERCEDES-BENZ | 0418334002 | |
| MERCEDES-BENZ | 0419131004 | |
| WALKER MANUFACTURING | 22991 |
