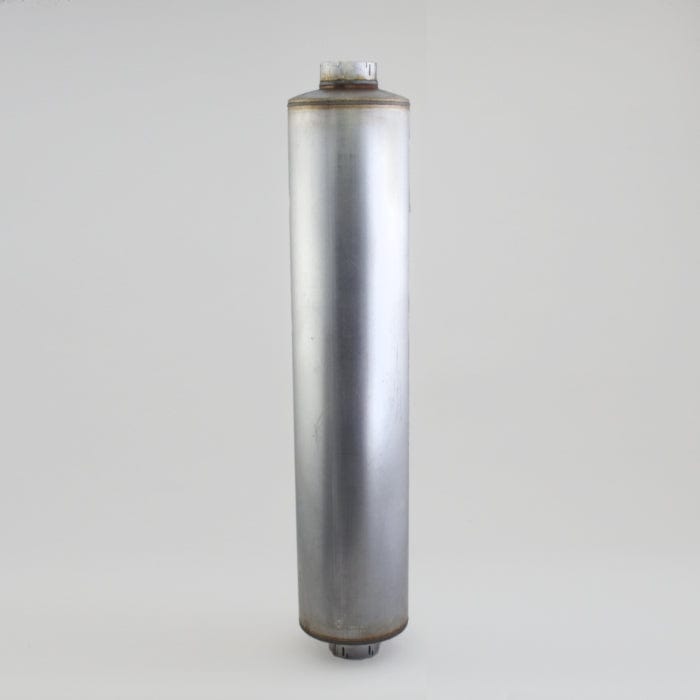

Muffler, Round Style 1 - Donaldson M110849

Attributes

• Inlet Diameter: 127.64 mm (5.03 inch)
• Outlet Diameter: 127.64 mm (5.03 inch)
• Body Diameter Maximum: 277.61 mm (10.93 inch)
• Body Length: 1276.35 mm (50.25 inch)
• Overall Length: 1447.8 mm (57.00 inch)
• Rated Flow LR: 50.2 m³/min (1773 cfm)
• Rated Flow MR: 70.9 m³/min (2504 cfm)
• Rated Flow HR: 83.5 m³/min (2949 cfm)
• Back Pressure Low-Range: 25 mm Hg (0.98 inch Hg)
• Back Pressure Mid-Range: 51 mm Hg (2.01 inch Hg)
• Back Pressure High-Range: 76 mm Hg (2.99 inch Hg)
• Attenuation LR: 19 dBA
• Attenuation HR: 25 dBA
• Style: Style 1

Packaged Dimensions

• Packaged Length: 1.463 m (58.50 inch)
• Packaged Width: 0.288 m (11.50 inch)
• Packaged Height: 0.281 m (11.25 inch)
• Packaged Weight: 21.454 kg (47.26 lb)
• Packaged Volume: 0.123 m3 (4.38 ft3)

Other Information

• Country of Origin: United States
• NMFC Code: 125850-08
• HTS Code: 8708923500
• UPC Code: 742330117354
