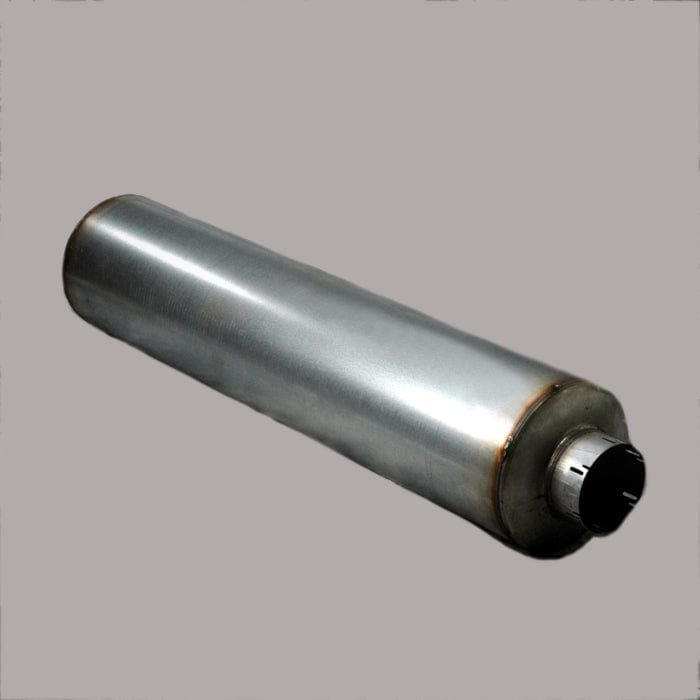

Muffler, Round Style 1 - Donaldson M100580
Muffler, Round Style 1 - Donaldson M100580
Regular price
£330.22
Regular price
Sale price
£330.22
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson M100580
Muffler, Round Style 1| Inlet Diameter | 5.03 inch (127.64 mm) |
| Outlet Diameter | 5.03 inch (127.64 mm) |
| Body Diameter Maximum | 10.08 inch (256 mm) |
| Body Length | 44.44 inch (1128.78 mm) |
| Overall Length | 51.00 inch (1295.4 mm) |
| Rated Flow LR | 1564 cfm (44.3 m³/min) |
| Rated Flow MR | 2214 cfm (62.7 m³/min) |
| Rated Flow HR | 2529 cfm (71.6 m³/min) |
| Back Pressure Low-Range | 0.98 inch Hg (25 mm Hg) |
| Back Pressure Mid-Range | 2.01 inch Hg (51 mm Hg) |
| Back Pressure High-Range | 2.99 inch Hg (76 mm Hg) |
| Attenuation LR | 19 dBA |
| Attenuation HR | 25 dBA |
| Style | Style 1 |
Share
Collapsible content
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| A P PARTS | 3723 | |
| ACRAFIT | M10531 | |
| COMPAIR | 1075A84700 | |
| DART | K16854 | |
| DART | MFM100580 | |
| FORD | 9575M100580 | |
| FREIGHTLINER | DNM100580 | |
| FREIGHTLINER | M100585 | |
| FREIGHTLINER | DNM100585 | |
| FREIGHTLINER | A0414075000 | |
| FREIGHTLINER | A04140750 | |
| HEAVY DUTY MFG | 31580 | |
| HOIST LIFTTRUCK MANUFACTURING | M15877 | |
| INDIANA PHOENIX INC | 40500 | |
| INTERNATIONAL | 1688662C1 | |
| INTERNATIONAL | DCM100580 | |
| INTERNATIONAL | 1647375C1 | |
| KENWORTH | MFM100580 | |
| KENWORTH | K16854BULK | |
| KENWORTH | K16854 | |
| LEROI | 78273 | |
| LETOURNEAU | 4215997 | |
| LINK BELT | F2A0375 | |
| MACK | 2191M100580 | |
| MACK | 2ME3104 | |
| MASSEY FERGUSON | M101134 | |
| MCNEILUS | 1644490 | |
| MCNEILUS | 3224136 | |
| MERCEDES-BENZ | A0414075000 | |
| MERCEDES-BENZ | V98HA5225AA | |
| NELSON | 86533M | |
| NELSON | 86531M | |
| OSHKOSH | 1644490 | |
| OSHKOSH | 3224136 | |
| PACCAR | K16854 | |
| PETERBILT | 1413842001 | |
| PETERBILT | MFM100580 | |
| SCANIA | LO2872 | |
| STEMCO | 1909872 | |
| VOLVO | M100585 | |
| VOLVO | 230010081 |
