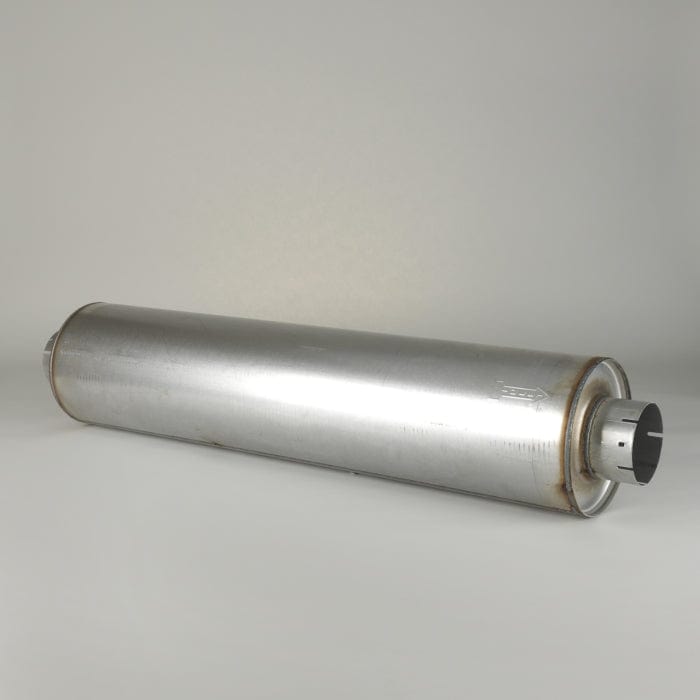

Muffler, Round Style 1 - Donaldson M100463
Muffler, Round Style 1 - Donaldson M100463
Regular price
£264.68
Regular price
Sale price
£264.68
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson M100463
Muffler, Round Style 1| Inlet Diameter | 5.03 inch (127.64 mm) |
| Outlet Diameter | 5.03 inch (127.64 mm) |
| Body Diameter Maximum | 10.06 inch (255.5 mm) |
| Body Length | 44.44 inch (1128.8 mm) |
| Overall Length | 51.00 inch (1295.4 mm) |
| Rated Flow LR | 2338 cfm (66.2 m³/min) |
| Rated Flow MR | 3097 cfm (87.7 m³/min) |
| Rated Flow HR | 3260 cfm (92.3 m³/min) |
| Back Pressure Low-Range | 0.98 inch Hg (25 mm Hg) |
| Back Pressure Mid-Range | 2.01 inch Hg (51 mm Hg) |
| Back Pressure High-Range | 2.99 inch Hg (76 mm Hg) |
| Attenuation LR | 13 dBA |
| Attenuation HR | 18 dBA |
| Style | Style 1 |
Share
Collapsible content
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| A P PARTS | 3640Q | |
| A P PARTS | 3640 | |
| AP EXHAUST PRODUCTS INC | 3640 | |
| ASTEC UNDERGROUND | 22000214 | |
| BADGER | 76046685 | |
| BADGER | 520333 | |
| BADGER | 76072870 | |
| CMI | 4002827000 | |
| CMI | P2980524292 | |
| COMPAIR | 27006340 | |
| CRANE CARRIER | 21090 | |
| CRANE CARRIER | 21093 | |
| CUMMINS | 10000468 | |
| DART | MPM100463 | |
| DEMAG | 22691640 | |
| FMC | 28A1475 | |
| FORD | D7HT5225BEA | |
| FORD | 9575M100463 | |
| FORD | 9575MPM100463P | |
| FORD | D7HT5230FYA | |
| FORD | D8HZ5230AB | |
| FORD | D8HZ5230AV | |
| FORD | D8HS5225EA | |
| FORD | D8HS525EA | |
| FORD | E1HS5230AA | |
| FREIGHTLINER | DNMPM100463 | |
| FREIGHTLINER | DNM100463 | |
| FREIGHTLINER | A04117171 | |
| FREIGHTLINER | A04117170 | |
| FREIGHTLINER | A04122700 | |
| GROVE | 7642000024 | |
| GROVE | 7642000054 | |
| GROVE | 7642000041 | |
| HAVAM | HD4140 | |
| HEAVY DUTY MFG | 31063 | |
| HEAVY DUTY MFG | 31224 | |
| INGERSOLL RAND | 58167925 | |
| INSLEY | 520333 | |
| INTERNATIONAL | 475354C1 | |
| INTERNATIONAL | 501463C1 | |
| INTERNATIONAL | 500873C91 | |
| INTERNATIONAL | 500872C1 | |
| INTERNATIONAL | 486089C1 | |
| INTERNATIONAL | DCM100463 | |
| INTERNATIONAL | 548287C1 | |
| IVECO | 222434 | |
| IVECO | 931190 | |
| KENWORTH | D45000307 | |
| KENWORTH | MPM100463 | |
| KOEHRING | 125675 | |
| KOEHRING | 420V6308 | |
| KOMATSU | 22691640 | |
| KOMATSU | 27006340 | |
| LETOURNEAU | 4124051 | |
| LINK BELT | 28A1475 | |
| MACK | 2191MPM100463 | |
| MACK | 2ME248 | |
| MACK | 2ME29301P18 | |
| MACK | 2ME29301P17 | |
| MACK | 2ME29301P20 | |
| MACK | 2ME29301P19 | |
| MACK | 2ME49301P3 | |
| MACK | 2ME49301P5 | |
| MACK | 2ME236P1 | |
| MANITOWOC | 5369790 | |
| MANITOWOC | 5369690 | |
| MANITOWOC | 7642000054 | |
| MANITOWOC | 536969 | |
| MARATHON EQPT LTD | 4103898 | |
| MERCEDES-BENZ | DNMPM100463 | |
| NELSON | 86130M | |
| NEW HOLLAND | 3612179 | |
| NEW HOLLAND | D8HS5225EA | |
| NEW HOLLAND | 153612179 | |
| OSHKOSH | 69427B | |
| OSHKOSH | 9HB910 | |
| P & H | 27U126 | |
| REEDRILL | 43328 | |
| REICHDRILL | PS417415 | |
| RENAULT VI | 5430127348 | |
| RIKER | 10920 | |
| RIKER | 10029 | |
| RIMPULL | 225043 | |
| RIMPULL | 225048 | |
| RUSTON BUCYRUS | 46651050 | |
| RUSTON BUCYRUS | 46651026 | |
| SPARTAN MOTORS | 10009862 | |
| STEMCO | 1909898 | |
| TAMROCK | 504808 | |
| TEREX | 15251993 | |
| TEREX | 27006340 | |
| TRUCKEX | 3640 | |
| UNIT RIG EQUIPMENT | 52892 | |
| VERMEER | 720190011 | |
| VOLVO | 557686 | |
| VOLVO | 49039303 | |
| VOLVO | 1114917 | |
| VOLVO | 49044343 | |
| VOLVO | 049044343 | |
| VOLVO | V1114917 | |
| VOLVO | 1594513 | |
| VOLVO | 230010047 | |
| VOLVO | 230010011 | |
| VOLVO | 230013417 | |
| VOLVO | 230013409 | |
| VOLVO PENTA | 1594513 | |
| WALGAHN-MOTORENTECHN | 810333 | |
| WALGAHN-MOTORENTECHN | 810332 | |
| WALGAHN-MOTORENTECHN | 810330 | |
| WALKER MANUFACTURING | 22851 | |
| WESTERN STAR TRUCK | 230013455 | |
| WESTERN STAR TRUCK | 49044343 | |
| WESTERN STAR TRUCK | 49039303 | |
| WHITE | 230010008 | |
| WHITE | 49039303 | |
| WHITE | 230010047 |
