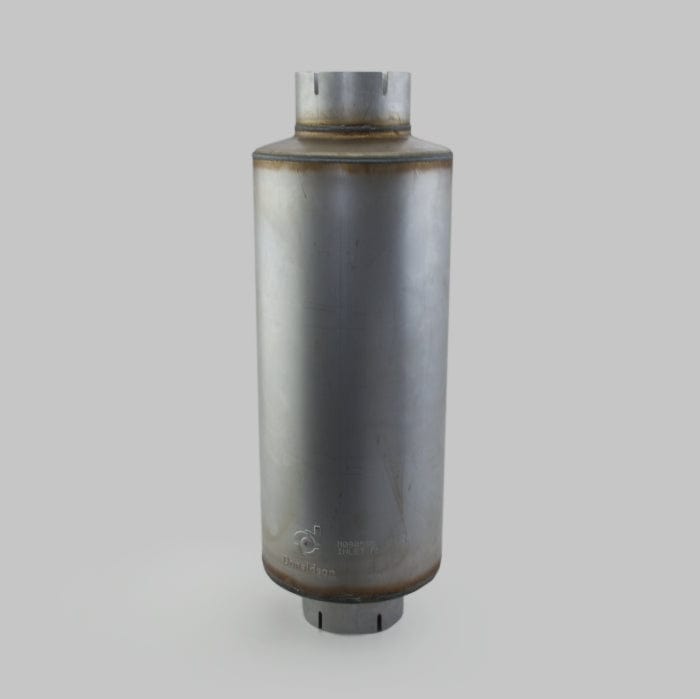

Muffler, Round Style 1 - Donaldson M090595
Muffler, Round Style 1 - Donaldson M090595
Regular price
£235.30
Regular price
Sale price
£235.30
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson M090595
Muffler, Round Style 1| Inlet Diameter | 5.03 inch (127.64 mm) |
| Outlet Diameter | 5.03 inch (127.64 mm) |
| Body Diameter Maximum | 8.97 inch (227.84 mm) |
| Body Length | 20.00 inch (508 mm) |
| Overall Length | 26.50 inch (673 mm) |
| Rated Flow LR | 1430 cfm (40.5 m³/min) |
| Rated Flow MR | 2024 cfm (57.3 m³/min) |
| Rated Flow HR | 2476 cfm (70.1 m³/min) |
| Back Pressure Low-Range | 0.98 inch Hg (25 mm Hg) |
| Back Pressure Mid-Range | 2.01 inch Hg (51 mm Hg) |
| Back Pressure High-Range | 2.99 inch Hg (76 mm Hg) |
| Attenuation LR | 10 dBA |
| Attenuation HR | 15 dBA |
| Style | Style 1 |
Share
Collapsible content
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| A P PARTS | 3895 | |
| ALLMAND BROS | ME458M | |
| AP EXHAUST PRODUCTS INC | 3895 | |
| ASTEC UNDERGROUND | 3014052056 | |
| CAMECO | CB01476929 | |
| DART | MFM090595 | |
| DYNAFLEX | 87500674 | |
| DYNAFLEX | 87500674Q | |
| EAGLE TRUCK PRODUCTS | E117 | |
| FORD | 9575M090595 | |
| FREIGHTLINER | DNM090595 | |
| HEAVY DUTY MFG | 31253 | |
| INTERNATIONAL | DCM090595 | |
| MACK | 2191M090595 | |
| NELSON | 200238N | |
| STEMCO | 1901336 | |
| STEMCO | 1901383 | |
| SULLIVAN PALATEK | 1878529 | |
| SULLIVAN PALATEK | 050187850029 | |
| SULLIVAN PALATEK | 501878529 | |
| SULLIVAN PALATEK | 05018750029 | |
| TRUCKEX | 3895 | |
| VERMEER | 180005348 | |
| WALKER MANUFACTURING | 22964 | |
| WALKER MANUFACTURING | 22771 |
