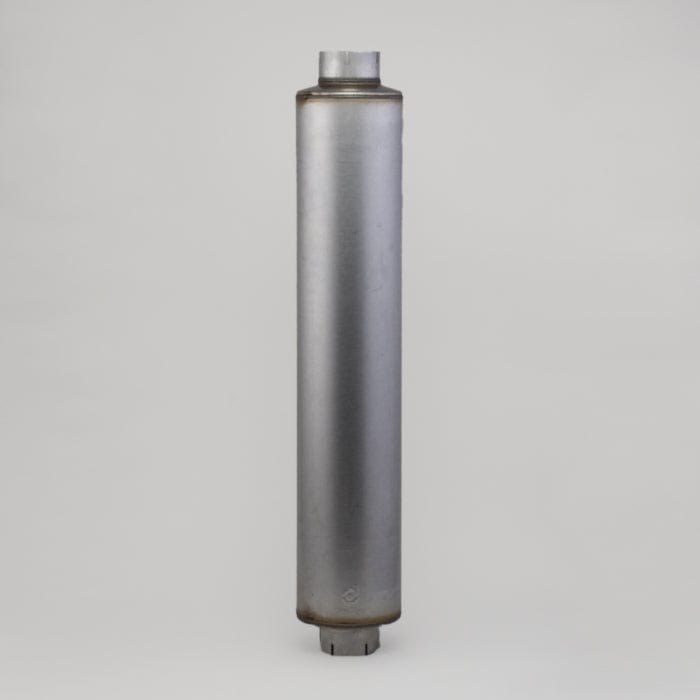

Muffler, Round Style 1 - Donaldson M090074

Attributes

• Inlet Diameter: 127.64 mm (5.03 inch)
• Outlet Diameter: 127.64 mm (5.03 inch)
• Body Diameter Maximum: 228.85 mm (9.01 inch)
• Body Length: 1128.78 mm (44.44 inch)
• Overall Length: 1295.4 mm (51.00 inch)
• Rated Flow LR: 47.2 m³/min (1667 cfm)
• Rated Flow MR: 66.7 m³/min (2355 cfm)
• Rated Flow HR: 81.7 m³/min (2885 cfm)
• Back Pressure Low-Range: 25 mm Hg (0.98 inch Hg)
• Back Pressure Mid-Range: 51 mm Hg (2.01 inch Hg)
• Back Pressure High-Range: 76 mm Hg (2.99 inch Hg)
• Attenuation LR: 13 dBA
• Attenuation HR: 18 dBA
• Style: Style 1

Packaged Dimensions

• Packaged Length: 1.319 m (52.75 inch)
• Packaged Width: 0.238 m (9.50 inch)
• Packaged Height: 0.244 m (9.75 inch)
• Packaged Weight: 13.141 kg (28.95 lb)
• Packaged Volume: 0.079 m3 (2.83 ft3)

Other Information

• Country of Origin: United States
• NMFC Code: 125850-08
• HTS Code: 8708923500
• UPC Code: 742330005064
