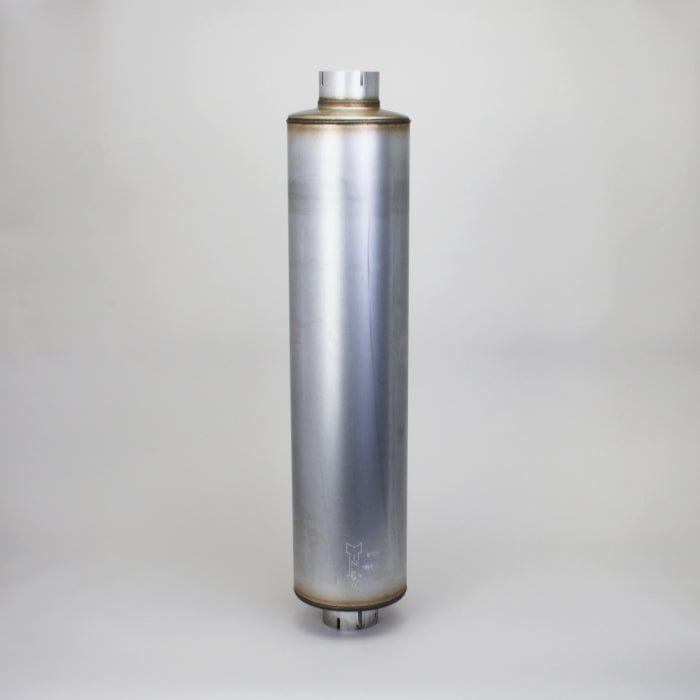

Muffler, Round Style 1 - Donaldson M085171

Attributes

• Inlet Diameter: 102.12 mm (4.02 inch)
• Outlet Diameter: 102.12 mm (4.02 inch)
• Body Diameter Maximum: 214.88 mm (8.46 inch)
• Body Length: 866.65 mm (34.12 inch)
• Overall Length: 1016 mm (40.00 inch)
• Rated Flow LR: 50.9 m³/min (1798 cfm)
• Rated Flow MR: 72.1 m³/min (2546 cfm)
• Rated Flow HR: 88.3 m³/min (3118 cfm)
• Back Pressure Low-Range: 25 mm Hg (0.98 inch Hg)
• Back Pressure Mid-Range: 51 mm Hg (2.01 inch Hg)
• Back Pressure High-Range: 76 mm Hg (2.99 inch Hg)
• Attenuation LR: 8 dBA
• Attenuation HR: 12 dBA
• Style: Style 1

Packaged Dimensions

• Packaged Length: 1.075 m (43.00 inch)
• Packaged Width: 0.225 m (9.00 inch)
• Packaged Height: 0.219 m (8.75 inch)
• Packaged Weight: 9.121 kg (20.09 lb)
• Packaged Volume: 0.055 m3 (1.96 ft3)

Other Information

• Country of Origin: United States
• NMFC Code: 125850-06
• HTS Code: 8708923500
• UPC Code: 742330004944
