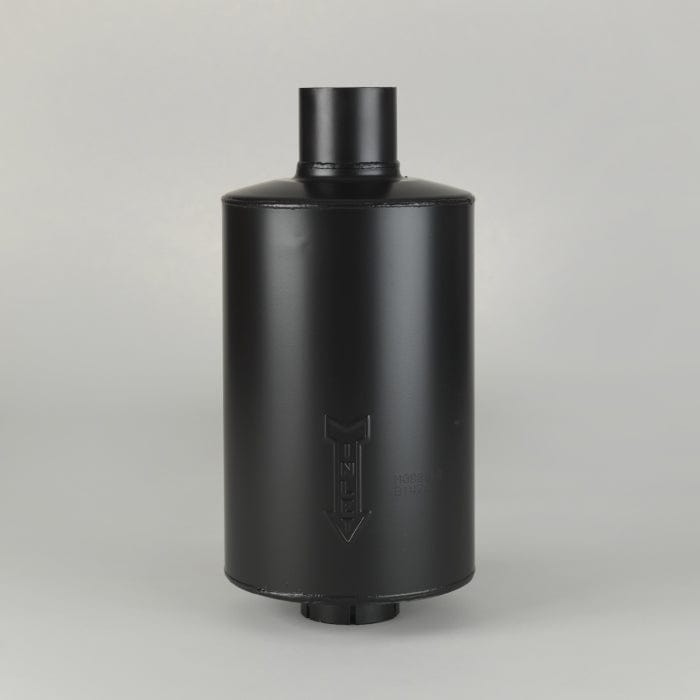

Muffler, Round Style 1 - Donaldson M080018

Attributes

• Inlet Diameter: 76.66 mm (3.02 inch)
• Outlet Diameter: 79.5 mm (3.13 inch)
• Body Diameter Maximum: 203 mm (7.99 inch)
• Body Length: 309.6 mm (12.19 inch)
• Overall Length: 431.8 mm (17.00 inch)
• Rated Flow LR: 13.6 m³/min (480 cfm)
• Rated Flow MR: 19.3 m³/min (682 cfm)
• Rated Flow HR: 23.6 m³/min (833 cfm)
• Back Pressure Low-Range: 25 mm Hg (0.98 inch Hg)
• Back Pressure Mid-Range: 51 mm Hg (2.01 inch Hg)
• Back Pressure High-Range: 76 mm Hg (2.99 inch Hg)
• Attenuation LR: 10 dBA
• Attenuation HR: 15 dBA
• Style: Style 1

Packaged Dimensions

• Packaged Length: 0.473 m (18.90 inch)
• Packaged Width: 0.207 m (8.27 inch)
• Packaged Height: 0.207 m (8.27 inch)
• Packaged Weight: 4.268 kg (9.40 lb)
• Packaged Volume: 0.021 m3 (0.75 ft3)

Other Information

• Country of Origin: United States
• NMFC Code: 125850-09
• HTS Code: 8708923500
• UPC Code: 742330004845
