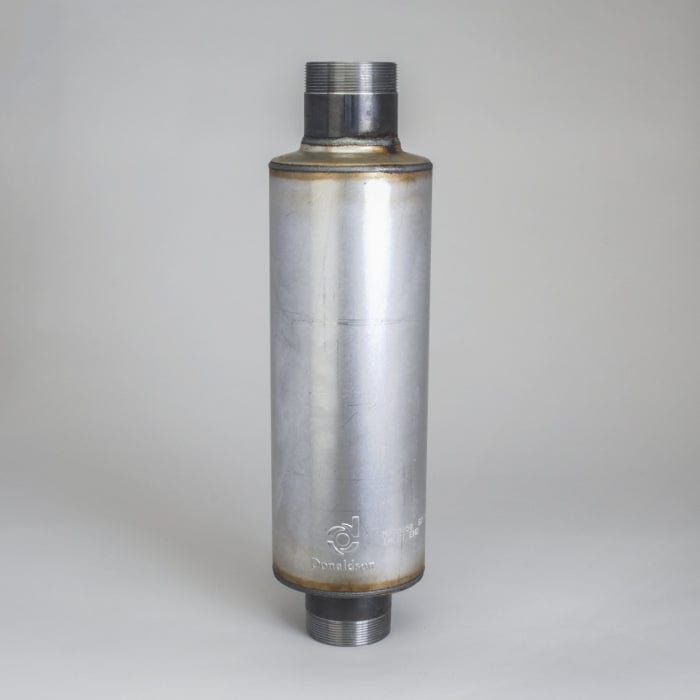

Muffler, Round Style 1 - Donaldson M070050
Muffler, Round Style 1 - Donaldson M070050
Regular price
£257.90
Regular price
Sale price
£257.90
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson M070050
Muffler, Round Style 1| Inlet Diameter | 3.50 inch (89 mm) |
| Outlet Diameter | 3.50 inch (89 mm) |
| Body Diameter Maximum | 6.97 inch (177 mm) |
| Body Length | 18.12 inch (460.25 mm) |
| Overall Length | 25.62 inch (650.75 mm) |
| Rated Flow LR | 812 cfm (23 m³/min) |
| Rated Flow MR | 1148 cfm (32.5 m³/min) |
| Rated Flow HR | 1406 cfm (39.8 m³/min) |
| Back Pressure Low-Range | 0.98 inch Hg (25 mm Hg) |
| Back Pressure Mid-Range | 2.01 inch Hg (51 mm Hg) |
| Back Pressure High-Range | 2.99 inch Hg (76 mm Hg) |
| Attenuation LR | 10 dBA |
| Attenuation HR | 15 dBA |
| Style | Style 1 |
Share
Collapsible content
Specifications
Attributes
- Inlet Diameter: 89 mm (3.50 inch)
- Outlet Diameter: 89 mm (3.50 inch)
- Body Diameter Maximum: 177 mm (6.97 inch)
- Body Length: 460.25 mm (18.12 inch)
- Overall Length: 650.75 mm (25.62 inch)
- Rated Flow LR: 23 m³/min (812 cfm)
- Rated Flow MR: 32.5 m³/min (1148 cfm)
- Rated Flow HR: 39.8 m³/min (1406 cfm)
- Back Pressure Low-Range: 25 mm Hg (0.98 inch Hg)
- Back Pressure Mid-Range: 51 mm Hg (2.01 inch Hg)
- Back Pressure High-Range: 76 mm Hg (2.99 inch Hg)
- Attenuation LR: 10 dBA
- Attenuation HR: 15 dBA
- Style: Style 1
Packaged Dimensions
- Packaged Length: 0.680 m (27.20 inch)
- Packaged Width: 0.193 m (7.70 inch)
- Packaged Height: 0.193 m (7.70 inch)
- Packaged Weight: 7.378 kg (16.25 lb)
- Packaged Volume: 0.026 m3 (0.93 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 125850-09
- HTS Code: 8708923500
- UPC Code: 742330004753
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| A P PARTS | 3685 | |
| A P PARTS | 3685Q | |
| CHICAGO PNEUMATIC | IPS2453 | |
| CLARK | 851SA1930 | |
| DAVEY COMPRESSOR | A36280 | |
| DROTT | 37281 | |
| DROTT | 037281 | |
| FMC | 18A557 | |
| FMC | 18A0557 | |
| FREIGHTLINER | DNM070050 | |
| GRADALL | 86671417 | |
| GRADALL | 86571015 | |
| GROVE | 5369330 | |
| HEAVY DUTY MFG | 31086 | |
| INTERNATIONAL | 680033 | |
| INTERNATIONAL | DCM070050 | |
| JAEGER | 35673585 | |
| LEROI | 78158 | |
| LINK BELT | 18A0557 | |
| MANITOWOC | 536933 | |
| MANITOWOC | 5369330 | |
| NELSON | 86174M | |
| RAYGO | E650024 | |
| RIKER | X12359 | |
| STEMCO | 1909146 | |
| TRUCKEX | 3685 | |
| WARNER & SWASEY | 86671417 | |
| WARNER & SWASEY | 86571015 |
