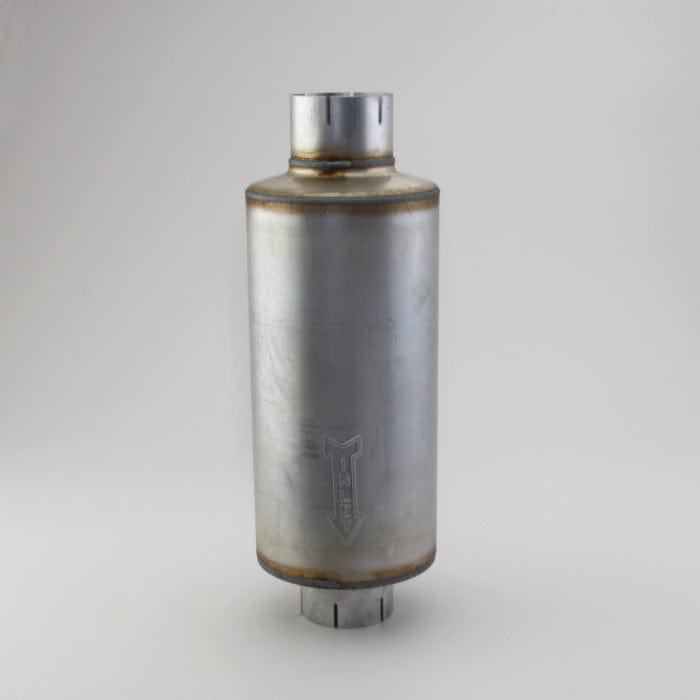

Muffler, Round Style 1 - Donaldson M070028

Attributes

• Inlet Diameter: 87.63 mm (3.45 inch)
• Outlet Diameter: 87.63 mm (3.45 inch)
• Body Diameter Maximum: 178 mm (7.01 inch)
• Body Length: 349.25 mm (13.75 inch)
• Overall Length: 501.65 mm (19.75 inch)
• Rated Flow LR: 20.4 m³/min (720 cfm)
• Rated Flow MR: 28.8 m³/min (1017 cfm)
• Rated Flow HR: 35 m³/min (1236 cfm)
• Back Pressure Low-Range: 25 mm Hg (0.98 inch Hg)
• Back Pressure Mid-Range: 51 mm Hg (2.01 inch Hg)
• Back Pressure High-Range: 76 mm Hg (2.99 inch Hg)
• Attenuation LR: 10 dBA
• Attenuation HR: 15 dBA
• Style: Style 1

Packaged Dimensions

• Packaged Length: 0.573 m (22.90 inch)
• Packaged Width: 0.193 m (7.70 inch)
• Packaged Height: 0.188 m (7.50 inch)
• Packaged Weight: 4.420 kg (9.74 lb)
• Packaged Volume: 0.021 m3 (0.77 ft3)

Other Information

• Country of Origin: United States
• NMFC Code: 125850-09
• HTS Code: 8708923500
• UPC Code: 742330004722
