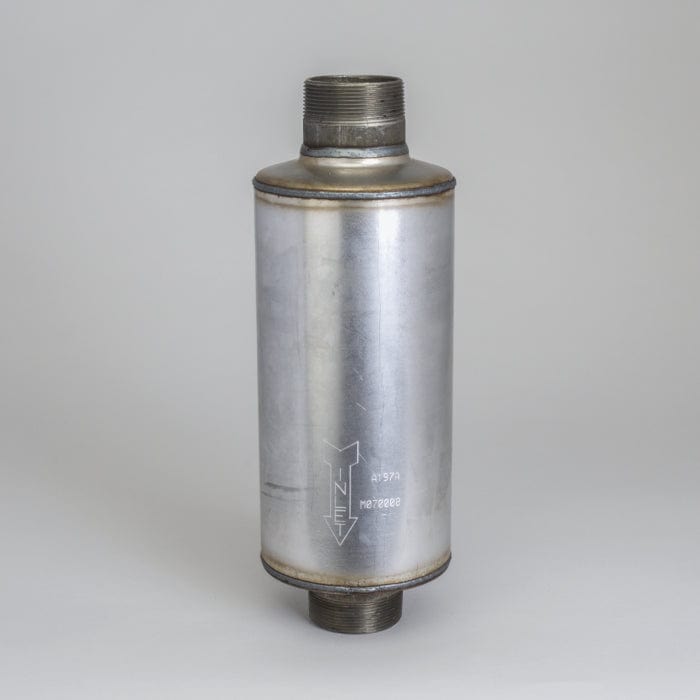

Muffler, Round Style 1 - Donaldson M070008

Attributes

• Inlet Diameter: 76 mm (2.99 inch)
• Outlet Diameter: 76 mm (2.99 inch)
• Body Diameter Maximum: 177.1 mm (6.97 inch)
• Body Length: 349.25 mm (13.75 inch)
• Overall Length: 501.65 mm (19.75 inch)
• Rated Flow LR: 21.1 m³/min (745 cfm)
• Rated Flow MR: 29.9 m³/min (1056 cfm)
• Rated Flow HR: 36.6 m³/min (1293 cfm)
• Back Pressure Low-Range: 25 mm Hg (0.98 inch Hg)
• Back Pressure Mid-Range: 51 mm Hg (2.01 inch Hg)
• Back Pressure High-Range: 76 mm Hg (2.99 inch Hg)
• Attenuation LR: 10 dBA
• Attenuation HR: 15 dBA
• Style: Style 1

Packaged Dimensions

• Packaged Length: 0.580 m (23.20 inch)
• Packaged Width: 0.198 m (7.90 inch)
• Packaged Height: 0.195 m (7.80 inch)
• Packaged Weight: 5.425 kg (11.95 lb)
• Packaged Volume: 0.023 m3 (0.83 ft3)

Other Information

• Country of Origin: United States
• NMFC Code: 125850-09
• HTS Code: 8708923500
• UPC Code: 742330004715
