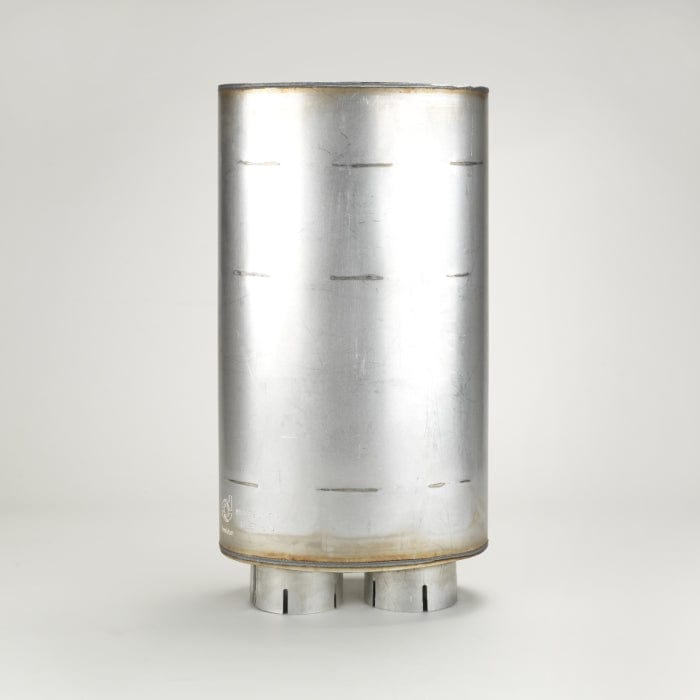

Muffler, Oval Style 5 - Donaldson M120176

Attributes

• Inlet Diameter: 127.64 mm (5.03 inch)
• Outlet Diameter: 127.64 mm (5.03 inch)
• Body Diameter Minimum: 254 mm (10.00 inch)
• Body Diameter Maximum: 381 mm (15.00 inch)
• Body Length: 654.1 mm (25.75 inch)
• Overall Length: 746.25 mm (29.38 inch)
• Rated Flow LR: 33.4 m³/min (1180 cfm)
• Rated Flow MR: 47.3 m³/min (1670 cfm)
• Rated Flow HR: 57.9 m³/min (2045 cfm)
• Back Pressure Low-Range: 25 mm Hg (0.98 inch Hg)
• Back Pressure Mid-Range: 51 mm Hg (2.01 inch Hg)
• Back Pressure High-Range: 76 mm Hg (2.99 inch Hg)
• Attenuation LR: 15 dBA
• Attenuation HR: 20 dBA
• Inlet Clock Position: 3
• Outlet Clock Position: 9
• Style: Style 5

Packaged Dimensions

• Packaged Length: 0.788 m (31.50 inch)
• Packaged Width: 0.381 m (15.25 inch)
• Packaged Height: 0.275 m (11.00 inch)
• Packaged Weight: 15.890 kg (35.00 lb)
• Packaged Volume: 0.086 m3 (3.06 ft3)

Other Information

• Country of Origin: United States
• NMFC Code: 125850-07
• HTS Code: 8708923500
• UPC Code: 742330005897
