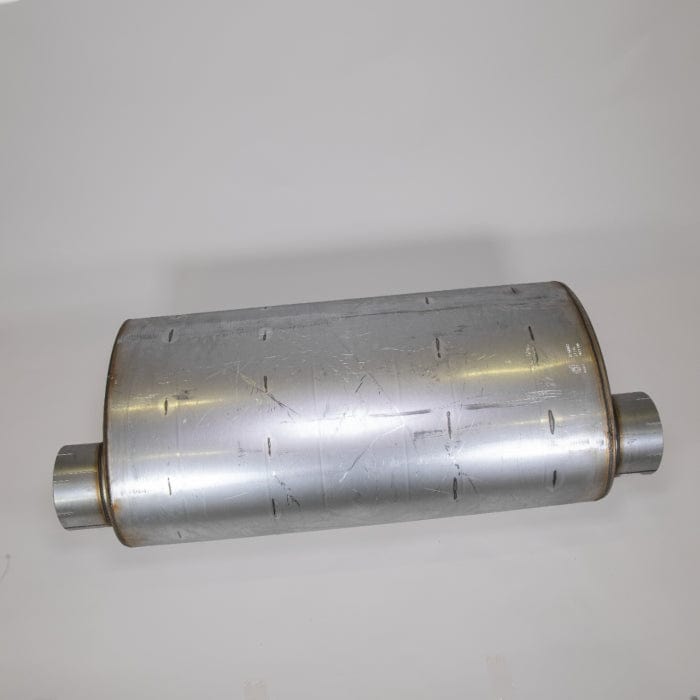

Muffler, Oval Style 2 - Donaldson M190002
Muffler, Oval Style 2 - Donaldson M190002
Regular price
£2,040.64
Regular price
Sale price
£2,040.64
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson M190002
Muffler, Oval Style 2| Inlet Diameter | 7.99 inch (203 mm) |
| Outlet Diameter | 7.99 inch (203 mm) |
| Body Diameter Minimum | 15.98 inch (406 mm) |
| Body Diameter Maximum | 24.02 inch (610 mm) |
| Body Length | 45.00 inch (1143 mm) |
| Overall Length | 57.01 inch (1448 mm) |
| Rated Flow LR | 3666 cfm (103.8 m³/min) |
| Rated Flow MR | 5184 cfm (146.8 m³/min) |
| Rated Flow HR | 6350 cfm (179.8 m³/min) |
| Back Pressure Low-Range | 0.98 inch Hg (25 mm Hg) |
| Back Pressure Mid-Range | 2.01 inch Hg (51 mm Hg) |
| Back Pressure High-Range | 2.99 inch Hg (76 mm Hg) |
| Attenuation LR | 11 dBA |
| Attenuation HR | 15 dBA |
| Inlet Clock Position | 3:00 |
| Style | Style 2 |
Share
Collapsible content
Specifications
Attributes
- Inlet Diameter: 203 mm (7.99 inch)
- Outlet Diameter: 203 mm (7.99 inch)
- Body Diameter Minimum: 406 mm (15.98 inch)
- Body Diameter Maximum: 610 mm (24.02 inch)
- Body Length: 1143 mm (45.00 inch)
- Overall Length: 1448 mm (57.01 inch)
- Rated Flow LR: 103.8 m³/min (3666 cfm)
- Rated Flow MR: 146.8 m³/min (5184 cfm)
- Rated Flow HR: 179.8 m³/min (6350 cfm)
- Back Pressure Low-Range: 25 mm Hg (0.98 inch Hg)
- Back Pressure Mid-Range: 51 mm Hg (2.01 inch Hg)
- Back Pressure High-Range: 76 mm Hg (2.99 inch Hg)
- Attenuation LR: 11 dBA
- Attenuation HR: 15 dBA
- Inlet Clock Position: 3
- Style: Style 2
Packaged Dimensions
- Packaged Length: 1.475 m (59.00 inch)
- Packaged Width: 0.713 m (28.50 inch)
- Packaged Height: 0.475 m (19.00 inch)
- Packaged Weight: 90.800 kg (200.00 lb)
- Packaged Volume: 0.518 m3 (18.49 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 125850-06
- HTS Code: 8708923500
- UPC Code: 742330006085
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| A P PARTS | 3650 | |
| A P PARTS | 3650Q | |
| AMERICAN CRANE CORPORATION | 842434 | |
| ASTEC UNDERGROUND | 3016051005 | |
| CATERPILLAR | 9N8185 | |
| CMI | 42762 | |
| CMI | 004013453000 | |
| COMPAIR | 26927240 | |
| DRESSER | PB1913 | |
| DRILTECH | 020566002 | |
| FORD | 9575M190002 | |
| HEAVY DUTY MFG | 31211 | |
| INTERNATIONAL | DCM190002 | |
| KOMATSU | PB1913 | |
| KOMATSU | 26927240 | |
| LETOURNEAU | 4102049 | |
| LETOURNEAU | 4185027 | |
| MANITOWOC | 536968 | |
| MANITOWOC | 5369680 | |
| MARATHON EQPT LTD | 4102049 | |
| MORBARK | 29323090 | |
| P & H | 27Q564 | |
| SEAGRAVE | P3422043 | |
| TEREX | 26927240 | |
| UNIT RIG EQUIPMENT | 1036008 | |
| WALGAHN-MOTORENTECHN | 810354 | |
| WALGAHN-MOTORENTECHN | 00810354 |
