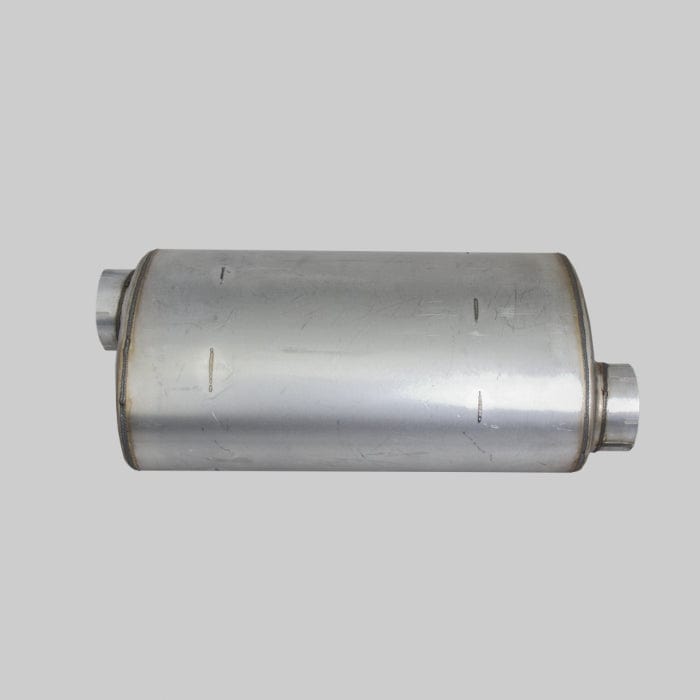

Muffler, Oval Style 2 - Donaldson M140048
Muffler, Oval Style 2 - Donaldson M140048
Regular price
£840.58
Regular price
Sale price
£840.58
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson M140048
Muffler, Oval Style 2| Inlet Diameter | 6.04 inch (153.39 mm) |
| Outlet Diameter | 6.04 inch (153.39 mm) |
| Body Diameter Minimum | 12.12 inch (307.85 mm) |
| Body Diameter Maximum | 18.12 inch (460.25 mm) |
| Body Length | 30.00 inch (762 mm) |
| Overall Length | 38.00 inch (965.2 mm) |
| Rated Flow LR | 2172 cfm (61.5 m³/min) |
| Rated Flow MR | 3072 cfm (87 m³/min) |
| Rated Flow HR | 3761 cfm (106.5 m³/min) |
| Back Pressure Low-Range | 0.98 inch Hg (25 mm Hg) |
| Back Pressure Mid-Range | 2.01 inch Hg (51 mm Hg) |
| Back Pressure High-Range | 2.99 inch Hg (76 mm Hg) |
| Attenuation LR | 11 dBA |
| Attenuation HR | 16 dBA |
| Inlet Clock Position | 3:00 |
| Outlet Clock Position | 9:00 |
| Style | Style 2 |
Share
Collapsible content
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| CAMECO | 0551327795 | |
| CAMECO | 551327795 | |
| CRANE CARRIER | 2100171 | |
| DETROIT DIESEL | DPM140048 | |
| EUCLID | 12584634 | |
| HEAVY DUTY MFG | 31234 | |
| INTERNATIONAL | DCM140048 | |
| MI-JACK | 43171003 | |
| P & H | 27Q690 | |
| P & H | 327Q690 | |
| SANDVIK | 020566001 | |
| SANDVIK | 20566001 |
