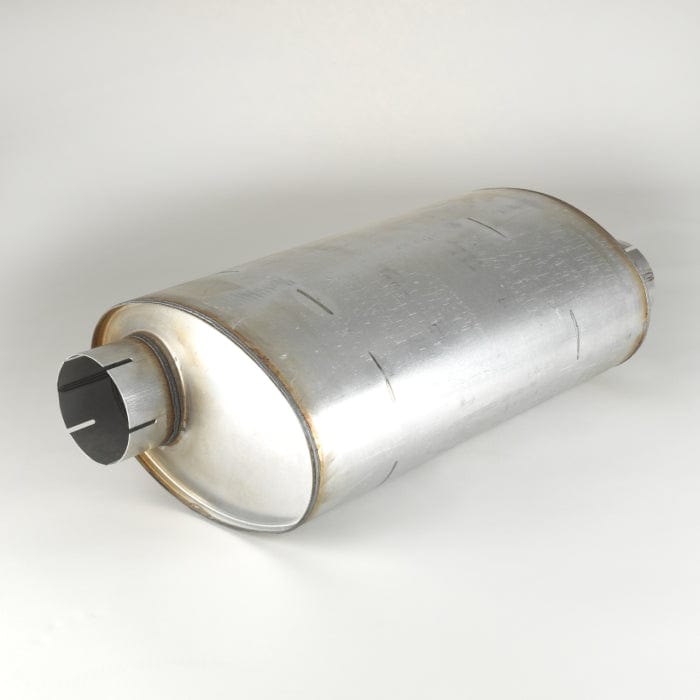

Muffler, Oval Style 2 - Donaldson M120225

Attributes

• Inlet Diameter: 127.64 mm (5.03 inch)
• Outlet Diameter: 127.64 mm (5.03 inch)
• Body Diameter Minimum: 254 mm (10.00 inch)
• Body Diameter Maximum: 381 mm (15.00 inch)
• Body Length: 647.7 mm (25.50 inch)
• Overall Length: 825.5 mm (32.50 inch)
• Rated Flow LR: 47.2 m³/min (1667 cfm)
• Rated Flow MR: 66.7 m³/min (2355 cfm)
• Rated Flow HR: 81.7 m³/min (2885 cfm)
• Back Pressure Low-Range: 25 mm Hg (0.98 inch Hg)
• Back Pressure Mid-Range: 51 mm Hg (2.01 inch Hg)
• Back Pressure High-Range: 76 mm Hg (2.99 inch Hg)
• Attenuation LR: 15 dBA
• Attenuation HR: 20 dBA
• Inlet Clock Position: 3
• Outlet Clock Position: 9
• Style: Style 2

Packaged Dimensions

• Packaged Length: 0.875 m (35.00 inch)
• Packaged Width: 0.400 m (16.00 inch)
• Packaged Height: 0.288 m (11.50 inch)
• Packaged Weight: 14.937 kg (32.90 lb)
• Packaged Volume: 0.104 m3 (3.73 ft3)

Other Information

• Country of Origin: United States
• NMFC Code: 125850-06
• HTS Code: 8708923500
• UPC Code: 742330005927
