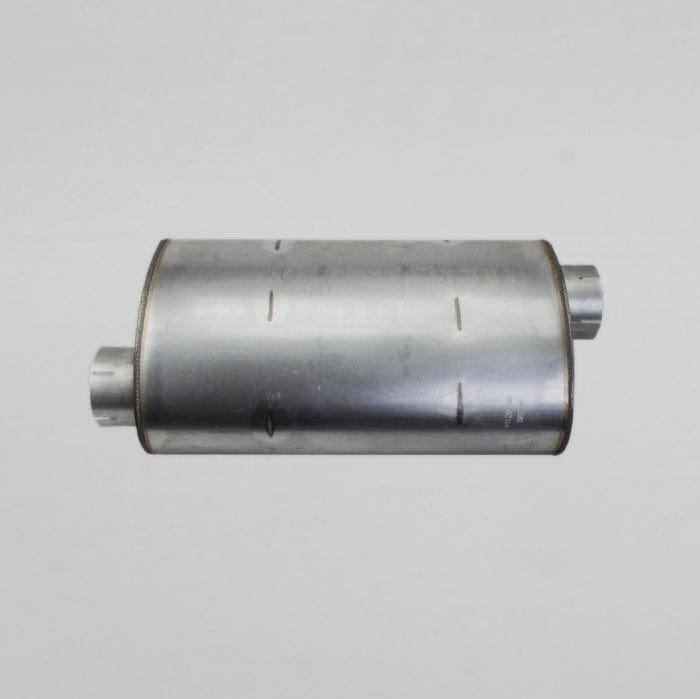

Muffler, Oval Style 2 - Donaldson M120108

Attributes

• Inlet Diameter: 127.64 mm (5.03 inch)
• Outlet Diameter: 127.64 mm (5.03 inch)
• Body Diameter Minimum: 254 mm (10.00 inch)
• Body Diameter Maximum: 381 mm (15.00 inch)
• Body Length: 660.4 mm (26.00 inch)
• Overall Length: 825.5 mm (32.50 inch)
• Rated Flow LR: 38.1 m³/min (1345 cfm)
• Rated Flow MR: 53.8 m³/min (1900 cfm)
• Rated Flow HR: 65.9 m³/min (2327 cfm)
• Back Pressure Low-Range: 25 mm Hg (0.98 inch Hg)
• Back Pressure Mid-Range: 51 mm Hg (2.01 inch Hg)
• Back Pressure High-Range: 76 mm Hg (2.99 inch Hg)
• Attenuation LR: 15 dBA
• Attenuation HR: 20 dBA
• Inlet Clock Position: 3
• Outlet Clock Position: 9
• Style: Style 2

Packaged Dimensions

• Packaged Length: 0.881 m (35.25 inch)
• Packaged Width: 0.400 m (16.00 inch)
• Packaged Height: 0.281 m (11.25 inch)
• Packaged Weight: 15.929 kg (35.09 lb)
• Packaged Volume: 0.103 m3 (3.67 ft3)

Other Information

• Country of Origin: United States
• NMFC Code: 125850-06
• HTS Code: 8708923500
• UPC Code: 742330005859
