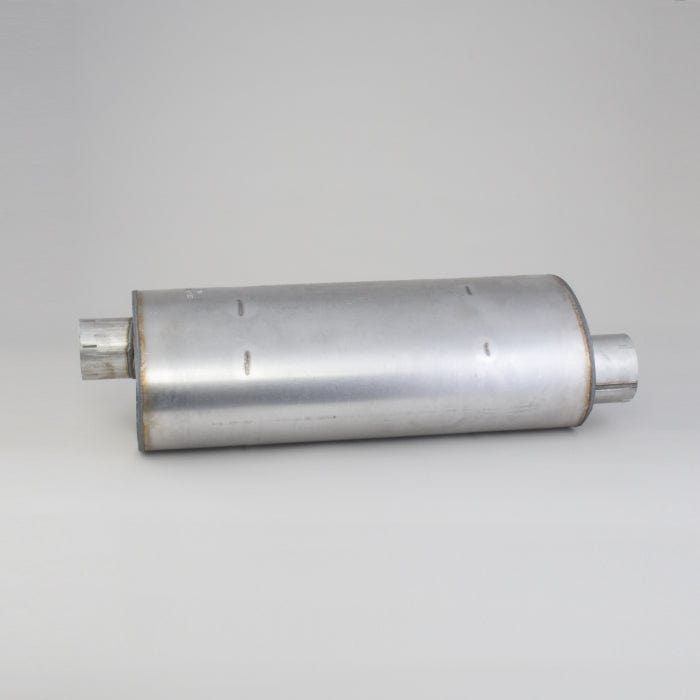

Muffler, Oval Style 2 - Donaldson M090520
Muffler, Oval Style 2 - Donaldson M090520
Regular price
£264.50
Regular price
Sale price
£264.50
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson M090520
Muffler, Oval Style 2| Inlet Diameter | 3.51 inch (89.28 mm) |
| Outlet Diameter | 4.02 inch (102.11 mm) |
| Body Diameter Minimum | 8.25 inch (209.6 mm) |
| Body Diameter Maximum | 11.50 inch (292 mm) |
| Body Length | 26.00 inch (660.4 mm) |
| Overall Length | 32.25 inch (819.2 mm) |
| Rated Flow LR | 992 cfm (28.1 m³/min) |
| Rated Flow MR | 1402 cfm (39.7 m³/min) |
| Rated Flow HR | 1716 cfm (48.6 m³/min) |
| Back Pressure Low-Range | 0.98 inch Hg (25 mm Hg) |
| Back Pressure Mid-Range | 2.01 inch Hg (51 mm Hg) |
| Back Pressure High-Range | 2.99 inch Hg (76 mm Hg) |
| Attenuation LR | 13 dBA |
| Attenuation HR | 18 dBA |
| Inlet Clock Position | 3:00 |
| Outlet Clock Position | 9:00 |
| Style | Style 2 |
Share
Collapsible content
Specifications
Attributes
- Inlet Diameter: 89.28 mm (3.51 inch)
- Outlet Diameter: 102.11 mm (4.02 inch)
- Body Diameter Minimum: 209.6 mm (8.25 inch)
- Body Diameter Maximum: 292 mm (11.50 inch)
- Body Length: 660.4 mm (26.00 inch)
- Overall Length: 819.2 mm (32.25 inch)
- Rated Flow LR: 28.1 m³/min (992 cfm)
- Rated Flow MR: 39.7 m³/min (1402 cfm)
- Rated Flow HR: 48.6 m³/min (1716 cfm)
- Back Pressure Low-Range: 25 mm Hg (0.98 inch Hg)
- Back Pressure Mid-Range: 51 mm Hg (2.01 inch Hg)
- Back Pressure High-Range: 76 mm Hg (2.99 inch Hg)
- Attenuation LR: 13 dBA
- Attenuation HR: 18 dBA
- Inlet Clock Position: 3
- Outlet Clock Position: 9
- Style: Style 2
Packaged Dimensions
- Packaged Length: 0.925 m (37.00 inch)
- Packaged Width: 0.297 m (11.88 inch)
- Packaged Height: 0.219 m (8.75 inch)
- Packaged Weight: 10.578 kg (23.30 lb)
- Packaged Volume: 0.062 m3 (2.22 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 125850-07
- HTS Code: 8708923500
- UPC Code: 742330005200
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| A P PARTS | 3716 | |
| A P PARTS | 3611Q | |
| A P PARTS | 3611 | |
| ACRAFIT | M20512 | |
| AP EXHAUST PRODUCTS INC | 3611 | |
| DYNAFLEX | 89354051 | |
| DYNAFLEX | 89354055 | |
| FORD | 9575M090520 | |
| GLOBAL ASPHALT PRODUCTS | 505491 | |
| INTERNATIONAL | DCM090520 | |
| INTERNATIONAL | 482167C1 | |
| INTERNATIONAL | 1647998C1 | |
| MAREMONT | ZF947 | |
| MERITOR | 102974 | |
| NELSON | 86512M | |
| NELSON | 86669M | |
| STEMCO | 1909532 | |
| TRANSPORTATION ACCESSORIES | TAC466 | |
| TRUCKEX | 3716 | |
| TRUCKEX | 3611 | |
| VOEGELE | 505491 | |
| WALKER MANUFACTURING | 21832 |
