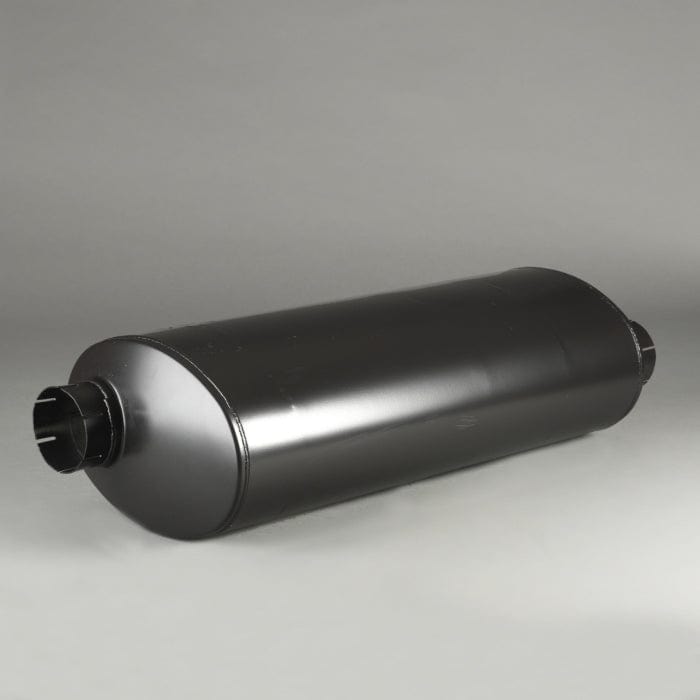

Muffler, Oval Style 2 - Donaldson M090158

Attributes

• Inlet Diameter: 89.28 mm (3.51 inch)
• Outlet Diameter: 89.28 mm (3.51 inch)
• Body Diameter Minimum: 209.6 mm (8.25 inch)
• Body Diameter Maximum: 292 mm (11.50 inch)
• Body Length: 660.4 mm (26.00 inch)
• Overall Length: 819.15 mm (32.25 inch)
• Rated Flow LR: 21.6 m³/min (763 cfm)
• Rated Flow MR: 30.6 m³/min (1081 cfm)
• Rated Flow HR: 37.5 m³/min (1324 cfm)
• Back Pressure Low-Range: 25 mm Hg (0.98 inch Hg)
• Back Pressure Mid-Range: 51 mm Hg (2.01 inch Hg)
• Back Pressure High-Range: 76 mm Hg (2.99 inch Hg)
• Attenuation LR: 15 dBA
• Attenuation HR: 20 dBA
• Inlet Clock Position: 3
• Outlet Clock Position: 9
• Style: Style 2

Packaged Dimensions

• Packaged Length: 0.213 m (8.50 inch)
• Packaged Width: 0.294 m (11.75 inch)
• Packaged Height: 0.931 m (37.25 inch)
• Packaged Weight: 13.075 kg (28.80 lb)
• Packaged Volume: 0.060 m3 (2.15 ft3)

Other Information

• Country of Origin: United States
• NMFC Code: 125850-08
• HTS Code: 8708923500
• UPC Code: 742330005095
