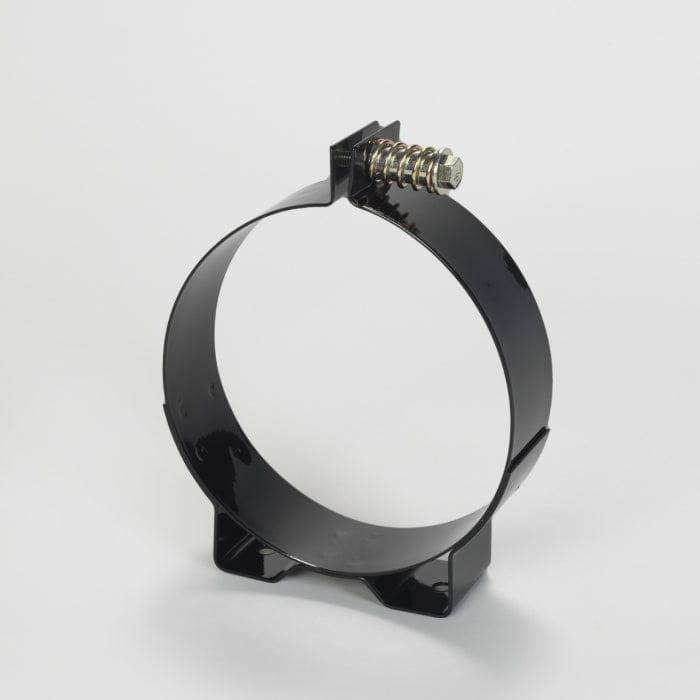

Mounting Band - Donaldson H008444
Mounting Band - Donaldson H008444
Regular price
£21.90
Regular price
Sale price
£21.90
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson H008444
Mounting Band| Bolt Hole Center Spacing | 3.54 inch (89.9 mm) |
| Inner Diameter | 6.79 inch (172.5 mm) |
| Width | 1.98 inch (50.3 mm) |
| Bolt Hole Circle Diameter | 0.35 inch (9 mm) |
| Center Height | 3.94 inch (100 mm) |
Share
Collapsible content
Specifications
Attributes
- Bolt Hole Center Spacing: 89.9 mm (3.54 inch)
- Inner Diameter: 172.5 mm (6.79 inch)
- Width: 50.3 mm (1.98 inch)
- Bolt Hole Circle Diameter: 9 mm (0.35 inch)
- Center Height: 100 mm (3.94 inch)
Packaged Dimensions
- Packaged Length: 0.421 m (16.85 inch)
- Packaged Width: 0.400 m (16.00 inch)
- Packaged Height: 0.059 m (2.35 inch)
- Packaged Weight: 0.676 kg (1.49 lb)
- Packaged Volume: 0.010 m3 (0.37 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 094580
- HTS Code: 7326909890
- UPC Code: 742330003558
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AUSTOFT | 42035587 | |
| BOBCAT | 6673891 | |
| CASE/CASE IH | N103334 | |
| DIAMANT BOART INC | 523292001 | |
| DITCH WITCH | 194603 | |
| GEHL | 42035587 | |
| GROVE | 7056000617 | |
| HYUNDAI | 11FK20020 | |
| INGERSOLL RAND | 59101576 | |
| JACOBSEN | 4128084 | |
| JOHN DEERE | 811887300 | |
| JOHN DEERE | 811887300J | |
| KYSOR | 460C107 | |
| MORBARK | 29321153 | |
| MORBARK | 29321192 | |
| P & H | 1016Z1382 | |
| PERKINS | 33500217 | |
| PERKINS | 13000009 | |
| SIGMA AIR CONDITIONING | 460C107 | |
| SKYJACK | 147311AA | |
| TAYLOR | VTH008444 | |
| TELEDYNE | A033922 | |
| TIMBERJACK | 811887300 | |
| TORO | 937486 | |
| VERMEER | 143055001 | |
| YANMAR | 12968712570 |
