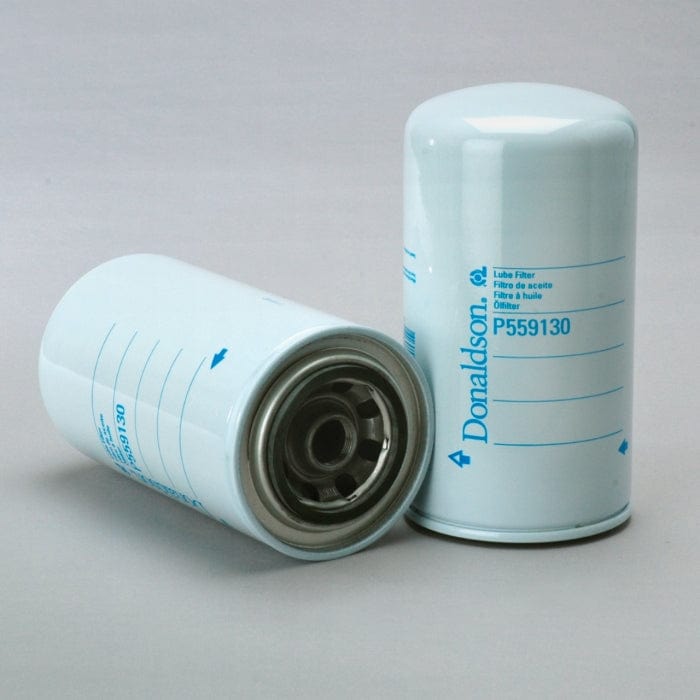

Lube Filter, Spin-On Full Flow - Donaldson P559130
Lube Filter, Spin-On Full Flow - Donaldson P559130
Regular price
£19.24
Regular price
Sale price
£19.24
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P559130
Lube Filter, Spin-On Full Flow| Outer Diameter | 4.21 inch (107 mm) |
| Thread Size | 7/8-16 UN |
| Length | 7.95 inch (202 mm) |
| Gasket OD | 2.83 inch (72 mm) |
| Gasket ID | 2.44 inch (62 mm) |
| Efficiency 99% | 40 micron |
| Efficiency Test Std | ISO 16889 |
| Media Type | Cellulose |
| Type | Full-Flow |
| Style | Spin-On |
| Primary Application | CASE/CASE IH A62423 |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 107 mm (4.21 inch)
- Thread Size: 7/8-16 UN
- Length: 202 mm (7.95 inch)
- Gasket OD: 72 mm (2.83 inch)
- Gasket ID: 62 mm (2.44 inch)
- Efficiency 99%: 40 micron
- Efficiency Test Std: ISO 16889
- Media Type: Cellulose
- Type: Full-Flow
- Style: Spin-On
- Primary Application: CASE/CASE IH A62423
Packaged Dimensions
- Packaged Length: 0.35 FT
- Packaged Width: 0.35 FT
- Packaged Height: 0.65 FT
- Packaged Weight: 0.953 kg (2.10 lb)
- Packaged Volume: 0.002 m3 (0.08 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-06
- HTS Code: 8421230090
- UPC Code: 742330201565
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AMERICAN PARTS | 92458 | |
| AMERICAN PARTS | 2075 | |
| AMERICAN PARTS | 2015 | |
| CASE/CASE IH | A62423 | |
| CASE/CASE IH | A59110 | |
| CHAMP | PH444 | |
| CYCLONE | PM461 | |
| DELUXE | 368 | |
| EUCLID | 48044069 | |
| KOMATSU | L790PP | |
| KRALINATOR | L196 | |
| M.D.F. SARL | MDL0444 | |
| MCCORMICK | A59110 | |
| ORENSTEIN & KOPPEL | 1448774 | |
| PERRY | PL368 | |
| VMC | LF551304 | |
| VOLVO | 8010773 | |
| VOLVO | 4804406 | |
| VOLVO | 48044069 | |
| WHITE | 400000406 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| CASE/CASE IH 1060 | - | COMBINE | - | - 1060 | - |
| CASE/CASE IH 1090 | - | TRACTOR | - | - 1090 | - |
| CASE/CASE IH 1160 | - | COMBINE | - | - 1160 | - |
| CASE/CASE IH 1450 | - | DOZER TRACKED | - | CASE/CASE IH 504BDT | - |
| CASE/CASE IH A504BDT | - | ENGINE | - | - A504BDT | - |
| CASE/CASE IH A504D | - | ENGINE | - | - A504D | - |
| CASE/CASE IH W26B | - | LOADER WHEELED | - | CASE/CASE IH 504 | - |
| CASE/CASE IH W26LF | - | LOADER WHEELED | - | CASE/CASE IH 504 | - |
| VOLVO CONSTRUCTION EQUIPMENT EL70 | - | LOADER | EL SERIES | VOLVO TD45 | - |
