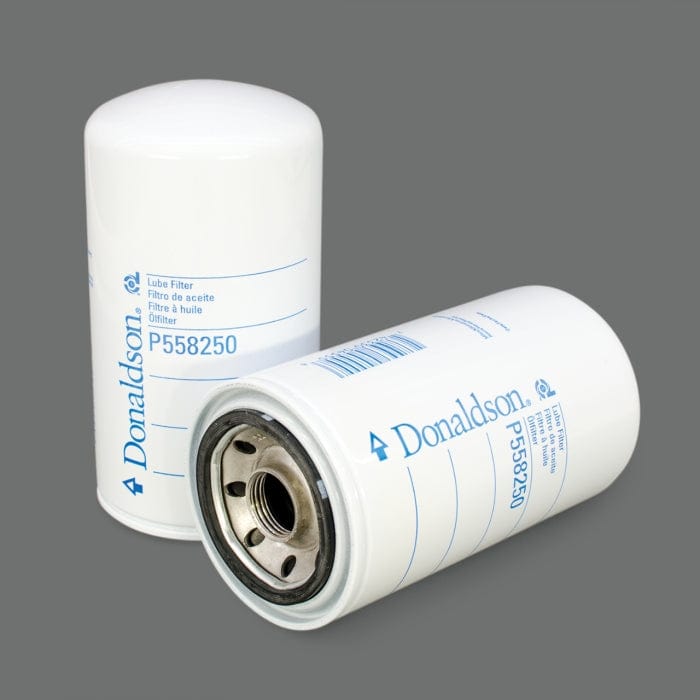

Lube Filter, Spin-On Full Flow - Donaldson P558250

Attributes

• Outer Diameter: 93 mm (3.66 inch)
• Thread Size: 1-12 UN
• Length: 172 mm (6.77 inch)
• Gasket OD: 71 mm (2.80 inch)
• Gasket ID: 61 mm (2.40 inch)
• Efficiency 99%: 40 micron
• Efficiency Test Std: ISO 4548-12
• Anti-Drainback Valve: Yes
• Bypass Valve: Yes
• Bypass Valve Setting LR: 0.8 bar (12 psi)
• Bypass Valve Setting HR: 1.2 bar (17 psi)
• Media Type: Cellulose
• Collapse Burst: 13.8 bar (200 psi)
• Type: Full-Flow
• Style: Spin-On
• Primary Application: CASE/CASE IH 528250R91

Packaged Dimensions

• Packaged Length: 0.093 m (3.70 inch)
• Packaged Width: 0.088 m (3.50 inch)
• Packaged Height: 0.170 m (6.80 inch)
• Packaged Weight: 0.554 kg (1.22 lb)
• Packaged Volume: 0.001 m3 (0.05 ft3)

Other Information

• Country of Origin: Mexico
• NMFC Code: 069100-09
• HTS Code: 8421230090
• UPC Code: 742330045558
