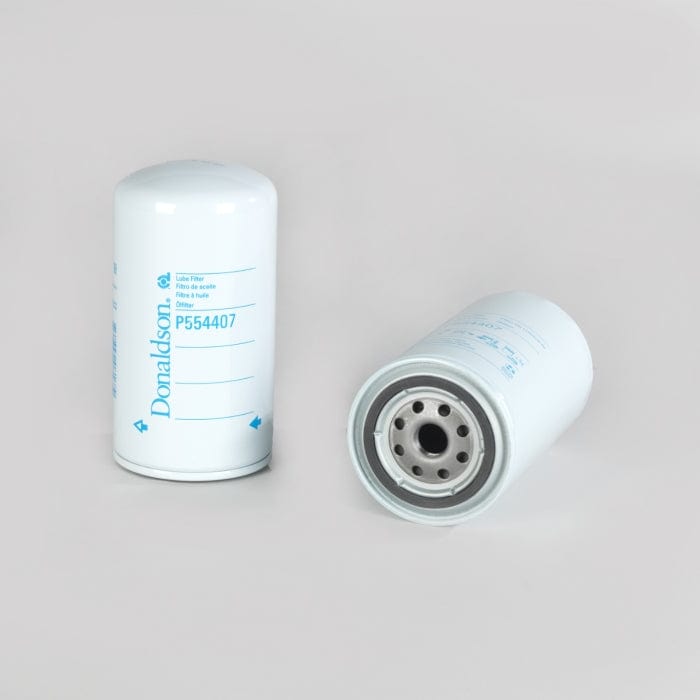

Lube Filter, Spin-On Full Flow - Donaldson P554407

Attributes

• Outer Diameter: 93 mm (3.66 inch)
• Thread Size: 3/4-16 UN
• Length: 174 mm (6.85 inch)
• Gasket OD: 72 mm (2.83 inch)
• Gasket ID: 63 mm (2.48 inch)
• Efficiency 99%: 48 micron
• Anti-Drainback Valve: Yes
• Bypass Valve: Yes
• Bypass Valve Setting LR: 0.8 bar (12 psi)
• Media Type: Cellulose
• Collapse Burst: 6.9 bar (100 psi)
• Type: Full-Flow
• Style: Spin-On
• Primary Application: PERKINS 2654407

Packaged Dimensions

• Packaged Length: 0.100 m (4.00 inch)
• Packaged Width: 0.098 m (3.90 inch)
• Packaged Height: 0.182 m (7.30 inch)
• Packaged Weight: 0.574 kg (1.27 lb)
• Packaged Volume: 0.002 m3 (0.07 ft3)

Other Information

• Country of Origin: Indonesia
• NMFC Code: 069100-06
• HTS Code: 8421230090
• UPC Code: 742330081679
