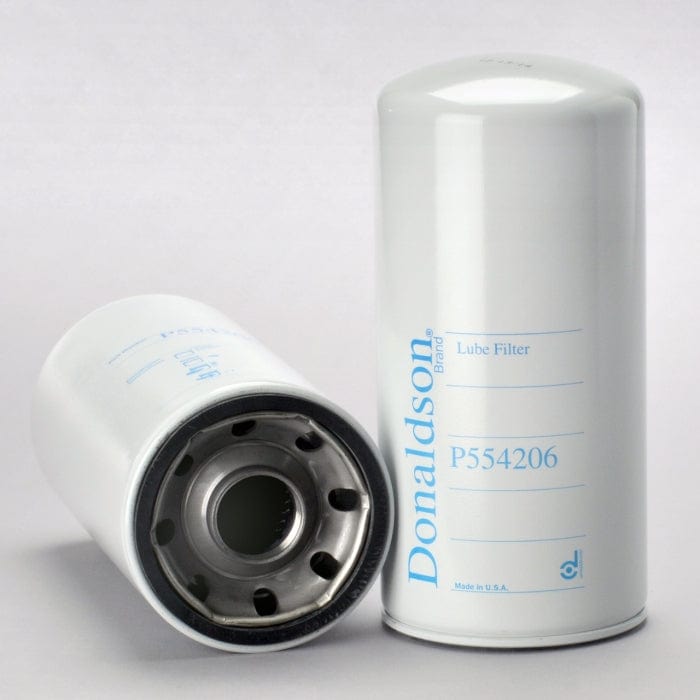

Lube Filter, Spin-On Full Flow - Donaldson P554206
Lube Filter, Spin-On Full Flow - Donaldson P554206
Regular price
£29.10
Regular price
Sale price
£29.10
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P554206
Lube Filter, Spin-On Full Flow| Outer Diameter | 4.65 inch (118 mm) |
| Thread Size | 1 1/2-16 UN |
| Length | 9.92 inch (252 mm) |
| Gasket OD | 4.33 inch (110 mm) |
| Gasket ID | 3.86 inch (98 mm) |
| Efficiency 99% | 40 micron |
| Efficiency Test Std | SAE J1858 |
| Media Type | Cellulose |
| Collapse Burst | 100 psi (6.9 bar) |
| Type | Full-Flow |
| Style | Spin-On |
| Primary Application | CASE/CASE IH 684206C1 |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 118 mm (4.65 inch)
- Thread Size: 1 1/2-16 UN
- Length: 252 mm (9.92 inch)
- Gasket OD: 110 mm (4.33 inch)
- Gasket ID: 98 mm (3.86 inch)
- Efficiency 99%: 40 micron
- Efficiency Test Std: SAE J1858
- Media Type: Cellulose
- Collapse Burst: 6.9 bar (100 psi)
- Type: Full-Flow
- Style: Spin-On
- Primary Application: CASE/CASE IH 684206C1
Packaged Dimensions
- Packaged Length: 0.115 m (4.60 inch)
- Packaged Width: 0.113 m (4.50 inch)
- Packaged Height: 0.253 m (10.10 inch)
- Packaged Weight: 1.137 kg (2.51 lb)
- Packaged Volume: 0.003 m3 (0.12 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-04
- HTS Code: 8421230090
- UPC Code: 742330044643
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AC DELCO | PF981 | |
| AMERICAN MOTORS CORPORATION | SFO4206 | |
| AMERICAN PARTS | 91604 | |
| AMERICAN PARTS | 92801 | |
| AMERICAN PARTS | 895 | |
| BIG A | 91604 | |
| BIG A | 92801 | |
| BIG A | 895 | |
| CASE/CASE IH | 684206C2 | |
| CASE/CASE IH | 684206C1 | |
| CASE/CASE IH | 684208C2 | |
| CATERPILLAR | 3I1293 | |
| CATERPILLAR | 9Y4478 | |
| CATERPILLAR | 3I1815 | |
| CHAMP | LFP4005SC | |
| CHARDONNET | 7255420600 | |
| COOPERS | LSF5023 | |
| DELUXE | 617 | |
| DELUXE | WD617 | |
| DRESSER | 684206C2 | |
| DRESSER | 684206C1 | |
| EXMAN | SFO4206 | |
| FREIGHTLINER | DNP554206 | |
| FURUKAWA | 684206C2 | |
| GUARDIAN | G051801 | |
| INTERNATIONAL | 684206C2 | |
| INTERNATIONAL | 684206C1 | |
| KOMATSU | 684206C1 | |
| KOMATSU | 684206C2 | |
| KRALINATOR | L206 | |
| PAYHAULER | 684206C1 | |
| PRO MATCH | 9Y4478 | |
| TECHNOCAR | R7015 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 688844 | |
| VMC | LF554206 | |
| WALGAHN-MOTORENTECHN | 00811416 | |
| WALGAHN-MOTORENTECHN | 811416 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| CASE/CASE IH 4568 | - | TRACTOR | - | CASE/CASE IH DVT800 | - |
| CASE/CASE IH 4586 | - | TRACTOR | - | CASE/CASE IH DVT800 | - |
| CASE/CASE IH 4786 | - | TRACTOR | - | CASE/CASE IH DVT800 | - |
| HITACHI EX16-2B | - | EXCAVATOR COMPACT | - | KUBOTA D1105 | - |
| HITACHI EX22-2 | - | EXCAVATOR COMPACT | - | KUBOTA D1105 | - |
| KOMATSU 560 | - | EARTH MOVING EQUIPMENT | - | CASE/CASE IH DT817C | - |
| KOMATSU 560 | - | EARTH MOVING EQUIPMENT | - | CASE/CASE IH DVT800 | - |
| KOMATSU D100 | - | EARTH MOVING EQUIPMENT | - | - D100 | - |
| KOMATSU H100 | - | LOADER WHEELED | - | - H100 | - |
| KOMATSU H100C | - | LOADER WHEELED | - | CASE/CASE IH DT817 | - |
| KOMATSU H90E | - | LOADER WHEELED | - | CASE/CASE IH DT573B | - |
| KOMATSU H90E | - | LOADER WHEELED | - | CASE/CASE IH DT573 | - |
| KOMATSU L100 | - | EARTH MOVING EQUIPMENT | - | - L100 | - |
| KOMATSU TD20C | - | LOADER TRACKED | - | - TD20C | - |
| KOMATSU TD20E | - | DOZER TRACKED | - | CASE/CASE IH DVT800 | - |
| KOMATSU TD25C | - | DOZER TRACKED | - | CASE/CASE IH DT817C | - |
| KOMATSU TD25E | - | DOZER TRACKED | - | CASE/CASE IH DT817C | - |
