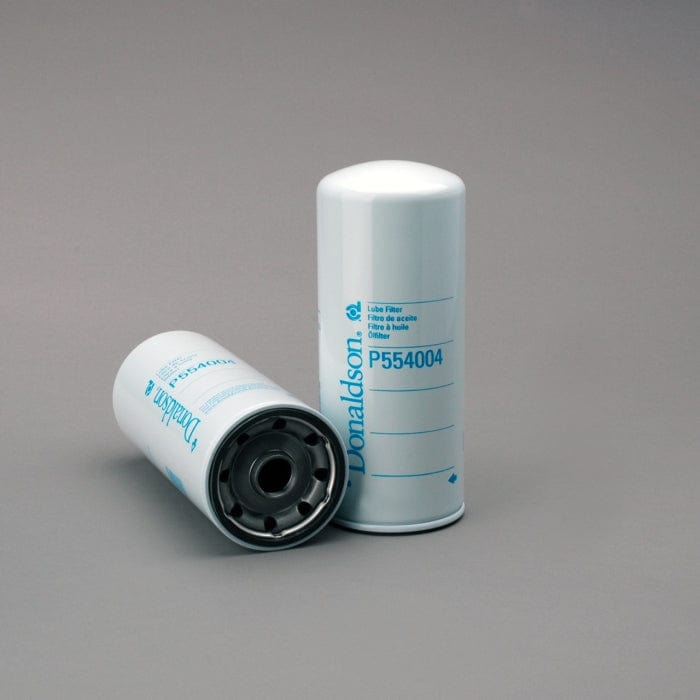

Lube Filter, Spin-On Full Flow - Donaldson P554004
Lube Filter, Spin-On Full Flow - Donaldson P554004
Regular price
£11.82
Regular price
Sale price
£11.82
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P554004
Lube Filter, Spin-On Full Flow| Outer Diameter | 4.25 inch (108 mm) |
| Thread Size | 1 1/8-16 UN |
| Length | 10.31 inch (262 mm) |
| Gasket OD | 3.90 inch (99 mm) |
| Gasket ID | 3.54 inch (90 mm) |
| Efficiency 99% | 40 micron |
| Efficiency Test Std | SAE J1858 |
| Media Type | Cellulose |
| Collapse Burst | 149 psi (10.3 bar) |
| Type | Full-Flow |
| Style | Spin-On |
| Primary Application | CAT 2P4004 Not for EURO5/6 engines after 01/2019 |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 108 mm (4.25 inch)
- Thread Size: 1 1/8-16 UN
- Length: 262 mm (10.31 inch)
- Gasket OD: 99 mm (3.90 inch)
- Gasket ID: 90 mm (3.54 inch)
- Efficiency 99%: 40 micron
- Efficiency Test Std: SAE J1858
- Media Type: Cellulose
- Collapse Burst: 10.3 bar (149 psi)
- Type: Full-Flow
- Style: Spin-On
- Primary Application: CAT 2P4004 Not for EURO5/6 engines after 01/2019
Packaged Dimensions
- Packaged Length: 0.110 m (4.40 inch)
- Packaged Width: 0.110 m (4.40 inch)
- Packaged Height: 0.266 m (10.65 inch)
- Packaged Weight: 1.180 kg (2.60 lb)
- Packaged Volume: 0.003 m3 (0.11 ft3)
Other Information
- Country of Origin: Poland
- NMFC Code: 069095-02
- HTS Code: 8421230090
- UPC Code: 742330044506
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AC DELCO | PF1223 | |
| AC DELCO | 06857 | |
| AC DELCO | PF857 | |
| AC DELCO | PF1080 | |
| AGCO | 74036791 | |
| ALCO | SP882 | |
| ALLIS-CHALMERS | 40367914 | |
| ALLIS-CHALMERS | 4036791 | |
| ALLIS-CHALMERS | 74036791 | |
| AMERICAN PARTS | 873 | |
| ATLAS COPCO | 9772040090 | |
| ATLAS COPCO | 2914809800 | |
| BERGERAT MONNOYEUR | E6738 | |
| BIG A | 92788 | |
| BLOUNT | 538322 | |
| BOSCH-REXROTH | 0451403077 | |
| BOSCH-REXROTH | F026407043 | |
| CAMECO | 60013807 | |
| CASE/CASE IH | 2836 | |
| CASE/CASE IH | W1250599 | |
| CASE/CASE IH | 60507493 | |
| CATERPILLAR | IR0658 | |
| CATERPILLAR | 5P1119 | |
| CATERPILLAR | 1R0658 | |
| CATERPILLAR | 81521036 | |
| CATERPILLAR | 3I1283 | |
| CATERPILLAR | 3Y900 | |
| CATERPILLAR | 3Y900X | |
| CATERPILLAR | 2Y8096 | |
| CATERPILLAR | 3Y0900 | |
| CATERPILLAR | 3Y0900X | |
| CATERPILLAR | 2P4004 | |
| CATERPILLAR | 1R0739 | |
| CATERPILLAR | 1W3300 | |
| CHAMP | LFP3191 | |
| CHAMP | PH3191 | |
| CHARDONNET | 7255400400 | |
| CHINA LOCAL | JX1023A | |
| CLAAS | 3600140 | |
| CLEAN | DO300 | |
| COMPAIR | 98246504801 | |
| COMPAIR | 9824650480001 | |
| COOP | P481 | |
| COOPERS | AZL083 | |
| COOPERS | LSF5106 | |
| CROSLAND | 9309 | |
| CROSLAND | 9361 | |
| CROSLAND | 2003 | |
| DAF TRP | 1533833 | |
| DOGUS | Y1018 | |
| DONGFENG | D1700202 | |
| ECOLOG | 6003724 | |
| EIMCO | 69002782 | |
| ERF (E.R.F.) | GH27096 | |
| EUCLID | 4666343 | |
| FAMEL | F40 | |
| FAMEL | F27 | |
| FAW | 2S101201053DM | |
| FIAAM | FT4878 | |
| FIAT | 74036791 | |
| FIAT | 704036791 | |
| FIAT | 4036791 | |
| FIAT | 40367914 | |
| FIL | ZP531 | |
| FILITRONIC | A219Y | |
| FILT | FF516EC | |
| FILT | FF517EC | |
| FISPA | FOE190 | |
| FMC | 3A11555 | |
| FODEN | Y05008003 | |
| FODEN | Y03725604 | |
| FODEN | Y03720110 | |
| FODEN | Y03601712 | |
| FODEN | Y03061712 | |
| FORD | 9576P554004 | |
| FOTON | D1700202 | |
| FREIGHTLINER | DNP554004 | |
| GIESSE | CLH465 | |
| GIF | GL312 | |
| GIF | GL316D | |
| GREYFRIARS | 9004S | |
| GREYFRIARS | 953S | |
| GREYFRIARS | 9080S | |
| GROVE | 9414100547 | |
| GT PIECES ET SERVICES | 2240016 | |
| GUARDIAN | G051791 | |
| GUD | Z182 | |
| GUIOT | GH4900 | |
| HAVAM | HD0350 | |
| HITACHI | 78826586 | |
| HITACHI | 71901604 | |
| HITACHI | 74667338 | |
| HITACHI | 74667339 | |
| HITACHI | 74663338 | |
| HITACHI | 74667755 | |
| IMPERIAL | 04LF667 | |
| INGERSOLL RAND | 51914331 | |
| INGERSOLL RAND | 38480844 | |
| INGERSOLL RAND | 92658095 | |
| INGERSOLL RAND | 35310556 | |
| JOY | 5276314 | |
| KALMAR | 9216910001 | |
| KENWORTH | KW667 | |
| KNECHT | AW92 | |
| KORODY COLYER | FB76 | |
| KRALINATOR | L177U | |
| KRALINATOR | L177 | |
| KRALINATOR | KL177 | |
| LENZ | CP103230 | |
| LEYLAND-DAF (LDV) | GRH27096 | |
| LEYLAND-DAF (LDV) | ABU8784 | |
| LINDE | 3562227706 | |
| LIUGONG | ME100139 | |
| LIUGONG | SP101651 | |
| LIUGONG | SP101464 | |
| LIUGONG | D1700202B | |
| LOCKHEED | LK97403 | |
| LOCKHEED | AP77401A | |
| LOESING | 25020 | |
| MACK | 485GB4348 | |
| MASTE | DK101 | |
| MENGELE | 98041802 | |
| MI-JACK | 23160162 | |
| MISFAT | 12314400 | |
| NISSAN/UD TRUCKS | 1527499626 | |
| ORENSTEIN & KOPPEL | 8000239 | |
| ORENSTEIN & KOPPEL | 103847 | |
| OSHKOSH | 6HD52 | |
| P.B.R. | BC1083 | |
| PERMATIC | FH139V | |
| POCLAIN | W1250599 | |
| PONSSE | 0067406 | |
| PONSSE | 67406 | |
| POSTAS | AF1219 | |
| POSTAS | SP424 | |
| PURFLUX | LS778 | |
| PURFLUX | LS841 | |
| QUAKER STATE | QS49A | |
| RENAULT VI | 6005019774 | |
| ROMAN | LUS4004 | |
| SANDVIK | 69002782 | |
| SAVARA | 92818017 | |
| SDMO | 330560321 | |
| SHANGHAI DIESEL | D1700202 | |
| SOPARIS | CV513 | |
| SOPARIS | CF513 | |
| STEIGER | 28036 | |
| TAMROCK | 69002782 | |
| TAYLOR | 5597099 | |
| TECHNOCAR | R90 | |
| TEREX | 8000239 | |
| TEREX | 103847 | |
| TEXACO | HDO1 | |
| TRANE | 2706066026 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 88804 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 688804 | |
| WALGAHN-MOTORENTECHN | 811406 | |
| WFZ | 9025540040 | |
| WHITE | 303498433 | |
| WIRTGEN | 1880 | |
| XGMA | D1700202 |
