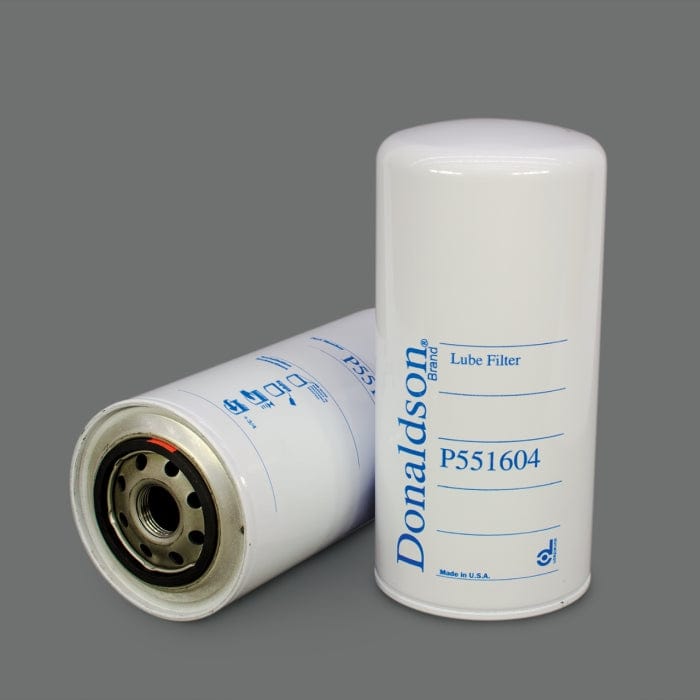

Lube Filter, Spin-On Full Flow - Donaldson P551604

Attributes

• Outer Diameter: 108 mm (4.25 inch)
• Thread Size: 1-12
• Length: 232 mm (9.13 inch)
• Gasket OD: 71 mm (2.80 inch)
• Gasket ID: 62 mm (2.44 inch)
• Efficiency 50%: 14 micron
• Efficiency Test Std: SAE J1858
• Anti-Drainback Valve: Yes
• Bypass Valve: Yes
• Bypass Valve Setting LR: 1.3 bar (19 psi)
• Bypass Valve Setting HR: 1.4 bar (20 psi)
• Media Type: Cellulose
• Collapse Burst: 6.9 bar (100 psi)
• Type: Full-Flow
• Style: Spin-On

Packaged Dimensions

• Packaged Length: 0.37 FT
• Packaged Width: 0.37 FT
• Packaged Height: 0.79 FT
• Packaged Weight: 1.067 kg (2.35 lb)
• Packaged Volume: 0.003 m3 (0.11 ft3)

Other Information

• Country of Origin: Colombia
• NMFC Code: 069100-06
• HTS Code: 8421230090
• UPC Code: 742330043844
