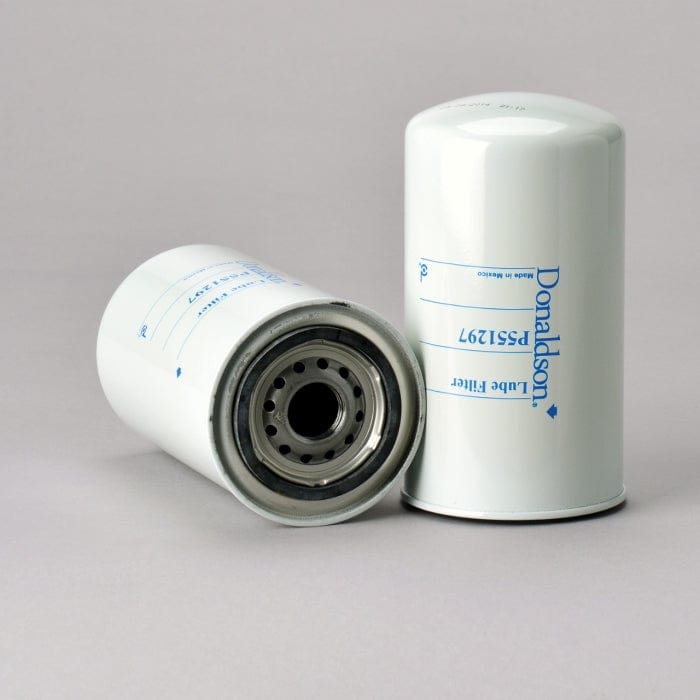

Lube Filter, Spin-On Full Flow - Donaldson P551297
Lube Filter, Spin-On Full Flow - Donaldson P551297
Regular price
£14.68
Regular price
Sale price
£14.68
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P551297
Lube Filter, Spin-On Full Flow| Outer Diameter | 3.66 inch (93 mm) |
| Thread Size | 1-12 UN |
| Length | 6.89 inch (175 mm) |
| Gasket OD | 2.83 inch (72 mm) |
| Gasket ID | 2.48 inch (63 mm) |
| Efficiency 99% | 45 micron |
| Anti-Drainback Valve | Yes |
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 19 psi (1.3 bar) |
| Bypass Valve Setting HR | 22 psi (1.5 bar) |
| Collapse Burst | 100 psi (6.9 bar) |
| Type | Full-Flow |
| Style | Spin-On |
| Primary Application | KOMATSU 6002115213 |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 93 mm (3.66 inch)
- Thread Size: 1-12 UN
- Length: 175 mm (6.89 inch)
- Gasket OD: 72 mm (2.83 inch)
- Gasket ID: 63 mm (2.48 inch)
- Efficiency 99%: 45 micron
- Anti-Drainback Valve: Yes
- Bypass Valve: Yes
- Bypass Valve Setting LR: 1.3 bar (19 psi)
- Bypass Valve Setting HR: 1.5 bar (22 psi)
- Collapse Burst: 6.9 bar (100 psi)
- Type: Full-Flow
- Style: Spin-On
- Primary Application: KOMATSU 6002115213
Packaged Dimensions
- Packaged Length: 0.100 m (4.00 inch)
- Packaged Width: 0.098 m (3.90 inch)
- Packaged Height: 0.190 m (7.60 inch)
- Packaged Weight: 0.620 kg (1.37 lb)
- Packaged Volume: 0.002 m3 (0.07 ft3)
Other Information
- Country of Origin: Mexico
- NMFC Code: 069100-06
- HTS Code: 8421230090
- UPC Code: 742330086469
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AC DELCO | PF1130 | |
| BOSCH-REXROTH | 0451203227 | |
| BUHLER VERSATILE | 86029164 | |
| CASE/CASE IH | 1931172 | |
| KOMATSU | 6002115213 | |
| KOMATSU | 6002115214 | |
| NEW HOLLAND | 86980031 | |
| NEW HOLLAND | L81879134 | |
| NEW HOLLAND | 81878046 | |
| NKK | 4M110 | |
| ORENSTEIN & KOPPEL | 103932 | |
| TEREX | 103932 | |
| VMC | LF551297 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| CASE/CASE IH MXM120 | - | TRACTOR | MXM SERIES | - MXM120 | - |
| KOMATSU 505 | - | LOADER WHEELED | - | KOMATSU 4D105 | - |
| KOMATSU D45P-1 | - | DOZER TRACKED | - | KOMATSU S4D105-1C | - |
| KOMATSU D45P-1 | - | DOZER TRACKED | - | KOMATSU S4D105-2C | - |
| NEW HOLLAND 100 | - | TRACTOR | - | IVECO 8045.25 | - |
| NEW HOLLAND 110 | - | TRACTOR | - | - 110 | - |
| NEW HOLLAND 115 | - | TRACTOR | - | - 115 | - |
| NEW HOLLAND G240 | - | TRACTOR | - | - G240 | - |
