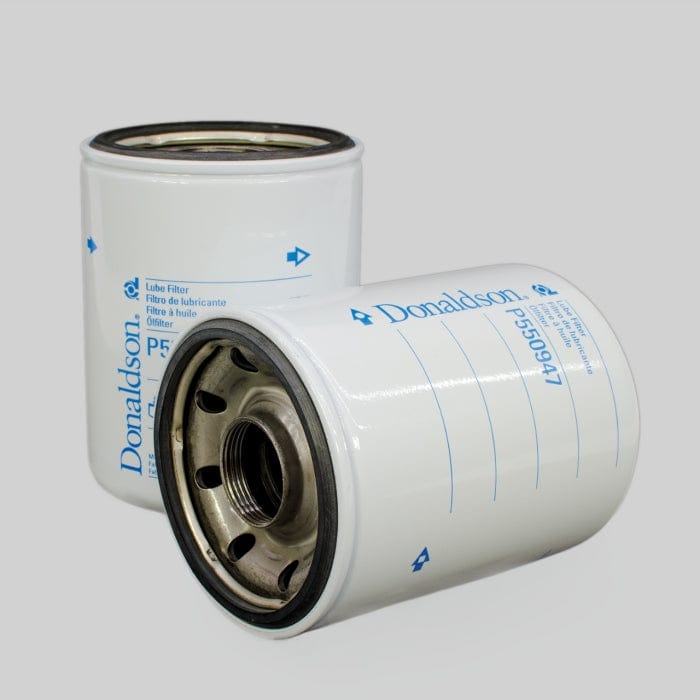

Lube Filter, Spin-On Full Flow - Donaldson P550947
Lube Filter, Spin-On Full Flow - Donaldson P550947
Regular price
£21.36
Regular price
Sale price
£21.36
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P550947
Lube Filter, Spin-On Full Flow| Outer Diameter | 4.69 inch (119 mm) |
| Thread Size | 1 1/2-12 UN |
| Length | 6.30 inch (160 mm) |
| Gasket OD | 4.33 inch (110 mm) |
| Gasket ID | 3.86 inch (98 mm) |
| Efficiency 99% | 21 micron |
| Efficiency Test Std | SAE J1858 |
| Media Type | Cellulose |
| Collapse Burst | 149 psi (10.3 bar) |
| Type | Full-Flow |
| Style | Spin-On |
| Primary Application | DETROIT DIESEL 25011106 |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 119 mm (4.69 inch)
- Thread Size: 1 1/2-12 UN
- Length: 160 mm (6.30 inch)
- Gasket OD: 110 mm (4.33 inch)
- Gasket ID: 98 mm (3.86 inch)
- Efficiency 99%: 21 micron
- Efficiency Test Std: SAE J1858
- Media Type: Cellulose
- Collapse Burst: 10.3 bar (149 psi)
- Type: Full-Flow
- Style: Spin-On
- Primary Application: DETROIT DIESEL 25011106
Packaged Dimensions
- Packaged Length: 0.114 m (4.56 inch)
- Packaged Width: 0.114 m (4.56 inch)
- Packaged Height: 0.153 m (6.12 inch)
- Packaged Weight: 0.984 kg (2.17 lb)
- Packaged Volume: 0.002 m3 (0.07 ft3)
Other Information
- Country of Origin: Poland
- NMFC Code: 069095-02
- HTS Code: 8421230090
- UPC Code: 742330043424
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AC DELCO | 95631283 | |
| AC DELCO | PF947 | |
| AC DELCO | PF947L | |
| AMERICAN MOTORS CORPORATION | SFO0947 | |
| AMERICAN MOTORS CORPORATION | HO634 | |
| AMERICAN PARTS | 2175 | |
| AMERICAN PARTS | 92810 | |
| ASAHI | HO634 | |
| ASAHI | 634K | |
| BIG A | 2175 | |
| BIG A | 92810 | |
| BIG A | 91810 | |
| BLOUNT | 538233 | |
| CATERPILLAR | 9Y4473 | |
| CATERPILLAR | 3I0740 | |
| CATERPILLAR | 3I1223 | |
| CHAMPION ROAD | 27851 | |
| CLARK | 1992247 | |
| CLARK,J.L. | 1992247 | |
| COOPERS | LSF5051 | |
| DEMAG | 23518667 | |
| DETROIT DIESEL | 23518667 | |
| DETROIT DIESEL | 25011106 | |
| DETROIT DIESEL | 25014214 | |
| DETROIT DIESEL | 23530409 | |
| DETROIT DIESEL | 23518525 | |
| EIMCO | D2NP550947 | |
| EXMAN | SFO0947 | |
| EXMAN | HO634 | |
| EXXEL PTY LTD | 14640029 | |
| EXXEL PTY LTD | 14640040 | |
| FIAT | 74508845 | |
| FLO-LINE NO. | PL3333SC | |
| FMC | 3A11544 | |
| FORD | 9576P550947 | |
| FRANKLIN | 1505770 | |
| FREIGHTLINER | DNP550947 | |
| GMC | 25010856 | |
| GMC | 25010855 | |
| GMC | 25010854 | |
| HINO | 156071750A | |
| HINO | 156071780 | |
| HINO | 156071750 | |
| HINO | 156071840 | |
| HINO | 156071841 | |
| HINO | 156071590 | |
| HINO | 156071670 | |
| HINO | 156071671 | |
| HINO | S156071841 | |
| INGERSOLL RAND | 59651257 | |
| KORODY COLYER | FB105 | |
| KRALINATOR | L212 | |
| KRALINATOR | L212U | |
| LIEBHERR | 6427114 | |
| LINK BELT | 3A11544 | |
| PETTIBONE | TJ841127400 | |
| PRO MATCH | 9Y4465 | |
| STEWART & STEVENSON | 136281 | |
| TIM | 9Y4473 | |
| TIMBERJACK | 8411274 | |
| TIMBERJACK | 841127400 | |
| TIMBERJACK | 411274 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 688616 | |
| VERMEER | 67634001 | |
| VMC | LF550947 | |
| WARNER & SWASEY | 83471255DIE |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| AG CHEM EQUIPMENT 3004 | - | SPRAYER | GO-GATOR | CUMMINS V504 | - |
| CLARK 45C | - | LOADER WHEELED | - | DETROIT DIESEL 3-53T | - |
| CLARK 55C | - | LOADER WHEELED | - | DETROIT DIESEL 4-53N | - |
| DETROIT DIESEL 2-53 | - | ENGINE | - | - 2-53 | - |
| DETROIT DIESEL 3-53 | - | ENGINE | - | - 3-53 | - |
| DYNAPAC CC42A | - | COMPACTOR | - | - CC42A | - |
| FRANKLIN 132 | - | SKID STEER LOADER | - | DETROIT DIESEL 3-53 | - |
| FRANKLIN C5D | - | FORESTRY EQUIPMENT | - | DETROIT DIESEL 3-53 | - |
| GRADALL G3R | - | EXCAVATOR WHEELED | - | DETROIT DIESEL 3-53 | - |
| GRADALL G3W | - | EXCAVATOR WHEELED | - | DETROIT DIESEL 3-53 | - |
| HINO 1415 | - | TRUCK | - | HINO W04C-TH | - |
| HINO 1715 | - | TRUCK | - | HINO W04C-TH | - |
| HINO BIRD OF PREY FC3W MERLIN | 1992 - 1998 | TRUCK | - | HINO W06E 6.14L | - |
| HINO BIRD OF PREY FD3W HAWK | 1991 - 1996 | TRUCK | - | HINO W06E 6.0L | - |
| HINO BIRD OF PREY FT3W KESTREL | 1991 - 1996 | TRUCK | - | HINO W06E 6.0L | - |
| HINO FA | - | TRUCK | - | - FA | - |
| HINO FA14 | - | TRUCK | - | HINO W04C-TD | - |
| HINO FA14 | - | TRUCK | - | HINO W04CT | - |
| HINO FA15 | - | TRUCK | - | HINO W04C-TI | - |
| HINO FB | - | TRUCK | - | - FB | - |
| HINO FB14 | - | TRUCK | - | HINO W04C-TD | - |
| HINO FB14 | - | TRUCK | - | HINO W04CT | - |
| HINO FD164LA | - | TRUCK | - | HINO W06E | - |
| HINO FD166LA | - | TRUCK | - | HINO W06E | - |
| HINO FG172LD | 1988 | TRUCK | - | HINO H07C | - |
| HINO FG173LD | 1988 | TRUCK | - | HINO H07C | - |
| HINO FG175LA | 1988 | TRUCK | - | HINO H07C | - |
| HINO FG177LA | 1988 | TRUCK | - | HINO H07C | - |
| HINO FT163LA | - | TRUCK | - | HINO W06E | - |
| HINO FT165LA | - | TRUCK | - | HINO W06E | - |
| HINO GD164LA | - | TRUCK | - | HINO W06E | - |
| HINO GD166 | - | TRUCK | - | HINO W06E | - |
| HINO GD166LA | - | TRUCK | - | - GD166LA | - |
| HINO GT173MA | 1987 | TRUCK | - | HINO H07C | - |
| HINO GT175MA | 1987 | TRUCK | - | HINO H07C | - |
| HINO GT175MF | - | TRUCK | - | - GT175MF | - |
| HINO LA | - | TRUCK | - | HINO W06E | - |
| HINO RANGER 4 FB4J | 1999 - 2003 | TRUCK | - | HINO 5.3L J05C | - |
| HINO RANGER 5 FC3J | 1996 - 2002 | TRUCK | - | HINO 6.64L J07C | - |
| HINO W04CTH | - | ENGINE | - | - W04CTH | - |
| HYSTER C612B | - | COMPACTOR | - | - C612B | - |
| HYSTER K360B | - | CRANE | - | DETROIT DIESEL 4-53 | - |
| INGERSOLL RAND DA-40 | - | COMPACTOR | - | DETROIT DIESEL 3-53T | - |
| INGERSOLL RAND DA-41 | - | COMPACTOR | - | DETROIT DIESEL 3-53T | - |
| INGERSOLL RAND DA-48 | - | COMPACTOR | - | DETROIT DIESEL 3-53T | - |
| INGERSOLL RAND MW-250 | - | PAVER | - | - MW-250 | - |
| INGERSOLL RAND SP-48 | - | COMPACTOR | - | DETROIT DIESEL 3-53 | - |
| INGERSOLL RAND SP-56 | - | COMPACTOR | - | DETROIT DIESEL 3-53 | - |
| INGERSOLL RAND SPF-48B | - | COMPACTOR | - | - SPF-48B | - |
| KING LONG XMQ6730 | - | BUS | - | HINO W04D | - |
| KING LONG XMQ6732 | - | BUS | - | HINO W04D | - |
| TEREX 33-14 | - | HAUL TRUCK | - | DETROIT DIESEL 12V-149 | - |
| TIMBERJACK 230 | - | FORWARDER | - | - 230 | - |
| TIMBERJACK 239 | - | SKIDDER | - | DETROIT DIESEL 3-53T | - |
| TIMBERJACK 30 | - | FELLER BUNCHER | - | - 30 | - |
| TIMBERJACK 350 | - | SKIDDER | - | - 350 | - |
| TIMBERJACK 350 | - | SKIDDER | - | DETROIT DIESEL 3-53 | - |
| TIMBERJACK 380 | - | SKIDDER | - | - 380 | - |
| VERMEER CC135 | - | CONCRETE CUTTER | - | DETROIT DIESEL 3-53T | - |
