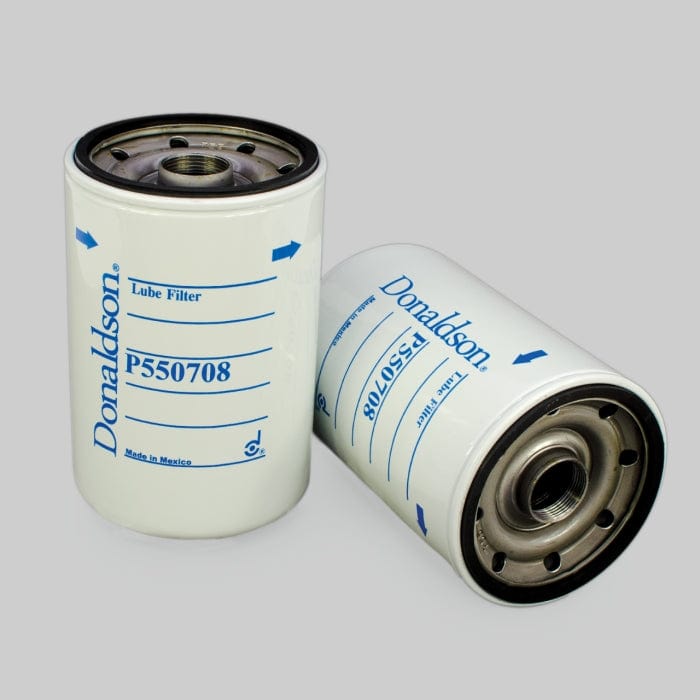

Lube Filter, Spin-On Full Flow - Donaldson P550708

Attributes

• Outer Diameter: 108 mm (4.25 inch)
• Thread Size: 1 1/8-16 UN
• Length: 167 mm (6.57 inch)
• Gasket OD: 100 mm (3.94 inch)
• Gasket ID: 91 mm (3.58 inch)
• Efficiency 99%: 45 micron
• Efficiency Test Std: ISO 4572
• Anti-Drainback Valve: Yes
• Bypass Valve: Yes
• Bypass Valve Setting LR: 1.9 bar (28 psi)
• Collapse Burst: 6.9 bar (100 psi)
• Type: Full-Flow
• Style: Spin-On
• Primary Application: KOMATSU 6134515120

Packaged Dimensions

• Packaged Length: 0.110 m (4.40 inch)
• Packaged Width: 0.108 m (4.30 inch)
• Packaged Height: 0.158 m (6.30 inch)
• Packaged Weight: 0.869 kg (1.92 lb)
• Packaged Volume: 0.002 m3 (0.07 ft3)

Other Information

• Country of Origin: Mexico
• NMFC Code: 069100-09
• HTS Code: 8421230090
• UPC Code: 742330043059
