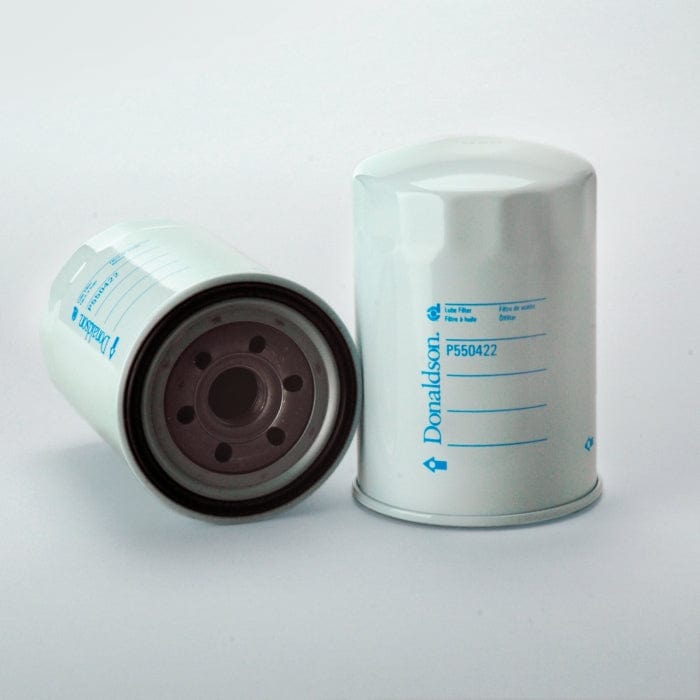

Lube Filter, Spin-On Full Flow - Donaldson P550422
Lube Filter, Spin-On Full Flow - Donaldson P550422
Regular price
Ā£14.70
Regular price
Sale price
Ā£14.70
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P550422
Lube Filter, Spin-On Full Flow| Outer Diameter | 4.02 inch (102 mm) |
| Thread Size | 1-12 |
| Length | 5.91 inch (150 mm) |
| Gasket OD | 3.94 inch (100 mm) |
| Gasket ID | 3.46 inch (88 mm) |
| Efficiency 99% | 40 micron |
| Efficiency Test Std | JIS D 1611 |
| Anti-Drainback Valve | Yes |
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 25 psi (1.7 bar) |
| Bypass Valve Setting HR | 30 psi (2.1 bar) |
| Media Type | Cellulose |
| Collapse Burst | 100 psi (6.9 bar) |
| Type | Full-Flow |
| Style | Spin-On |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 102 mm (4.02 inch)
- Thread Size: 1-12
- Length: 150 mm (5.91 inch)
- Gasket OD: 100 mm (3.94 inch)
- Gasket ID: 88 mm (3.46 inch)
- Efficiency 99%: 40 micron
- Efficiency Test Std: JIS D 1611
- Anti-Drainback Valve: Yes
- Bypass Valve: Yes
- Bypass Valve Setting LR: 1.7 bar (25 psi)
- Bypass Valve Setting HR: 2.1 bar (30 psi)
- Media Type: Cellulose
- Collapse Burst: 6.9 bar (100 psi)
- Type: Full-Flow
- Style: Spin-On
Packaged Dimensions
- Packaged Length: 0.118 m (4.70 inch)
- Packaged Width: 0.118 m (4.70 inch)
- Packaged Height: 0.160 m (6.40 inch)
- Packaged Weight: 0.910 kg (2.01 lb)
- Packaged Volume: 0.002 m3 (0.08 ft3)
Other Information
- Country of Origin: Indonesia
- NMFC Code: 069100-10
- HTS Code: 8421230090
- UPC Code: 742330107638
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AEC WHITLOCK | MO521 | |
| ALCO | SP924 | |
| AMERICAN MOTORS CORPORATION | MO516 | |
| ASAHI | MO521 | |
| BIG A | 92725 | |
| BIG A | 91411 | |
| COOPERS | LSF5147 | |
| CROSLAND | 2086 | |
| GREYFRIARS | 997S | |
| GREYFRIARS | 993S | |
| HITACHI | 76590662 | |
| HITACHI | 4183853 | |
| HITACHI | 4183753 | |
| HITACHI | 5873105040 | |
| HITACHI | L4183853 | |
| HITACHI | 4439863 | |
| HYSTER | 1368795 | |
| HYUNDAI | 32B4010100 | |
| HYUNDAI | XJAF00718 | |
| INTRUPA | 83496 | |
| ISUZU | 89444675011 | |
| ISUZU | 8941609641 | |
| ISUZU | 8944160690 | |
| ISUZU | 8943212191 | |
| ISUZU | 8943212190 | |
| JCB | 8943212190 | |
| JCB | KNH0324 | |
| JCB | 8944160690 | |
| JCB | 2800020 | |
| JCB | 02800020 | |
| KOBELCO | 2451V3091 | |
| KOBELCO | 2446R333D2 | |
| KOMATSU | TK130523802 | |
| KUBOTA | 8941609641 | |
| LINK BELT | KNH0324 | |
| MASSEY FERGUSON | 8943212191 | |
| MASSEY FERGUSON | 3728819M1 | |
| MASSEY FERGUSON | 130523802 | |
| MAZDA | SE2623802 | |
| MITSUBISHI | 32B4010100 | |
| NEW HOLLAND | 71457011 | |
| P.B.R. | BC1140 | |
| PERKINS | 130523802 | |
| PMC | 749 | |
| PMC | PE749 | |
| SUMITOMO | KNH0324 | |
| SYSTEMS MATERIAL HANDLING | CT32B4000100 | |
| TODD GT | 2240159 | |
| VMC | LF550422 | |
| WAKO | LO722K | |
| YALE | 901024829 | |
| YALE | 901095857 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| CASE/CASE IH 1500TX | - | DRILLING EQUIPMENT | - | - 1500TX | - |
| FURUKAWA FL-120-2 | - | LOADER | - | ISUZU 4BD1T | - |
| FURUKAWA FX-100-2 | - | EXCAVATOR | - | ISUZU 4BD1T | - |
| FURUKAWA FX-100M | - | EXCAVATOR | - | ISUZU 4BD1 | - |
| FURUKAWA FX-120 | - | EXCAVATOR | - | ISUZU 4BD1T | - |
| FURUKAWA FX-120-2 | - | EXCAVATOR | - | ISUZU 4BD1T | - |
| FURUKAWA FX-150 | - | EXCAVATOR | - | ISUZU 4BD1T | - |
| FURUKAWA FX-90 | - | EXCAVATOR | - | ISUZU 4BD1 | - |
| HITACHI EG40R | - | CARRIER TRACKED | - | - EG40R | - |
| HITACHI EX100 | - | EXCAVATOR TRACKED | - | ISUZU 4BD1 | - |
| HITACHI EX100-2 | - | EXCAVATOR TRACKED | - | ISUZU 4BD1 | - |
| HITACHI EX100-3 | - | EXCAVATOR TRACKED | - | ISUZU 4BD1 | - |
| HITACHI EX100-3 | - | EXCAVATOR TRACKED | - | ISUZU 4BG1 | - |
| HITACHI EX100-5 | - | EXCAVATOR TRACKED | - | ISUZU 4BG1 | - |
| HITACHI EX100M | - | EXCAVATOR TRACKED | - | ISUZU 4BD1 | - |
| HITACHI EX100M-2 | - | EXCAVATOR TRACKED | - | ISUZU 4BD1 | - |
| HITACHI EX100M-3 | - | EXCAVATOR TRACKED | - | ISUZU 4BD1 | - |
| HITACHI EX100M-5 | - | EXCAVATOR TRACKED | - | ISUZU 4BG1 | - |
| HITACHI EX100W-2 | - | EXCAVATOR TRACKED | - | ISUZU 4BD1T | - |
| HITACHI EX100WD-1 | - | EXCAVATOR TRACKED | - | ISUZU 6BB1 | - |
| HITACHI EX100WD-2 | - | EXCAVATOR TRACKED | - | ISUZU 4BD1T | - |
| HITACHI EX100WD-3 | - | EXCAVATOR TRACKED | - | ISUZU 4BD1T | - |
| HITACHI EX105 | - | EXCAVATOR TRACKED | - | - EX105 | - |
| HITACHI EX110-5 | - | EXCAVATOR TRACKED | - | ISUZU 4BG1 | - |
| HITACHI EX120 | - | EXCAVATOR TRACKED | - | ISUZU 4BD1T | - |
| HITACHI EX120-1 | - | EXCAVATOR TRACKED | - | ISUZU 4BD1 | - |
| HITACHI EX120-2 | - | EXCAVATOR TRACKED | - | ISUZU 4BD1 | - |
| HITACHI EX120-2 | - | EXCAVATOR TRACKED | - | ISUZU 4BD1T | - |
| HITACHI EX120-3 | - | EXCAVATOR TRACKED | - | ISUZU 4BD1 | - |
| HITACHI EX120-3 | - | EXCAVATOR TRACKED | - | ISUZU 4BD1T | - |
| HITACHI EX120-5 | - | EXCAVATOR TRACKED | - | ISUZU 4BG1T | - |
| HITACHI EX120-5 | - | EXCAVATOR TRACKED | - | ISUZU 4BG1 | - |
| HITACHI EX130 | - | EXCAVATOR TRACKED | - | ISUZU 4BG1T | - |
| HITACHI EX130-5 | - | EXCAVATOR TRACKED | - | ISUZU 4BG1T | - |
| HITACHI EX130H-5 | - | EXCAVATOR TRACKED | - | ISUZU 4BG1T | - |
| HITACHI EX135UR | - | EXCAVATOR TRACKED | EX SERIES | ISUZU 4BG1 | - |
| HITACHI EX135UR | - | EXCAVATOR TRACKED | - | ISUZU 4BG1T | - |
| HITACHI EX135US | - | EXCAVATOR TRACKED | - | - EX135US | - |
| HITACHI EX135USR | - | EXCAVATOR TRACKED | - | ISUZU 4BG1 | - |
| HITACHI EX150 | - | EXCAVATOR TRACKED | - | ISUZU 4BG1T | - |
| HITACHI EX150 | - | EXCAVATOR TRACKED | - | ISUZU 4BD1T | - |
| HITACHI EX150-1 | - | EXCAVATOR TRACKED | - | ISUZU 4BG1T | - |
| HITACHI EX150-5 | - | EXCAVATOR TRACKED | - | ISUZU 4BG1T | - |
| HITACHI EX150H-5 | - | EXCAVATOR TRACKED | - | ISUZU 4BG1T | - |
| HITACHI EX150LC-5 | - | EXCAVATOR TRACKED | - | - EX150LC-5 | - |
| HITACHI EX160-5 | - | EXCAVATOR TRACKED | - | ISUZU 4BG1 | - |
| HITACHI EX165 | - | EXCAVATOR TRACKED | EX SERIES | ISUZU 4BG1 | - |
| HITACHI EX90 | - | EXCAVATOR COMPACT | - | ISUZU 4BD1 | - |
| HITACHI EX90 | - | EXCAVATOR COMPACT | - | ISUZU 4BB1 | - |
| HITACHI EX90-1 | - | EXCAVATOR COMPACT | - | ISUZU 4BD1 | - |
| HITACHI HX220B | - | BOOM LIFT | - | ISUZU 4BG1 | - |
| HITACHI LX70 | - | LOADER WHEELED | - | ISUZU 4BD1T | - |
| HITACHI LX70 | - | LOADER WHEELED | - | ISUZU W04CT | - |
| HITACHI LX70 | - | LOADER WHEELED | - | ISUZU 4BD1 | - |
| HITACHI LX70-1 | - | LOADER WHEELED | - | ISUZU 4BD1 | - |
| HITACHI LX70-5 | - | LOADER WHEELED | - | ISUZU 4BG1T | - |
| HITACHI LX70-7 | - | LOADER WHEELED | - | ISUZU 4BG1T | - |
| HITACHI RT20S | - | COMPACTOR | - | - RT20S | - |
| HITACHI UH0357 | - | EXCAVATOR TRACKED | - | ISUZU 4BB1 | - |
| HITACHI UH04-3 | - | EXCAVATOR TRACKED | - | ISUZU 4BB1 | - |
| HITACHI UH04-5 | - | EXCAVATOR TRACKED | - | ISUZU 4BB1 | - |
| HITACHI UH04-7 | - | EXCAVATOR COMPACT | - | ISUZU 6BD1 | - |
| HITACHI UH04-7 | - | EXCAVATOR COMPACT | - | ISUZU 4BD1T | - |
| HITACHI UH04M-7 | - | EXCAVATOR COMPACT | - | ISUZU 6BD1 | - |
| HITACHI UH053 | - | EXCAVATOR TRACKED | - | ISUZU 4BD1 | - |
| ISUZU 4BG1 | - | ENGINE | - | - 4BG1 | - |
| ISUZU 4BG1T | - | ENGINE | - | - 4BG1T | - |
| ISUZU QD100T | - | ENGINE | - | - QD100T | - |
| JCB JS145W | - | SHOVEL | - | ISUZU 4BG1 | - |
| JCB JS160 | - | EXCAVATOR | - | ISUZU - | - |
| JCB JS160W | - | SHOVEL | - | ISUZU - | - |
| JCB JS175W | - | SHOVEL | - | ISUZU - | - |
| JCB JS210L | - | EXCAVATOR | - | ISUZU 6BG1 | - |
| KOBELCO 115SRDZ | - | EXCAVATOR TRACKED | - | - 115SRDZ | - |
| KOBELCO 200SRLC | - | EXCAVATOR | - | - 200SRLC | - |
| KOBELCO K904LC-2 | - | EXCAVATOR | - | ISUZU 4BD1 | - |
| KOBELCO LK450 | - | LOADER WHEELED | - | - LK450 | - |
| KOBELCO SK200SR | - | EXCAVATOR TRACKED | - | - SK200SR | - |
| KOBELCO SK200SRLC | - | EXCAVATOR TRACKED | - | - SK200SRLC | - |
| KOBELCO SK400SRLC | - | EXCAVATOR TRACKED | - | - SK400SRLC | - |
| KOMATSU FD20 | - | FORKLIFT | FG SERIES | ISUZU G207 | - |
| KUBOTA KH100 | - | EXCAVATOR COMPACT | KH SERIES | ISUZU 4BD1 | - |
| KUBOTA KH120 | - | EXCAVATOR COMPACT | KH SERIES | ISUZU 4BD1T | - |
| KUBOTA KH150 | - | EXCAVATOR COMPACT | KH SERIES | ISUZU 4BD1T | - |
| NEW HOLLAND E150 | - | EXCAVATOR TRACKED | E SERIES, BLADE RUNNER | MITSUBISHI DO4 FR | - |
| SAKAI GW750 | - | COMPACTOR | - | - GW750 | - |
| SAKAI SV400D | - | COMPACTOR | - | - SV400D | - |
| SAKAI SV400T | - | COMPACTOR | - | - SV400T | - |
| SAKAI SV400TB | - | COMPACTOR | - | - SV400TB | - |
| SAKAI SV400TF | - | COMPACTOR | - | - SV400TF | - |
| SAKAI SW800 | - | COMPACTOR | - | DEUTZ BF4M2012C | - |
| SUMITOMO 45W | - | EXCAVATOR | - | ISUZU 4BD1P | - |
| SUMITOMO SH120-3 | - | EXCAVATOR | - | ISUZU 4BG1T | - |
